Effect of short-term water deficit stress on antioxidative systems in cucumber seedling roots

Botanical StudiesAn International Journal201455:46

DOI: 10.1186/s40529-014-0046-6

Received: 18 March 2014

Accepted: 2 May 2014

Published: 23 May 2014

Abstract

Background

Cucumber is one of the most popular vegetables, and have little tolerance for water stress. The antioxidant defense system is one of major drought defense and adaptive mechanisms in plants, however, relatively few data are available regarding antioxidant systems in responses of cucumber to water deficit. The effect of short-term drought stress on the antioxidant system, lipid peroxidation and water content in cucumber seedlings roots was investigated.

Results

The results showed that polyethylene glycol (PEG) induced water stress markedly decreased water content of cucumber seedling roots after treatment of 36 h, and caused excessive generation of reactive oxygen species (ROS) including superoxide (O2.−), hydrogen peroxide (H2O2). Meanwhile, malondialdehyde (MDA) content increased. Antioxidant enzymes including superoxide dismutases (SOD), peroxidases (POD), catalase (CAT) and ascorbate peroxidase (APX) activities increased in different time and different extent under water stress, while ascorbate (AsA) and glutathione (GSH) content, glutathione reductase (GR), dehydroascorbate reductase (DHAR) and monodehydroascorbate reductase (MDHAR) activities all decreased when compared to control.

Conclusions

Therefore, it can be concluded that water stress strongly disrupted the normal metabolism of roots and restrained water absorption, and seemingly enzymatic system played more important roles in protecting cucumber seedling roots against oxidative damage than non-enzymatic system in short-term water deficit stress.

Keywords

Cucumis sativus Antioxidative enzymes Antioxidants Reactive oxygen species Drought stress

Background

Water deficit is a major environmental factor restricting plant growth, development and productivity, particularly in arid regions more than any other single environmental factor. It seems the worldwide losses in crop yields from water deficit probably exceed the cumulative loss of all other stresses (Kramer [1983]). Seasonal drought is becoming a severe challenge in agriculture production in the Yangtze River Basin in China. It usually happens from June to August when is critical time for most crops, even worse, it tends to come along with high temperature (Huang et al. [2013]). It is well known that drought stress impairs numerous metabolic and physiological processes in plants (Mahajan and Tuteja [2005]). Water stress results in significant declines in water potential and relative water content (RWC) and directly affects many aspects of plant physiology (Correia et al. [2006]). Drought could induce excessive generation of reactive oxygen species (ROS) including superoxide anion (O2.−), hydrogen peroxide (H2O2) and hydroxyl radical (HO), which could cause deterioration of membrane lipids, proteins and nucleic acids, leading to increased membrane leakage of solutes (Huang et al. [2013]; Shehab et al. [2010]). Thus, oxidative stress is one of the major causes of cellular damage in plants during stress (Miller et al. [2010]). However, to remove ROS and maintain redox homeostasis, plants have evolved a complex array of antioxidant defense systems to prevent oxidative injury resulting from high levels of ROS, which includes antioxidative enzymes superoxide dismutases (SOD), peroxidases (POD), catalase (CAT), glutathione reductase (GR) and ascorbate peroxidase (APX), dehydroascorbate reductase (DHAR), and monodehydroascorbate reductase (MDHAR) (Asada [2006]), low molecular mass antioxidants ascorbate (AsA), glutathione (GSH), and some compatible solutes such as betaines and proline (Foyer and Noctor [2005]; Veljovic-Jovanovic et al. [2006]). Previous studies have shown that drought tolerant cultivars generally have enhanced constitutive antioxidant enzyme activity under drought stress in comparison with sensitive cultivars (Sun et al. [2013]). Maintaining a higher level of antioxidative enzyme activities may contribute to drought induction by increasing the capacity against oxidative damage (Sharma and Dubey [2005]).

Cucumber is one of the most popular vegetables, and it is considered a shallow-rooted crop and has been reported to have little tolerance for water stress. The antioxidant defense system is one of major drought defense and adaptive mechanisms in plants (An and Liang [2013]). To the best of our knowledge, however, relatively few data are available regarding antioxidant systems in responses of cucumber to water deficit. Therefore, in the present study, we investigated the effect of water deficit on antioxidant systems of cucumber seedlings.

Methods

Plant material and treatments

The experiments were carried out in the environment-controlled greenhouse. Cucumber (Cucumis sativus L., cv. Jinyou No. 1) seeds were placed in sterile Petri plates on filter paper moistened with distilled water. They were allowed to germinate in the dark in a thermostatically-controlled chamber at 29 ± 1°C for approximately 30 h. The germinated seeds were sown in 50 cells plug trays containing peat moss and perlite (1:1, v/v) at 1200 μmol m−2 s−1 photosynthetic photo flux density and 14/10 h (25–30/16–20°C) day/night regime. Relative humidity fluctuated between 60 and 75%. At the two-leaf stage, seedlings were removed from the plastic plates, and the roots were rinsed with distilled water. Uniformly sized healthy seedlings were selected and transferred into troughs (40 × 30 × 13 cm) filled with 10 L of full-strength Hoagland’s nutrient solution, which was aerated for 40 min each hour. After pre-culturing for 3 d, the seedlings were treated with the following methods: (1) control [CK (full-strength Hoagland’s nutrient solution)]; (2) 5% polyethylene glycol 6000 (PEG) treatment [5% PEG (full-strength Hoagland’s nutrient solution containing 5% PEG)]; (3) 10% PEG treatment [10% PEG (full-strength Hoagland’s nutrient solution containing 10% PEG)]; each treatment has nine containers, and each container includes 6 plants, providing a total of 54 plants per treatment. Root samples of CK and 10% PEG treatment were harvested in triplicate at 0, 12, 24 and 36 h after the treatment initiation and immediately frozen in liquid nitrogen, and stored at −80°C for the subsequent analyses. After 36 h of treatment, plant roots per treatment were collected for the determination of water content (WC).

Determination of WC of root

Roots of cucumber seedlings were washed with tap water two to three times, rinsed twice with distilled water, gently blotted dry with a paper towel, and weighed for fresh weight. Oven dried at 70°C to constant dry weight. WC of roots was calculated according to the formula WC = [(Fresh weight-dry weight)/ Fresh weight] × 100%.

Enzyme extraction and assays

For the enzyme assays, 0.3 g roots were ground with 2 mL ice-cold 25 mM HEPES buffer (pH 7.8) containing 0.2 mM EDTA, 2 mM ascorbate and 2% PVP. The homogenates were centrifuged at 4°C for 20 min at 12,000 × g and the supernatant was used for enzyme activity assay. All steps in the preparation of the enzyme extract were carried out at 4°C. SOD activity assay was based on the method described by Giannopotitis and Ries ([1977]). POD activity was measured using modification of the procedure of Egley et al. ([1983]) , the reaction mixture in a total volume of 2 mL contained 25 mM (pH 7.0) sodium phosphate buffer, 0.1 mM EDTA, 0.05% guaiacol (2-ethoxyphenol), 1.0 mM H2O2 and 100 μL enzymes extract. The increase of absorbance due to oxidation of guaiacol was measured at 470 nm. APX activity was determined according to Nakano and Asada ([1981]). CAT activity was done according to Cakmak and Marschner ([1992]). GR activity was measured as a decrease in A340 due to oxidation of NADPH according to Foyer and Halliwell ([1976]). MDHAR activity was determined following Hossain et al. ([1984]) with slight modification. The reaction mixture contained 50 mM of Tris–HCl buffer (pH 7.5), 1 mM of NADH, 5 mM of ascorbic acid, 0.15 U of ascorbate oxidase and 30 μL of enzymes extract. The activity was calculated from the change in absorbance at A340 for 2 min when the extinction coefficient was 6.2 mM−1 cm−1. DHAR activity was determined following Nakano and Asada ([1981]) with some modifications. The reaction mixture contained 50 mM of KH2PO4 buffer (pH 7.0), 50 mM of GSH, 10 mM of DHA and 50 μL of enzyme extract. The activity was calculated from the change in absorbance at A265 for 2 min when the extinction coefficient was 14 mM−1 cm−1.

Determination of free radical production

The O2.− production rate was measured according to Elstner and Heupel ([1976]) by monitoring the nitrite formation from hydroxylamine in the presence of O2.−, with some modifications. One g root segments was homogenized with 3 mL of 65 mM phosphate buffer (pH 7.8), 0.1 mL of 10 mM hydroxylamine hydrochloride, and 1 mL supernatant. After incubation at 25°C for 20 min, ethyl ether in the same volume was added and centrifuged at 1,500 × g for 5 min. A standard curve with NO2 was used to calculate the production rate of O2.− from the chemical reaction of O2.− and hydroxylamine. H2O2 content was measured by the titanium method (Patterson et al. [1984]). MDA content was measured by the thiobarbituric acid reaction method (Heath and Packer [1968]).

Assay of antioxidants

AsA content was measured in extracts according to the method of Jiang and Zhang ([2001]). GSH content was determined as described by Griffith ([1980]).

Statistical analysis

All data presented are the mean values. All experiments were conducted using three replicates at least. All data were statistically analyzed by the analysis of variance (ANOVA) with SAS software (SAS Institute, Cary, United States) using Duncan’s multiple range test at the 0.05 level of significance.

Results and discussions

Water state and oxidative free radical production in the roots of cucumber seedlings subjected to a short term water stress

Drought stress reduces leaf size, stem extension and root proliferation, disturbs plant water relations and reduces water-use efficiency (Farooq et al. [2009]). In the present investigation, leaves of cucumber showed severely wilted appearance after 36 h under PEG treatment, and WC of roots was decreased dramatically (Figure 1).
https://static-content.springer.com/image/art%3A10.1186%2Fs40529-014-0046-6/MediaObjects/40529_2014_Article_46_Fig1_HTML.jpg

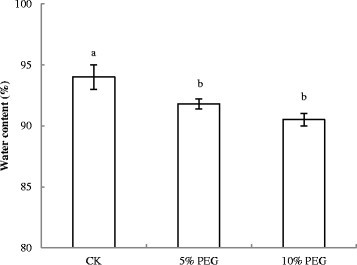

Figure 1

Effect of water deficit stress on water content (WC) (%) of cucumber seedling roots. CK- control; 5% PEG- 5% polyethylene glycol 6000 (PEG) treatment; 10% PEG- 10% polyethylene glycol 6000 (PEG) treatment. Values represent the mean ± SE (n = 6). Letters indicate significant differences at P < 5% according to Duncan’s multiple range tests

Generation of ROS are common events during drought (Farooq et al. [2009]). Among ROS, H2O2, as a more stable ROS, can diffuse across biological membranes and severely damages plant metabolism under stress conditions (Ashraf [2009]). Here, the production rate of O2.− and H2O2 content both increased in the cucumber roots under water stress, especially after 36 h (Figure 2A and B). Membrane injury is a consequence of lipid peroxidation. Increasing MDA content is a good reflection of oxidative damage to membrane lipids. In drought-stressed plants, the MDA content increased, and was significantly higher than in the non-drought controls after 24 or 36 h (Figure 2C), indicating that the membrane was damaged by ROS and pronounced cell membrane peroxidation occurred under PEG-induced stress.
https://static-content.springer.com/image/art%3A10.1186%2Fs40529-014-0046-6/MediaObjects/40529_2014_Article_46_Fig2_HTML.jpg
Figure 2

Effect of water deficit stress on free radical production and MDA content of cucumber seedling roots. A- O2.− production rate; B- H2O2 content; C- MDA content; CK- control; 10% PEG- 10% polyethylene glycol 6000 (PEG) treatment. Values represent the mean ± SE (n = 3). Letters indicate significant differences at P < 5% according to Duncan’s multiple range tests

The enzymatic antioxidation system in cucumber seedling roots in responses to a short term water stress

Antioxidative enzymes like SOD, POD and CAT play a significant role in conferring drought tolerance (Hameed et al. [2013]). In this study, compared with control, SOD activity increased markedly in cucumber seedling roots exposed to water stress at 12 h. An increase in SOD activity, which is commonly taken as an indicator of an increased ROS level. However, SOD activity was lower than the control after 24 h or 36 h and significant difference was found at 24 h of treatment (Figure 3A). The POD, CAT and APX activities exhibited increasing trends in response to drought stress (Figure 3B-3D). It is well known that APX and GR are the key enzymes participating in scavenging H2O2 within a cell via the Asada-Halliwell pathway (Foyer et al. [1994]). During the whole treatment period, the GR activity was lower than control under stress and there was apparent difference between water stress and control at 24 h, but thereafter no prominent decrease was observed after 36 h (Figure 3E). The promotion of antioxidant activity is probably a defense response. Nevertheless, as shown here and by others (Lee et al. [2009]), these enzymes usually did not match the increasing ROS production under severe drought stress.
https://static-content.springer.com/image/art%3A10.1186%2Fs40529-014-0046-6/MediaObjects/40529_2014_Article_46_Fig3_HTML.jpg
Figure 3

Effect of water deficit stress on enzyme activity of cucumber seedling roots. A- SOD activity; B- POD activity; C- CAT activity; D- APX activity; E- GR activity; F- DHAR activity; G- MDHAR activity; CK- control; 10% PEG- 10% polyethylene glycol 6000 (PEG) treatment. Values represent the mean ± SE (n = 3). Letters indicate significant differences at P < 5% according to Duncan’s multiple range tests.

Responses of the non-enzymatic antioxidation systems in cucumber seedling roots to a short term water stress

The AsA-GSH cycle is one of the important protection systems against ROS in different cell compartments. Water stress led to a decrease of MDHAR activity within 24 h of treatment, but after 36 h, MDHAR activity under water stress was apparently higher than the control. DHAR activity had the similar trend with MDHAR activity (Figure 3F and G). Meanwhile, ASA and GSH content decreased under water stress (Figure 4A and B), which was one of reasons of the ROS accumulation in roots. Niu et al. ([2013]) stated that the ASA - deficient vtc1 mutants of Arabidopsis thaliana was more sensitive to drought stress than the wild - type. The low intrinsic ASA of the vct1 mutant decreased enzymatic antioxidant defense systems under drought stress. GR activity decreased was accompanied by a lower GSH content, suggesting that predominantly GSH oxidation took place under water stress. Similarly, drought induced oxidative stress in rice anthers leading to a PCD and pollen abortion along with down-regulation of antioxidants has been reported (Nguyen et al. [2009]). The decrease in the ASA and GSH content can be connected with disturbances of ASA and GSH biosynthesis, such as the decrease of MDHAR and DHAR activities. It can also be related to their oxidation in ROS scavenging cycles.
https://static-content.springer.com/image/art%3A10.1186%2Fs40529-014-0046-6/MediaObjects/40529_2014_Article_46_Fig4_HTML.jpg
Figure 4

Effect of water deficit stress on antioxidants content of cucumber seedling roots. A- ASA content; B- GSH content; CK- control; 10% PEG- 10% polyethylene glycol 6000 (PEG) treatment. Values represent the mean ± SE (n = 3). Letters indicate significant differences at P < 5% according to Duncan’s multiple range tests.

Conclusion

In conclusion, the present results suggested that water deficit interrupted the ROS balance between generation and elimination in cucumber roots, which strongly disrupted the normal metabolism of roots and restrained the water absorption. Finally, plants become wilted and their stems did not stand upright. Interestingly, we also found that the enzymatic system (SOD, POD, CAT and APX), partially, enhanced the ROS-scavenging capacity to some extent in short-term water deficit stress, while non-enzymatic system (ASA and GSH) exhibited a relative decease of ROS-scavenging in this experiment. Seemingly it showed that the enzymatic system played more important roles in protecting cucumber seedling roots against oxidative damage than non-enzymatic system in short-term water deficit stress. However, extended studies are needed to understand a precise mechanism.

Authors’contributions

LD and XW performed these experiments. HFF and CXD designed the research, analyzed data and wrote the paper. All the authors read and approved the final manuscript.

Abbrevations

APX:

Ascorbate peroxidase:

AsA:

Ascorbic acid:

CAT:

Catalase:

DHAR:

Dehydroascorbate reductase:

GR:

Glutathione reductase:

GSH:

Reduced glutathione:

H2O2

Hydrogen peroxide:

MDA:

Malondialdehyde:

MDHAR:

Monodehydroascorbate reductase:

O2.−

Superoxide anion:

POD:

Peroxidase:

ROS:

Reactive oxygen species:

SOD:

Superoxide dismutase:

Declarations

Acknowledgements

This research was supported by the National Natural Science Foundation of China (No. 31101539; No. 31201658).
