Antioxidant responses and photosynthetic behaviors of Kappaphycus alvarezii and Kappaphycus striatum (Rhodophyta, Solieriaceae) during low temperature stress

Botanical StudiesAn International Journal201657:21

DOI: 10.1186/s40529-016-0136-8

Received: 7 May 2016

Accepted: 25 July 2016

Published: 10 August 2016

Abstract

Background

Kappaphycus are farmed in tropical countries as raw material for carrageenan, which is widely used in food industry. The sea area available for farming is one limiting factor in the production of seaweeds. Though cultivation is spreading into subtropical regions, the lower seawater temperature is an important problem encountered in subtropical regions for the farming of Kappaphycus. This research of physiological response to low temperature stress will be helpful for screening Kappaphycus strains for growth in a lower temperature environment.

Results

Responses of antioxidant systems and photosystem II (PSII) behaviors in Kappaphycus alvarezii and Kappaphycus striatum were evaluated during low temperature treatments (23, 20, 17 °C). Compared with the controls at 26 °C, the H2O2 concentrations increased in both species when the thalli were exposed to low temperatures (23, 20, 17 °C), but these increases were much greater in K. striatum than in K. alvarezii thalli, suggesting that K. striatum suffered more oxidative stress. The activities of some important antioxidant enzymes (e.g. superoxide dismutase and ascorbate peroxidase) and the hydroxyl free radical scavenging capacity were substantially higher at 23, 20 and 17 °C than at the control 26 °C in K. alvarezii, indicating that the antioxidant system of K. alvarezii enhanced its resistance to low temperature. However, no significant increases of antioxidant enzymes activities were observed at 20 and 17 °C in K. striatum. In addition, both the maximal efficiency of PSII photochemistry (FV/Fm) and the performance index (PIABS) decreased significantly in K. striatum at 23 °C, indicating that the photosynthetic apparatus was damaged at 23 °C. In contrast, no significant decreases of either FV/Fm or PIABS were observed in K. alvarezii at 23 °C.

Conclusions

It is concluded that K. alvarezii has greater tolerance to low temperature than K. striatum.

Keywords

Antioxidant systems Kappaphycus alvarezii, Kappaphycus striatum Low temperature stress Photosystem II

Background

Kappaphycus alvarezii and Kappaphycus striatum (Rhodophyta, Solieriaceae), two important carrageenophyte species, are used as the major commercial source of κ-carrageenan, which is widely utilized as a gelling and stabilizing agent for some food products, including frozen desserts, chocolate-flavoured milk, cottage cheese dressings and soyamilk (Doty 1973; Glenn and Doty 1990; Bixler et al. 2001; Bindu and Levine 2011). The farming of Kappaphycus occurs mainly in tropical southeast Asian countries (Ohno et al. 1994), such as the Philippines and Indonesia, serving as a means of livelihood for locals and as a source of revenue for the economy of these countries (Bindu 2011; Bixler and Porse 2011; Ganzon-Fortes et al. 2012). However, although the carrageenan processing technology in this industry is mature (Bixler et al. 2001), the supply of carrageenan is not adequate for the global demand. The sea area available for farming is one limiting factor in the production of seaweeds for carrageenan extraction. Currently, cultivation is spreading into subtropical regions (i.e. lower temperature regions for these seaweeds). For example, cultivation during the summer season was introduced in Shikoku Island, Southern Japan (Ohno et al. 1994). The lower seawater temperature is an important problem encountered in subtropical regions, or other low-temperature sea areas, for the farming of Kappaphycus.

Photosynthetic processes are exceedingly sensitive to low temperature (Allen and Ort 2001). When plants are exposed to low-temperature stress, photosynthetic enzymes may be degraded and photo-damage may occur, which would lead to decreased photosynthetic activity. The reduced photosynthesis may result in the accumulation of excess energy, which leads to the generation of numerous reactive oxygen species (ROS), such as hydrogen peroxide (H2O2) and hydroxyl free radical (·OH), which are harmful to the plant’s photosynthetic apparatus. Collén et al. (1994) found that Kappaphycus and Eucheuma exposed to abiotic or biotic stresses produced H2O2. The accumulation of H2O2 within plant tissues is thought to be a crucial event in initiating adequate antioxidant responses in plants (Gechev et al. 2003). In order to gain a better understanding of the antioxidant response of Kappaphycus under low temperature stress, we measured the activities of antioxidant enzymes [e.g. superoxide dismutase (SOD), catalase (CAT) and ascorbate peroxidase (APX)], hydroxyl free radical (·OH) scavenging capacity and the level of malondialdehyde (MDA), an important index of oxidative lesions (Barros et al. 2003), in K. alvarezii and K. striatum thalli under low temperature stress. Moreover, since PSII is the most sensitive part of the photosynthetic apparatus, changes of PSII state may indicate changes in physiological processes in plants (Lim et al. 2014). In recent years, the chlorophyll (Chl) a fluorescence transient (O-J-I-P) has become an important tool in photosynthesis research (Strasser et al. 2004; Strauss et al. 2007), and especially in studying PSII behaviors. The changes of the PSII antenna, the reaction centers, the oxidation–reduction of the plastoquinone (PQ) pool and the electron flow limitations on the acceptor side of PSII, can be reflected by the O-J-I-P transient modulation in higher plants and algae (Stirbet and Govindjee 2012). The effect of low temperature stress on PSII was further assessed in K. alvarezii and K. striatum thalli by means of the Chl a fluorescence transient.

Methods

Algal sample collection and pretreatment

Kappaphycus alvarezii (Rhodophyta, Solieriaceae) (reddish brown, Fig. 1a) and Kappaphycus striatum (Rhodophyta, Solieriaceae) (green, Fig. 1b) were harvested in Li’an bay, Hainan Province, China (18°24′N, 110°03′E) (Liu et al. 2009; Pang et al. 2015). Selected healthy thalli of both species were cleaned to remove sludge, miscellaneous algal contaminants and other impurities from the surface of thalli. The algal thalli were acclimatized in a plastic tank (50 × 40 × 40 cm) with 40 L of natural seawater (about 23–24 °C, salinity 33 ‰) collected in Li’an bay (18°24′N, 110°03′E) and irradiated with light (55 μmol photons m−2 s−1) in a 12:12 h light:dark (L:D) cycle. They were acclimatized to their new surroundings for a day in the tank before performing the following low temperatures treatments assay.
https://static-content.springer.com/image/art%3A10.1186%2Fs40529-016-0136-8/MediaObjects/40529_2016_136_Fig1_HTML.jpg
Fig. 1

The photos of K. alvarezii and K. striatum. a Kappaphycus alvarezii thalli; b Kappaphycus striatum thalli; c A photo of temperature treatments of K. alvarezii and K. striatum samples in the tank. Algal samples were irradiated at 55 μmol photons m−2 s−1. The sea water temperature in the tank was adjusted and maintained by an automatic temperature-control bar

Low temperature treatments

Portions of thalli approximately 3 mm in diameter and 1 cm long were cut from the apices of the collected algal thalli. The samples were taken from same parts of the thallus to avoid any difference between individuals. These were all placed in plastic tanks (50 × 40 × 40 cm) with 40 L of natural seawater (about 23–24 °C, salinity 33 ‰) collected in Li’an bay (18°24′N, 110°03′E) and irradiated with a fluorescent lamp at approximately 55 μmol photons m−2 s−1 (Fig. 1c). Sea temperature was adjusted and maintained by an automatic temperature control unit (Guangdong Zhenhua Electrical Appliance Co., LTD). The control temperature was 26 °C, which is the optimum temperature for these two species (Lideman et al. 2013). The samples of two species were exposed to the control temperature (26 °C) and low temperatures 23, 20 and 17 °C for 2 h, respectively. The temperature treatments of K. alvarezii and K. striatum samples were shown in Fig. 1c.

Crude extracts and antioxidant system parameters

After treatment at each temperature, algal samples of each species were immediately froze in liquid nitrogen, labeled and stored in a freezer at −80 °C for the following assay (Fariduddin et al. 2014).

The frozen samples (about 2 g) were ground in a mortar in liquid nitrogen and placed in 10-mL centrifuge tubes in ice. The algal powder was mixed with 3 mL of pre-cooled extraction buffer (50 mM phosphate buffer, pH 7.2, 0.1 mM EDTA) and homogenized using an S10 homogenizer (Ningbo Xinzhi Biotechnology Co., Ltd) in an ice-water bath (Nagarani and Kumaraguru 2012). Cell debris was removed by centrifugation at 12,000g for 10 min at 4 °C and the supernatant was used for the following measurements of antioxidant system parameters. Each temperature treatment had three repeats for each species.

The concentration of H2O2 in the algal thalli was assessed using a commercially available kit—Hydrogen Peroxide Assay kit (Nanjing Jiancheng Bioengineering Institute). H2O2 was bound with molybdenic acid to form a complex, which was measured spectrophotometrically at 405 nm and the concentration of H2O2 was then calculated (Liu et al. 2013).

Total SOD activity in algal thalli was determined by using a Total Superoxide Dismutase Assay kit (Nanjing Jiancheng Bioengineering Institute) based on measuring the enzyme’s ability to inhibit the photochemical reduction of tetrazolium blue. The developed blue color was measured spectrophotometrically at 550 nm (Das et al. 2000). CAT activity was quantified by the method of Malanga et al. (1999). The absorbance decay of H2O2 was monitored by spectrophotometry at 240 nm, with a molar extinction coefficient of ε = 39.4 mM−1 cm−1. APX activity was measured as described by Nakano and Asada (1981). Ascorbate consumption was monitored by spectrophotometry at 290 nm, with a molar extinction coefficient of ε = 2.8 mM−1 cm−1.

Hydroxyl free radical scavenging capacity (HFRSC) was determined by using a commercially available kit—Hydroxyl Free Radical Assay kit (Nanjing Jiancheng Bioengineering Institute) based on the deoxyribose degradation assay described by Halliwell et al. (2006).

To evaluate the extent of oxidative damage in algal cells under low temperature stress, the concentration of MDA, a marker of lipoperoxidation, was measured in the algal thalli by the method of Fraga et al. (1988).

Protein determination

Enzyme activities were expressed relative to protein concentrations, which were estimated by the method of Deng et al. (2013) using bovine serum albumin as standard. We employed the dying method of Coomassie brilliant blue G-250 to determine the protein concentration of algal samples, measuring the absorbency at the wavelength of 595 nm. Each temperature treatment had three repeats for each species.

Chlorophyll (Chl) a fluorescence transient measurement

Fast Chla fluorescence transients were measured with a Plant Efficiency Analyzer (Handy-PEA, Hansatech Instruments Ltd, UK). Each transient obtained from the samples was analyzed according to the JIP-test (Strasser 1978; Strasser et al. 2004; Stirbet and Govindjee 2012; Zhang et al. 2012a). Each temperature treatment had 10 repeats for each species.

The following variables were calculated directly or indirectly.
  1. 1.

    \(\upvarphi_{\text{Po}}\) (or FV/Fm), the maximum PSII photochemical efficiency, namely the maximum quantum yield of primary photochemistry. FV/Fm = \(\upvarphi_{\text{Po}}\) = TRO/ABS, where TRO and ABS denote the trapped and absorbed excitation energy fluxes, respectively.


  2. 2.

    ψo, the probability that a trapped exciton moved an electron into the electron transport chain beyond (plasto)quinone (Q A ). ψo = ETO/TRO, where ETO and TRO denote the electron transport and trapped excitation energy fluxes, respectively.


  3. 3.

    \(\upvarphi_{\text{Eo}}\), the probability that an absorbed photon moved an electron into the electron transport chain further than Q A , namely quantum yield of electron transport. \(\upvarphi_{\text{Eo}}\) = ETO/ABS.


  4. 4.

    PIABS, the performance index on an absorption basis. PIABS = (RC/ABS)·[\(\upvarphi_{\text{Po}}\)/(1 −\(\upvarphi_{\text{Po}}\))]·[ψo/(1 − ψo)], where RC/ABS, \(\upvarphi_{\text{Po}}\)/(1 − \(\upvarphi_{\text{Po}}\)) and ψo/(1 − ψo) reflect the efficiency of the reaction centers, the light energy absorption efficiency and the accepting efficiency of the electron acceptor, respectively.



Statistical analysis

Data are presented as mean ± SD for at least three replicate measurements (the number (n) of replicates is presented in each figure caption). To determine the statistical significance between experimental groups, the data were examined using a t test (p < 0.05).

Results

Changes in H2O2 concentrations in Kappaphycus alvarezii and Kappaphycus striatum thalli

The highest concentrations of H2O2 in both K. alvarezii and K. striatum thalli were observed at 23 °C; they decreased at 20 and 17 °C. A H2O2 concentration similar to the control (26 °C) was observed at 17 °C in K. alvarezii thalli but K. striatum thalli at 17 °C still had a higher H2O2 concentration than the control at 26 °C (Fig. 2). In other words, compared with the controls at 26 °C, the H2O2 concentration increased in both species when the thalli were exposed to low temperatures (23, 20, 17 °C), but the increase was much greater in K. striatum thalli than in K. alvarezii thalli. For example, the H2O2 concentration at 23 °C was 1.9 times as much as that of the control in K. alvarezii thalli, while the H2O2 concentration at 23 °C was 3 times as much as that of the control in K. striatum thalli. These results suggest that K. striatum thalli suffered more serious oxidative stress from H2O2 than K. alvarezii thalli.
https://static-content.springer.com/image/art%3A10.1186%2Fs40529-016-0136-8/MediaObjects/40529_2016_136_Fig2_HTML.gif

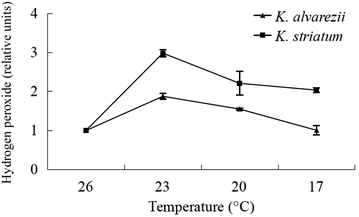

Fig. 2

Concentrations of H2O2 in thalli of K. alvarezii and K. striatum exposed to low temperatures (23, 20 and 17 °C) for 2 h, relative to the concentration of the control of each species at 26 °C [H2O2 concentration in thalli at the control temperature (26 °C) was 17.7 ± 1.3 mmol g−1 prot for K. alvarezii and 29.2 ± 2.0 mmol g−1 prot for K. striatum]. Data are means ± SD of three replicates (n = 3)

Antioxidant system responses of K. alvarezii and K. striatum thalli

Low temperature treatments resulted in distinct responses from the three major antioxidant enzymes (SOD, APX and CAT) in both K. alvarezii and K. striatum thalli. Compared with the control, SOD activities and APX activities increased significantly in both species when algal thalli were exposed to 23 °C (SOD activities at 23 °C were 2.1 times and 2.8 times as much as that of the controls in K. alvarezii thalli and K. striatum thalli, respectively; APX activities at 23 °C were 5.5 times and 3.1 times as much as that of the controls in K. alvarezii thalli and K. striatum thalli, respectively) (Fig. 3). At even lower temperatures (20 and 17 °C), SOD activities and APX activities of K. alvarezii thalli remained elevated (SOD activities were 1.8 times and 1.7 times as much as that of the control, at 20 and 17 °C, respectively; APX activities were 5.3 times and 5.9 times as much as that of the control, at 20 and 17 °C, respectively), whereas those of K. striatum thalli had no significant differences at either 20 or 17 °C compared with the control. Although CAT activities did not vary significantly in the two species after exposure to low temperatures (23, 20 and 17 °C) (Fig. 3), K. alvarezii thalli maintained higher SOD and APX activities whereas K. striatum thalli didn’t, under the low temperatures (20 and 17 °C). In addition, compared with the control, hydroxyl free radical scavenging capacity (HFRSC) had significant increases at lowered temperatures (HFRSC were 2.9 times, 2.1 times and 2.1 times as much as the control, at 23, 20 and 17 °C, respectively) in K. alvarezii thalli. Hydroxyl free radical scavenging capacity (HFRSC) of K. striatum thalli peaked at 23 °C (HFRSC was 2.2 times as much as the control), but dropped to the same level as the control at the lower temperatures, 20 and 17 °C (Fig. 3). Taken together, these results suggest that the antioxidant system of these species increased their activities against the oxidative stress generated by exposure to a low temperature of 23 °C. The antioxidant system of K. striatum thalli was unable to resist the lower temperatures (20 and 17 °C) whereas that of K. alvarezii thalli still had resistance to the lower temperatures (20 and 17 °C). No significant differences of MDA were found in the two species during exposure to lower temperatures (23 and 20 °C) (Fig. 3). At the lowest temperature of 17 °C, a significant increase of MDA (MDA concentration at 17 °C was 2.2 times as much as the control) was observed in K. striatum thalli, which confirmed the occurrence of oxidative damage; however, no significant increase of MDA was observed in K. alvarezii thalli (Fig. 3).
https://static-content.springer.com/image/art%3A10.1186%2Fs40529-016-0136-8/MediaObjects/40529_2016_136_Fig3_HTML.gif
Fig. 3

Superoxide dismutase (SOD), catalase (CAT), and ascorbate peroxidase (APX) activities and hydroxyl free radical scavenging capacity (HFRSC) and concentrations of malonaldehyde (MDA) in Kappaphycus alvarezii (a) and Kappaphycus striatum (b) thalli exposed to 26 °C (the control) and low temperatures (23, 20 and 17 °C) for 2 h, respectively. All values of the above parameters are expressed relative to those of their controls (the controls are taken as 1) and are presented in relative units. (Data are means ± SD of three replicates (n = 3). For each parameter, for each species, the treatments with a star (*) are significantly different from the respective control, p < 0.05)

Changes in photosynthetic efficiencies (or energy flux ratios)—\(\upvarphi_{\text{Po}}\), ψo and \(\upvarphi_{\text{Eo}}\)

Compared with the control, a significant decrease in the maximum PSII photochemical efficiency (FV/Fm = \(\upvarphi_{\text{Po}}\)) was observed in K. striatum thalli at 23 °C (the FV/Fm value was 0.62 while the control was 0.68) (Fig. 4), indicating that photo-damage had occurred. However, in K. alvarezii thalli, there was no significant decrease of FV/Fm at that temperature (23 °C). When exposed to 17 °C, both K. alvarezii and K. striatum thalli had significant decreases in FV/Fm compared to the control (FV/Fm values were 0.63 and 0.55 at 17 °C in K. alvarezii and K. striatum thalli, respectively, whereas the respective controls were 0.72 and 0.68). Because the value of FV/Fm largely reflected the physiological activity in plants, it was inferred that physiological activity in K. alvarezii might have greater tolerance to low temperature stress than that in K. striatum.
https://static-content.springer.com/image/art%3A10.1186%2Fs40529-016-0136-8/MediaObjects/40529_2016_136_Fig4_HTML.gif
Fig. 4

Energy flux ratios (\(\upvarphi_{\text{Po}}\), \(\upvarphi_{\text{Eo}}\) and ψo) of Kappaphycus alvarezii (a) and Kappaphycus striatum (b) thalli after exposure to 26 °C (the control) and low temperatures (23, 20 and 17 °C) for 2 h, respectively. (Means ± SD of ten replicates (n = 10) are presented. For each species, the treatment with a star (*) indicates that there is a significant difference between this temperature treatment and the control (26 °C), p < 0.05)

With regard to the excitation efficiency for electron transport beyond Q A o), both K. alvarezii and K. striatum thalli only exhibited significant decreases of ψo when the temperature dropped to 17 °C (ψo values were 0.36 and 0.24 in K. alvarezii and K. striatum thalli, respectively, whereas the respective controls were 0.47 and 0.37) (Fig. 4). At 23 and 20 °C, no significant decreases of ψo were observed, indicating that the electron transport in the PSII electron transport chain was not influenced significantly in either species. Compared with the control, the quantum yield of electron transport (\(\upvarphi_{\text{Eo}}\)) in K. striatum thalli decreased significantly at 20 and 17 °C (\(\upvarphi_{\text{Eo}}\) values were 0.21 and 0.13 at 20 and 17 °C, respectively, while the control was 0.26) (Fig. 4) while a significant decrease of \(\upvarphi_{\text{Eo}}\) was only observed at 17 °C (\(\upvarphi_{\text{Eo}}\) value was 0.23 at 17 °C while the control was 0.34) in K. alvarezii thalli. These results suggest that the lowered temperature of 20 °C led to a decreased quantum yield of electron transport in K. striatum thalli, whereas K. alvarezii thalli maintained a normal capacity for electron transport at that same temperature (20 °C), indicating again that K. alvarezii had stronger low temperature tolerance than K. striatum with regard to electron transport.

Since the parameters of photosynthetic efficiencies only reflect the energy cascade from light absorption to electron transport and don’t indicate the specific PSII component damaged by low temperature stress, the performance index on an absorption basis (PIABS) and its three variables RC/ABS, \(\upvarphi_{\text{Po}}\)/(1 − \(\upvarphi_{\text{Po}}\)), ψo/(1 − ψo), were calculated to probe the specific component of PSII possibly damaged by low temperature stress.

Changes in the performance index—PIABS

PIABS is more sensitive to changes of photosynthetic activity than the maximal photochemical efficiency (FV/Fm). Compared with the control, there were significant decreases of PIABS in K. striatum thalli when the temperature was below 23 °C (PIABS values were 0.33, 0.32 and 0.12 at 23, 20 and 17 °C, respectively, while the control was 0.61), whereas a significant decrease of PIABS was observed in K. alvarezii thalli only when the temperature was dropped to 17 °C (PIABS value was 0.45 at 17 °C while the control was 1.71) (Fig. 5). This result suggests that the 3 °C decrement in temperature from 26 °C resulted in decreased photosynthetic activity of PSII in K. striatum thalli, whereas a 9 °C decrement from 26 °C was needed for a negative impact on the PSII activity in K. alvarezii thalli.
https://static-content.springer.com/image/art%3A10.1186%2Fs40529-016-0136-8/MediaObjects/40529_2016_136_Fig5_HTML.gif

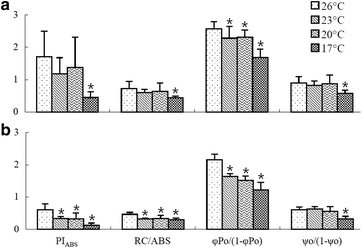

Fig. 5

Performance index on an absorption basis (PIABS) as well as its variables RC/ABS, \(\upvarphi_{\text{Po}}\)/(1 − \(\upvarphi_{\text{Po}}\)) and ψo/(1 − ψo) in Kappaphycus alvarezii (a) and Kappaphycus striatum (b) thalli after exposure to 26 °C (the control) and low temperatures (23, 20 and 17 °C) for 2 h, respectively. (Data are means ± SD of ten replicates (n = 10). For each parameter, for each species, the treatments with a star (*) are significantly different from the respective control (26 °C), p < 0.05)

In order to explore responses of different parts of PSII in the two species during the low temperature stress, three variables RC/ABS, \(\upvarphi_{\text{Po}}\)/(1 −\(\upvarphi_{\text{Po}}\)) and ψo/(1 − ψo), were calculated. RC/ABS, \(\upvarphi_{\text{Po}}\)/(1 − \(\upvarphi_{\text{Po}}\)) and ψo/(1 − ψo) reflect the efficiency of reaction centers, the light energy absorption efficiency and the accepting efficiency of the electron acceptor, respectively. When the temperature was dropped to 23 °C, RC/ABS decreased significantly in K. striatum thalli (the ratio RC/ABS was 0.32 at 23 °C while the control was 0.46), whereas no significant decrease of RC/ABS was observed in K. alvarezii until the temperature was decreased to 17 °C (the ratio RC/ABS was 0.45 at 17 °C while the control was 0.72) (Fig. 5). This suggests that reaction centers of PSII in K. alvarezii thalli maintained normal efficiency at 23 and 20 °C whereas the efficiency of PSII reaction centers in K. striatum thalli had decreased at these temperatures. At 17 °C, PSII reaction centers of both K. alvarezii and K. striatum were damaged. However, both K. alvarezii and K. striatum thalli had significant decreases of \(\upvarphi_{\text{Po}}\)/(1 −\(\upvarphi_{\text{Po}}\)) at 23 °C (the ratios \(\upvarphi_{\text{Po}}\)/(1 − \(\upvarphi_{\text{Po}}\)) were 2.2 and 1.6 in K. alvarezii and K. striatum thalli, respectively, while the respective controls were 2.6 and 2.2), indicating that the low temperature reduced the efficiency of the PSII antenna in both species (Fig. 5). In addition, the accepting efficiencies of the PSII electron acceptor (ψo/(1 − ψo)) in both K. alvarezii thalli and K. striatum thalli were impacted negatively at 17 °C (the ratios ψo/(1 − ψo) were 0.58 and 0.32 in K. alvarezii and K. striatum thalli, respectively, while the respective controls were 0.90 and 0.60), indicating that the acceptor sides of PSII in these two species were damaged (Fig. 5). In summary, in both species, PSII antennae were first damaged by the low temperature stress; damages to the PSII acceptor side was observed only at the lowest temperature (17 °C). In addition, the PSII reaction centers of K. striatum had a lower resistance to the low temperature stress than those of K. alvarezii.

Discussion

PSII contains some sensitive proteins, and the state of PSII is easily affected by low temperature stress (Čajánek et al. 1998; Tang et al. 2007). After exposure to low temperature stress, physiological dysfunctions, including alteration of metabolic processes, increase in ROS and reduction of photosynthetic capacity occur in plants (Allen and Ort 2001). The harsh conditions imposed by various environmental stresses result in an increase of H2O2, which is the main ROS in K. alvarezii thalli (Reis et al. 2011; Ling et al. 2015). Moreover, Barros et al. (2006) found that when K. alvarezii thalli were subjected to two co-stressors, chilling and high light, the H2O2 level increased. In our study, increases of H2O2 levels (Fig. 2) were observed during exposure to lowered temperatures (23 and 20 °C) in both K. alvarezii and K. striatum thalli, suggesting that oxidative stress occurred, but this increases were much greater in K. striatum thalli than in K. alvarezii thalli, indicating that K. striatum suffered more serious oxidative stress from H2O2 than K. alvarezii. Kappaphycus alvarezii at 17 °C had a similar H2O2 level as the control at 26°. That might be due to the increase of H2O2—scavenging enzyme (such as APX) activities. Barros et al. (2003) found that K. alvarezii released H2O2 into the surrounding medium to avoid harmful accumulation of H2O2. But K. striatum at 17 °C still had a higher H2O2 level than the control at 26°. Above results indicated that K. striatum might suffer greater oxidative damage than K. alvarezii during the low temperature.

Some important antioxidant enzymes (SOD, APX and CAT) of K. alvarezii increased their activities when K. alvarezii thalli is exposed to the cold and high light stress (Barros et al. 2006). In our study, SOD and APX activities were substantially higher at 23 °C than at 26 °C (Fig. 3) in both two species, indicating the antioxidant systems of both species enhanced their antioxidant activities against the oxidative stress caused by the low temperature. However, compared with the control, no significant increases of SOD and APX activities in K. striatum thalli were observed at the lower temperatures of 20 and 17 °C, whereas SOD and APX activities of K. alvarezii thalli were still higher at these lower temperatures (Fig. 3), indicating that these two antioxidant enzymes of K. alvarezii thalli persisted at the lower temperatures (20 and 17 °C) but those of K. striatum thalli didn’t. However, it is worth noting that no significant difference of CAT activity was observed during any of the low temperature treatments in either of the two species. Because CAT and APX are two important H2O2-scavenging enzymes, why doesn’t CAT respond to the increase of H2O2? Barros et al. (2003) found that APX was an effective system for decomposing lower concentrations of H2O2 in K. alvarezii, while higher concentrations of H2O2 woud be more efficiently decomposed by CAT. Ascorbate peroxidase (APX) has a greater affinity for H2O2 than CAT. So it is surmised that concentrations of H2O2 didn’t reach the level at which CAT would play a role during these low temperature treatments. Not only H2O2, but also ·OH (a powerful oxidizing agent) can cross membranes and may oxidize a variety of compounds (Nagarani and Kumaraguru 2012). Hydroxyl free radical scavenging capacity (HFRSC) was congruent with SOD and APX activities for each species (Fig. 3). A significant increase of HFRSC persisted in K. alvarezii thalli, whereas no significant increase of HFRSC was observed in K. striatum thalli at the lower temperatures (20 and 17 °C), indicating that K. alvarezii retained a stronger capacity for eliminating ·OH at 20 and 17 °C but K. striatum did not. Besides, the lipoperoxidation damage was only observed in K. striatum thalli (MDA, a marker of lipoperoxidation, increased significantly at 17 °C in that species) (Fig. 3). From the different antioxidant responses of these species to low temperature stress, it was inferred that K. alvarezii thalli might have greater low temperature resistance than K. striatum thalli.

Given that PSII is the most sensitive part of the photosynthetic apparatus, changes of the PSII state can indicate changes in physiological processes during low temperature stress (Lim et al. 2014). The maximum PSII photochemical efficiency decreased (FV/Fm values decreased) in both species as a consequence of low temperature stress, indicating that photo-damage had occurred such that photosynthetic activities decreased in both species.

The energy flux ratios (\(\upvarphi_{\text{Po}}\), ψo and \(\upvarphi_{\text{Eo}}\)), which were measured by Chl a fluorescence transients, can reflect the energy utilization from light absorption to electron transport and indicate the photosynthetic efficiencies during the energy cascade (Strasser et al. 2004). Li et al. (2014) found that the maximum quantum yield for primary photochemistry (\(\upvarphi_{\text{Po}}\)), the efficiency at which a trapped exciton moved an electron into the electron transport chain beyond Q A o) and the quantum yield of electron transport (\(\upvarphi_{\text{Eo}}\)), all decreased sharply under temperature stress. In our results, a significant decrease of \(\upvarphi_{\text{Po}}\) was observed in K. striatum thalli when the temperature dropped to 23 °C, whereas there was no significant decrease of \(\upvarphi_{\text{Po}}\) at that temperature in K. alvarezii thalli (Fig. 4). On the other hand, \(\upvarphi_{\text{Eo}}\) decreased sharply at 20 °C in K. striatum thalli while no significant decrease of \(\upvarphi_{\text{Eo}}\) was observed in K. alvarezii thalli (Fig. 4), indicating electron transport of K. alvarezii PSII wasn’t affected at this temperature. These results suggest that K. alvarezii thalli had greater low temperature tolerance than K. striatum thalli wtih regard to the PSII energy utilization.

PIABS is more sensitive to changes in photosynthetic activity than the maximal photochemical efficiency (FV/Fm) and can reflect the states of different photosynthetic components (Strasser et al. 2004). Strauss et al. (2007) found that low soil temperature decreased the value of PIABS seriously in soybeans. For red seaweeds, Zhang et al. (2012b) studied the Chl fluorescence characteristics of different strains of Porphyra yezoensis under low temperature stress. They found that the strains Sulian and WT had higher photochemical efficiency of PSII than the strain Sutong under low temperature stress, indicating that Sulian and WT might have better tolerance to low temperature. In our study, significant decreases of PIABS were observed in K. striatum thalli at 23, 20 and 17 °C, whereas a significant decrease of PIABS was observed in K. alvarezii thalli only at 17 °C. It indicated that the PSII of K. alvarezii thalli might have greater low temperature tolerance than the PSII of K. striatum thalli. In order to determine the low temperature tolerance of individual photosynthetic components of PSII (reaction centers, antennae and acceptor sides of PSII) for the two species, the values of RC/ABS, \(\upvarphi_{\text{Po}}\)/(1 − \(\upvarphi_{\text{Po}}\)), ψo/(1 − ψo), were measured (Fig. 5). From our results, PSII antennae were first damaged by the low temperature stress and damage of the PSII acceptor side was observed only at 17 °C in both species. RC/ABS decreased significantly in K. striatum thalli at 23 and 20 °C while no significant difference of RC/ABS was observed in K. alvarezii thalli at these temperatures. This suggests that efficiency of PSII reaction centres in K. alvarezii thalli remained at a normal level while the efficiency of PSII reaction centers in K. striatum thalli decreased at lower temperatures (23 and 20 °C). It was inferred that PSII reaction centers of K. striatum might have weaker resistance to low temperature stress than those of K. alvarezii.

Conclusions

κ-Carrageenan-producing K. alvarezii and K. striatum are important commercial red seaweeds. Strains of Kappaphycus could be selected for temperature tolerance by using the Chl fluorescence method, which is non-destructive to the algal tissue and takes only a few secs to record (Zhang et al. 2012b). This study has shown that the excess H2O2 generated by low temperature stress can indirectly damage the PSII apparatus and these two species have somewhat different physiological responses to low temperature stress. By comparing the several important parameters of the Chl fluorescence transient, it is concluded that the PSII of K. alvarezii has a stronger low temperature tolerance than K. striatum. Given that photosynthesis has been considered to be the physiological process most sensitive to temperature damage and that PSII is the most sensitive part of the photosynthetic apparatus (Wen et al. 2005), it is inferred that K. alvarezii thalli might have stronger low temperature tolerance than K. striatum thalli as a consequence of PSII characteristics. Our results will be helpful for further studies on the low temperature tolerance of Kappaphycus and for screening Kappaphycus strains for growth in a lower temperature environment (or higher latitude regions).

Abbreviations

APX:

ascorbate peroxidase

CAT:

catalase

Chl:

chlorophyll

HFRSC:

hydroxyl free radical scavenging capacity

H2O2

hydrogen peroxide

MDA:

malondialdehyde

OEC:

oxygen-evolving complex

·OH:

hydroxyl free radical

PQ:

plastoquinone

PSII:

photosystem II

ROS:

reactive oxygen species

SOD:

superoxide dismutase

Declarations

Authors’ contributions

HL, JGL and TP designed the research; HL performed the experiments and analyzed the data; LTZ and TP analyzed data; HL and JGL wrote the manuscript. All authors read and approved the final manuscript.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (41306154), Special Project for Marine Public Welfare Industry (201505033) and Marine Economy Innovation and Development Fund of Qingdao (2012). The authors would like to thank Zhaoliang Zheng from Lingshui Haotian Company for the provision of Kappaphycus alvarezii and Kappaphycus striatum, and thank Dr. John van der Meer (Pan-American Marine Biotechnology Association) for his assistance with proofreading.

Competing interests

The authors declare that they have no competing interests.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Key Laboratory of Experimental Marine Biology, National & Local Joint Engineering Laboratory of Ecological Mariculture, Institute of Oceanology, Chinese Academy of Sciences
(2)
Laboratory for Marine Biology and Biotechnology, Qingdao National Laboratory for Marine Science and Technology
(3)
University of Chinese Academy of Sciences

References

  1. Allen DJ, Ort DR (2001) Impacts of chilling temperatures on photosynthesis in warm-climate plants. Trends Plant Sci 6:36–42View ArticlePubMedGoogle Scholar
  2. Barros MP, Granbom M, Colepicolo P, Pedersén M (2003) Temporal mismatch between induction of superoxide dismutase and ascorbate peroxidase correlates with high H2O2 concentration in seawater from clofibrate-treated red algae Kappaphycus alvarezii. Arch Biochem Biophys 420:161–168View ArticlePubMedGoogle Scholar
  3. Barros MP, Necchi O, Colepicolo P, Pedersén M (2006) Kinetic study of the plastoquinone pool availability correlated with H2O2 release in seawater and antioxidant responses in the red alga Kappaphycus alvarezii exposed to single or combined high light, chilling and chemical stresses. Biochim Biophys Acta 1757:1520–1528View ArticlePubMedGoogle Scholar
  4. Bindu MS (2011) Empowerment of coastal communities in cultivation and processing of Kappaphycus alvarezii—a case study at Vizhinjam village, Kerala, India. J Appl Phycol 23:157–163View ArticleGoogle Scholar
  5. Bindu MS, Levine IA (2011) The commercial red seaweed Kappaphycus alvarezii—an overview on farming and environment. J Appl Phycol 23:789–796View ArticleGoogle Scholar
  6. Bixler HJ, Porse H (2011) A decade of change in the seaweed hydrocolloids industry. J Appl Phycol 23:321–335View ArticleGoogle Scholar
  7. Bixler HJ, Johndro K, Falshaw R (2001) Kappa-2 carrageenan: structure and performance of commercial extracts: II. Performance in two simulated dairy applications. Food Hydrocoll 15:619–630View ArticleGoogle Scholar
  8. Čajánek M, Štroch M, Lachetová I, Kalina J, Spunda V (1998) Characterization of the photosystem II inactivation of heat-stressed barley leaves as monitored by the various parameters of chlorophyll a fluorescence and delayed fluorescence. J Photochem Photobiol B–Biol 47:39–45View ArticleGoogle Scholar
  9. Collén J, Pedersén M, Bornman CH (1994) A stress-induced oxidative burst in Eucheuma platycladum (Rhodophyta). Physiol Plant 92:417–422View ArticleGoogle Scholar
  10. Das K, Samanta L, Chainy G (2000) A modified spectrophotometric assay of superoxide dismutase using nitrite formation by superoxide radicals. Indian J Biochem Biophys 37:201–204Google Scholar
  11. Deng Y, Wang W, Yu P, Xi Z, Xu L, Li X, He N (2013) Comparison of taurine, GABA, Glu, and Asp as scavengers of malondialdehyde in vitro and in vivo. Nanoscale Res Lett 8:1–9View ArticleGoogle Scholar
  12. Doty MS (1973) Farming the red seaweed, Eucheuma, for carrageenans. Micronsica 9:59–73Google Scholar
  13. Fariduddin Q, Khan TA, Yusuf M (2014) Hydrogen peroxide mediated tolerance to copper stress in the presence of 28-homobrassinolide in Vigna radiata. Acta Physiol Plant 36:2767–2778View ArticleGoogle Scholar
  14. Fraga CG, Leibovitz BE, Tappel AL (1988) Lipid peroxidation measured as thiobarbituric acid-reactive substances in tissue slices: characterization and comparison with homogenates and microsomes. Free Radic Biol Med 4:155–161View ArticlePubMedGoogle Scholar
  15. Ganzon-Fortes ET, Trono GC Jr, Villanueva RD, Romero JB, Montaño MNE (2012) ‘Endong’, a rare variety of the farmed carrageenophyte Eucheuma denticulatum (Burman) Collins & Hervey from the Philippines. J Appl Phycol 24:1107–1111View ArticleGoogle Scholar
  16. Gechev T, Willekens H, Montagu MV, Eacute DI, Camp WIMV, Toneva V, Minkov I (2003) Different responses of tobacco antioxidant enzymes to light and chilling stress. J Plant Physiol 160:509–515View ArticlePubMedGoogle Scholar
  17. Glenn EP, Doty MS (1990) Growth of the seaweeds Kappaphycus alvarezii, K. striatum and Eucheuma denticulatum as affected by environment in Hawaii. Aquaculture 84:245–255View ArticleGoogle Scholar
  18. Halliwell B, Grootveld M, Gutteridge JMC (2006) Methods for the measurement of hydroxyl radicals in biochemical systems: deoxyribose degradation and aromatic hydroxylation. In: Glick D (ed) Methods of biochemical analysis, vol 33. Wiley, Newyork, pp 59–90View ArticleGoogle Scholar
  19. Li L, Li X, Xu X, Lin L, Zeng F (2014) Effects of high temperature on the chlorophyll a fluorescence of Alhagi sparsifolia at the southern Taklamakan Desert. Acta Physiol Plant 36:243–249View ArticleGoogle Scholar
  20. Lideman Nishihara GN, Noro T, Terada R (2013) Effect of temperature and light on the photosynthesis as measured by chlorophyll fluorescence of cultured Eucheuma denticulatum and Kappaphycus sp. (Sumba strain) from Indonesia. J Appl Phycol 25:399–406View ArticleGoogle Scholar
  21. Lim PE, Tan J, Phang SM, Nikmatullah A, Hong DD, Sunarpi H, Hurtado AQ (2014) Genetic diversity of Kappaphycus Doty and Eucheuma J. Agardh (Solieriaceae, Rhodophyta) in Southeast Asia. J Appl Phycol 26:1253–1272View ArticleGoogle Scholar
  22. Ling ALM, Yasir S, Matanjun P, Bakar MFA (2015) Effect of different drying techniques on the phytochemical content and antioxidant activity of Kappaphycus alvarezii. J Appl Phycol 27:1717–1723View ArticleGoogle Scholar
  23. Liu J, Pang T, Wang L, Li J, Lin W (2009) The reasons causing catastrophic death in tropical carrageenan producing seaweeds and their difference in resistance to illness. Oceanol Limnol Sin 40:235–241Google Scholar
  24. Liu L, Liu Y, Cui J, Liu H, Liu Y, Qiao W, Sun H, Yan C (2013) Oxidative stress induces gastric submucosal arteriolar dysfunction in the elderly. World J Gastroenterol 19:9439–9446View ArticlePubMedPubMed CentralGoogle Scholar
  25. Malanga G, Kozak RG, Puntarulo S (1999) N-Acetylcysteine-dependent protection against UV-B damage in two photosynthetic organisms. Plant Sci 141:129–137View ArticleGoogle Scholar
  26. Nagarani N, Kumaraguru AK (2012) Chemical characterization, temperature stability, and enzymatic studies on edible marine algae Kappaphycus alvarezii (Doty). J Aquat Food Prod Technol 21:480–492View ArticleGoogle Scholar
  27. Nakano Y, Asada K (1981) Hydrogen peroxide is scavenged by ascorbate-specific peroxidase in Spinach chloroplasts. Plant Cell Physiol 22:867–880Google Scholar
  28. Ohno M, Largo DB, Ikumoto T (1994) Growth rate, carrageenan yield and gel properties of cultured kappa-carrageenan producing red alga Kappaphycus alvarezzi (Doty) Doty in the subtropical waters of Shikoku, Japan. J Appl Phycol 6:1–5View ArticleGoogle Scholar
  29. Pang T, Liu J, Liu Q, Li H, Li J (2015) Observations on pests and diseases affecting a eucheumatoid farm in China. J Appl Phycol 27:1975–1984View ArticleGoogle Scholar
  30. Reis MO, Necchi O, Colepicolo P, Barros MP (2011) Co-stressors chilling and high light increase photooxidative stress in diuron-treated red alga Kappaphycus alvarezii but with lower involvement of H2O2. Pestic Biochem Phys 99:7–15View ArticleGoogle Scholar
  31. Stirbet A et al (2012) Chlorophyll a fluorescence induction: a personal perspective of the thermal phase, the J-I-P rise. Photosynth Res 113:15–61View ArticlePubMedGoogle Scholar
  32. Strasser RJ (1978) The grouping model of plant photosynthesis. In: Akoyunoglou G (ed) Chloroplast Development. Elsevier/North Holland Biomedical Press, Amsterdam, pp 513–524Google Scholar
  33. Strasser RJ, Tsimilli-Michael M, Srivastava A (2004) Analysis of the chlorophyll a fluorescence transient. In: Papageorgiou GC, Govindjee A (eds) Chlorophyll fluorescence: a signature of photosynthesis, advances in photosynthesis and respiration. Springer, Dordrecht, pp 321–362View ArticleGoogle Scholar
  34. Strauss AJ, Krüger GH, Strasser RJ, Van Heerden PD (2007) The role of low soil temperature in the inhibition of growth and PSII function during dark chilling in soybean genotypes of contrasting tolerance. Physiol Plantarum 19:89–105View ArticleGoogle Scholar
  35. Tang Y, Chen M, Xu Y, Kuang T (2007) Changes in thermostability of photosystem II and leaf lipid composition of rice mutant with deficiency of light-harvesting chlorophyll a/b protein complexes. J Integr Plant Biol 49:515–522View ArticleGoogle Scholar
  36. Wen X, Qiu N, Lu Q, Lu C (2005) Enhanced thermotolerance of photosystem II in salt-adapted plants of the halophyte Artemisia anethifolia. Planta 220:486–497View ArticlePubMedGoogle Scholar
  37. Zhang L, Zhang Z, Gao H, Meng X, Yang C, Liu J, Meng Q (2012a) The mitochondrial alternative oxidase pathway protects the photosynthetic apparatus against photodamage in Rumex K-1 leaves. BMC Plant Biol 12:40View ArticlePubMedPubMed CentralGoogle Scholar
  38. Zhang T, Shen Z, Xu P, Zhu J, Lu Q, Shen Y, Wang Y, Yao C, Li J, Wang Y (2012b) Analysis of photosynthetic pigments and chlorophyll fluorescence characteristics of different strains of Porphyra yezoensis. J Appl Phycol 24:881–886View ArticleGoogle Scholar
