Microarray meta-analysis to explore abiotic stress-specific gene expression patterns in Arabidopsis

Botanical StudiesAn International Journal201758:22

DOI: 10.1186/s40529-017-0176-8

Received: 9 February 2017

Accepted: 5 May 2017

Published: 16 May 2017

Abstract

Background

Abiotic stresses are the major limiting factors that affect plant growth, development, yield and final quality. Deciphering the underlying mechanisms of plants’ adaptations to stresses using few datasets might overlook the different aspects of stress tolerance in plants, which might be simultaneously and consequently operated in the system. Fortunately, the accumulated microarray expression data offer an opportunity to infer abiotic stress-specific gene expression patterns through meta-analysis. In this study, we propose to combine microarray gene expression data under control, cold, drought, heat, and salt conditions and determined modules (gene sets) of genes highly associated with each other according to the observed expression data.

Results

By analyzing the expression variations of the Eigen genes from different conditions, we had identified two, three, and five gene modules as cold-, heat-, and salt-specific modules, respectively. Most of the cold- or heat-specific modules were differentially expressed to a particular degree in shoot samples, while most of the salt-specific modules were differentially expressed to a particular degree in root samples. A gene ontology (GO) analysis on the stress-specific modules suggested that the gene modules exclusively enriched stress-related GO terms and that different genes under the same GO terms may be alternatively disturbed in different conditions. The gene regulatory events for two genes, DREB1A and DEAR1, in the cold-specific gene module had also been validated, as evidenced through the literature search.

Conclusions

Our protocols study the specificity of the gene modules that were specifically activated under a particular type of abiotic stress. The biplot can also assist to visualize the stress-specific gene modules. In conclusion, our approach has the potential to further elucidate mechanisms in plants and beneficial for future experiments design under different abiotic stresses.

Keywords

Abiotic stress Gene module The coefficient of intrinsic dependence Analysis of variance The weighted gene co-expression network analysis Singular value decomposition Biplot

Background

Facing the challenge of climate change, raising crop production to feed enough people indicates to increase the tolerance of plants to severe environments (Ronald 2011). Plant is a sessile organism and must maintain a complex system of genetic expression to accommodate the impacts of different environments in order to survive with success (Trewavas 2003). When the plant is subjected to a stress, genes coded on its DNA usually take the initial actions required to trigger proper self-defensive mechanisms (Sachs and Ho 1986). It is therefore straightforward to monitor gene expression patterns and their interactions as the first step to deciphering the underlying mechanisms of a plant subjected to stresses. Embraced by rapidly developed biotechnologies, it has become very convenient to accurately monitor global gene expression under different circumstances in living organisms (Ritchie et al. 2015). Although the sequencing of messenger RNA by the latest generation of sequencing technology (also known as RNA-Sequencing or RNA-Seq) is more straightforward, sensitive, and accurate in terms of the quantification of gene expressions, the systematic error rates and costs of said technology remain high compared to those of microarray technology, which has been in use for more than two decades (Mantione et al. 2014).

After collecting a global set of gene expressions, finding differentially expressed genes is the first step in deciphering the underlying mechanisms of a plant that copes with stress. In addition, biologists have recently been asking more about the systematic explanations of gene expression patterns. (e.g., Atkinson and Urwin 2012; Hahn et al. 2013; Priest et al. 2014). Such inquiries have motivated the advancement of gene set analysis and the utilization of microarray data to make inferences regarding genetic networks. Gene set analysis concerns the disturbed gene sets instead of individual genes whereas the gene sets of interest are predetermined (e.g., the co-expressed genes, the genes in the same category of the gene ontology, the genes involved in the same metabolic pathway, etc.) (Kaever et al. 2014, 2015; Rest et al. 2016). Network inference, which is the focus of this study, links genes with edges that indicate potential associations to depict the possible interactions among the chosen set of genes (Todaka et al. 2012; Rasmussen et al. 2013; Nakashima et al. 2014).

The construction of a correlation network is one approach that can be taken after a microarray experiment, while conducting a weighted gene co-expression network analysis (WGCNA) is another. The former can be accomplished by computing the pairwise Pearson correlation coefficients of genes and connecting a given gene pair if the Pearson correlation coefficient exceeds a user-specified threshold (Song et al. 2012). The choice of the threshold, however, might be very subjective, and different thresholds result in networks with different topologies (Borate et al. 2009). A WGCNA, however, preserves all possible edges in the network but assigns different weights to them instead. By clustering the genes with high-weight edges, WGCNA is able to determine the modules (gene sets) of genes highly associated with each other according to the observed expression data. In this study, we further extend the application of WGCNA in three directions:
  1. 1.

    Instead of using the correlation coefficient as the measure of the association between genes, we choose the coefficient of intrinsic dependence (CID).


  2. 2.

    We explore stress-specific modules by conducting the analysis of variance on the expression levels of the Eigen genes representing the gene modules and by comparing the edge weights of the stress-specific modules.


  3. 3.

    A biplot is introduced to visualize the stress-specific modules for convenience in further interpretation.



Along with long-term development of the technology, a huge amount of results from a wide range of microarray experiments has been accumulated. As of August 18, 2016, data from a total of 179 microarray experiments had been included in the Arabidopsis Information Resource (TAIR) database. Typical experiments have consisted of several treated samples under a particular condition and several controlled samples as the background of comparison for the reasons of purification and simplicity. However, analyzing the expression patterns under one stressed condition versus those under control conditions can only reveal a corner of a huge puzzle. One is not able to depict an overview of the entire system or of the interactions between the impacts caused by different stress sources on the living organisms. Therefore, in this study, we combine all possible samples from different stress conditions and perform a meta-analysis of the gene regulatory network on the combined dataset.

To that end, the coefficient of intrinsic dependence (CID), instead of the typical Pearson correlation coefficient, is used to measure the association between genes because the Pearson correlation coefficient only measures the linearity of the gene associations. However, past studies (Liu 2005; Liu et al. 2009) have shown that a nonlinear relationship between the expressions of two associated genes might occur in some cases. The CID does not require distributional and functional assumptions regarding the data and is useful for analyzing noisy microarray data. Relatedly, while systematic errors are well controlled in highly developed microarray technology, samples from different experiments contribute noise to each other when a meta-analysis is conducted due to the fact that the expression patterns from different experiments have a wide range of variation (Ramasamy et al. 2008; Campain and Yang 2010). The CID had been applied to investigate gene regulatory events incorporating the Galton–Pearson correlation coefficient (Liu et al. 2009, 2012), to identify associations among multivariate variables (Liu and Tsai 2013), and to select relevant features on a step-by-step basis according to their importance in relation to the target variable (Hsiao and Liu 2016). In this study, we strictly followed the definition and methodology of CID described in Hsiao and Liu (2016) and focus on utilizing the CID in measuring the magnitude of association in general between genes based on microarray gene expression data.

A CID matrix is used to construct the weighted gene co-expression network produced by a WGCNA. According to the weighted network, gene modules containing genes with similar expression patterns are then identified. The WGCNA further performs a principle component analysis (Pearson 1901; Hotelling 1933; Zhang and Horvath 2005) on the expression matrix of each gene module and uses the first principle component (designated as “Eigen gene”) as the representative of the gene module. The expression of the Eigen gene is the linear combination of the expressions from all genes in the gene module, which has been utilized to identify quantitative-trait-associated gene modules by computing the Pearson correlation coefficient between the observed values of the quantitative trait and the expression levels of the Eigen gene (Zhang and Horvath 2005; Langfelder and Horvath 2008). In this study, it is the qualitative variable (i.e., the treated conditions of the sample) that is of interest. We propose to utilize the analysis of variance for identification of stress-related gene modules by using the expression levels of the Eigen gene as the dependent variable and the treatment conditions of the sample as the independent variable.

Finally, we present the stress-related gene module using a biplot (Fig. 1), which unifies the information from both the gene module (shown as a gray arrow) and treatment conditions (shown as black arrows) in a single two-dimension plot. The biplot was introduced by Gabriel (1971); Yan and Kang (2002) subsequently described various methods for visualizing and interpreting a biplot. In our case, the length and direction of the projection of a specified condition vector on the vector of the gene module represents the magnitude of the impact of that condition on the gene module. A biplot can also assist in the interpretation of stress-specific modules. For example, an illustration of a biplot shown in Fig. 1, gene module M10 is up-regulated under the heat condition (as indicated by the acute angle between the M10 and HEAT vectors) but down-regulated under the cold and salt conditions (as indicated by the obtuse angles between the M10 and the COLD and SALT vectors). In addition, M10 is heat-specific, but it cannot tell the difference between the cold and salt conditions (the M10 vector is close to the red line, which is perpendicular to the line connecting two condition points; see Materials and Methods).
Fig. 1

An illustration of a biplot. The blue line represents the connection between two stresses, and the red line passes through the origin and runs perpendicular to the blue line. The gray and black arrows are vectors of each gene module and stress, respectively

Methods

The microarray expression data were downloaded from TAIR database (Huala et al. 2001). Our dataset consisted of 24 cold-treated, 24 salt-treated, 28 drought-treated, 16 heat-treated, and 36 controlled time-series arrays (Additional file 1: Table S1). All 128 arrays were hybridized using the Affymetrix ATH1 chip, which contains 22,810 probe sets (genes). The downloaded microarray raw data was preprocessed using the robust multi-array average (RMA) method and log2 transformed by RMAExpress version 1.0.5 (Bolstad et al. 2003; Irizarry et al. 2003a, b). The output of RMAExpress was taken log2 again to make the expression data more normally distributed (Additional file 2: Figure S1) in order to fulfill the essential assumption of following the analysis of variance. The processed microarray data were subjected to the analyses of variance (ANOVA) to identify the genes differentially expressed using the design models:
$${\text{R}}_{\text{ijkl}} = \upmu_{\text{Ri}} + {\upalpha}_{\text{Rij}} + {\upalpha \uptau}_{\text{Rijk}} + \upepsilon_{\text{Rijkl}} \quad {\text{for}}\;{\text{samples}}\;{\text{of}}\;{\text{root}}\;{\text{tissues}},\;{\text{or}}$$
$${\text{S}}_{\text{ijkl}} = \upmu_{\text{Si}} + \upalpha_{\text{Sij}} + \upalpha \uptau_{\text{Sijk}} + \upepsilon_{\text{Sijkl}} \quad {\text{for}}\;{\text{samples}}\;{\text{of}}\;{\text{shoot}}\;{\text{tissues}},$$
where Rijkl (Sijkl) is the normalized expression level of the lth replicate for the ith gene under the jth condition at kth time point in the root (shoot) samples; μRiSi) is the overall average expression level for the ith gene in the root (shoot) samples; αRjSj) is the condition effect observed in the root (shoot) samples; ατRjk (ατSjk) is the time effect under the jth condition in the root (shoot) samples; and εRijklSijkl) is the sampling error. The analysis of variance which we performed to determine a differential expression gene considered the alternative hypothesis that the gene’s expression was significantly different in at least one of the cold, heat, drought, salted, and controlled conditions. Four p values (two for testing the conditional effects and the other two for testing time effects under different conditions) can be obtained from the above model for each gene. Combining the two p values from the root samples and the two p values from the shoot samples, the smallest one was designated as the overall p value of a gene. The most significant 2281 genes yielding the smallest 10% of overall p values were claimed to be differentially expressed in this study.

The following steps to construct the weighted gene co-expression network were analogue to those of the well-known WGCNA package in R (Langfelder and Horvath 2008). The pairwise CID values for the expression levels of g DE genes were computed to form the g*g CID matrix, C = {ci,j}, where ci,j = CID(gi|gj) for two DE genes, gi and gj, by setting the subgroup size of gj to be 20 (Liu et al. 2009). Unlike the correlation matrix, the CID matrix is asymmetric; that means ci,j is not necessarily equal to cj,i. The g*g adjacency matrix, A = {ai,j}, was set as C taken to the power of three to make the connectivity of the DE genes follow the scale-free property of the biological network (Albert 2005; Pavlopoulos et al. 2011). Specifically, in this study, the connectivity of gene gi for the asymmetric adjacency matrix was defined as Σjai,j = Σj≠i(ci,j)3, i,j = 1, …, 2281. The adjacency matrix, A, was analyzed by WGCNA with minModuleSize = 60 to obtain the gene modules (Langfelder and Horvath 2008).

The Eigen gene of each gene module was defined as the first principle component of the genes in the module (Langfelder and Horvath 2008). We performed the singular value decomposition (SVD) toward the s by m expression matrix M = {mij}, where mij is the average expression level of the Eigen gene of jth (j = 1, …, m) module under the ith (i = 1, …, s) condition. More specifically, the SVD decomposed the matrix M into
$${\mathbf{M}} = {\mathbf{USV}}^{T} = \left( {{\mathbf{US}}^{{{1 \mathord{\left/ {\vphantom {1 2}} \right. \kern-0pt} 2}}} } \right)\left( {{\mathbf{VS}}^{{{1 \mathord{\left/ {\vphantom {1 2}} \right. \kern-0pt} 2}}} } \right)^{T} = {\mathbf{U}}^{*} {\mathbf{V}}^{*T}$$
where U and V are s by r left and m by r right singular matrices, respectively (Golub and Van Loan 1996), S is an r by r diagonal matrix having the singular values, and r is the number of non-zero values of the diagonal of S. The first two columns of U* and V* are referred as the first two principle components (PCs) that most explain the variability of the numbers in the rows (conditions) and the columns (modules) of M, respectively.

By overlaying the values of the first two PCs in U* and V* together in a two-dimension plot (known as the “biplot”), we can visualize the effects of the conditions and the modules and their interactions more easily (Gabriel 1971; Yan and Kang 2002). According to the inner-product property of a biplot (Yan and Kang 2002), the projection of a module vector on a condition vector represents the magnitude of the effect of the gene module on the condition, or vice versa. If the angle between two vectors is less than 90° (greater than 90°), the gene module is up-regulated (down-regulated) in the condition. We further connect two points of two conditions (for example, the blue line in Fig. 1 represents such a connection) on the biplot and draw a straight line passing through the origin and running perpendicular to the line connecting two condition points (for example, the red line in Fig. 1). Any module vector having a small angle to the perpendicular line (the red line in Fig. 1) cannot effectively distinguish the two conditions, meaning that similar expression levels (i.e., the projection lengths) on the gene module have been observed in the two conditions. Therefore, we claim that the gene module is specific for a condition if it fulfills two criteria: (1) the length of the gene module vector projected on the condition vector is relatively long, and (2) the gene module vector is almost perpendicular to the connected line (e.g., the blue line in Fig. 1) between any other two conditions. The genes in the stress specific gene modules were verified through gene ontology (GO) analysis using agriGO analytic tools (Du et al. 2010).

Results

Arabidopsis thaliana (Arabidopsis) microarray expression data consisting of 22,810 probe sets (genes) and 216 samples under five conditions (control, cold, drought, heat, and salt) were analyzed. The data were first preprocessed in order to fulfill the normality assumption of ANOVA (Additional file 2: Figure S1), which were run separately on the root and shoot samples. The most significant 2281 genes under different conditions were collected for further analysis. We had observed the tissue-specific responses of the genes under different conditions; only 554 genes were included in the top 10% lists for both the root and shoot samples. Furthermore, there were 813 genes that were differentially expressed only in the shoot samples and 914 genes that were differentially expressed only in the root samples.

From the 2281 DE genes, the WGCNA resulted in 19 gene modules (Additional file 3: Table S4). The sizes of the gene modules ranged from 60 to 295 genes, with an average of 120.05 genes (Additional file 4: Table S2). The Eigen gene (ME) for each gene module was designated as the first principle component after conducting the singular value decomposition (SVD) on the expression matrix of the gene module. Figure 2 shows the patterns of average expressions for 19 Eigen genes of all conditions in shoot/root samples. Fourteen out of the 19 Eigen genes (ME1-ME4, ME6, ME8-ME12, ME14, ME16-ME17, and ME19) were mostly highly expressed in root samples. Three Eigen genes (ME5, ME7, and ME15) were expressed more in shoot samples, but the other two Eigen genes (ME13 and ME18) had similar patterns of expression in both root and shoot samples.

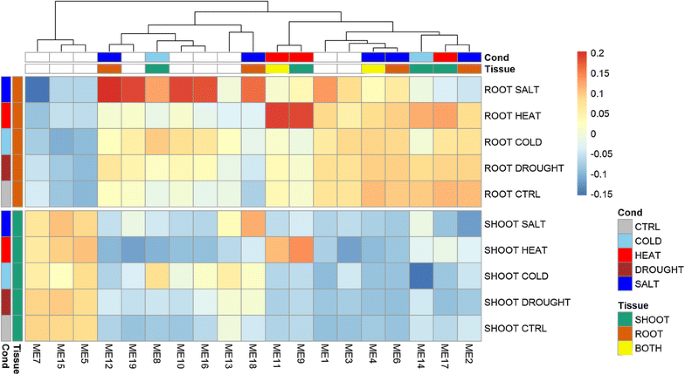

Fig. 2
