- Original Article
- Open Access
Identification of qBK2.1, a novel QTL controlling rice resistance against Fusarium fujikuroi
Botanical Studies volume 64, Article number: 11 (2023)
Bakanae disease caused by Fusarium fujikuroi is an increasing threat to rice production. The infected plants show symptoms such as elongation, slenderness, chlorosis, a large leaf angle, and even death. Bakanae disease is traditionally managed by seed treatment. However, fungicide-resistant F. fujikuroi isolates have emerged in several Asian areas, including Taiwan. This study aimed to identify new bakanae resistance quantitative trait loci (QTLs) and provide molecular markers to assist future breeding.
A population of F2:9 recombinant inbred lines (RILs) was derived from the cross between an elite japonica Taiwanese cultivar ‘Taikeng 16 (TK16)’ and an indica variety ‘Budda’. ‘Budda’ was found highly resistant to all 24 representative isolates of the F. fujikuroi population in Taiwan. For the RIL population, 6,492 polymorphic single nucleotide polymorphisms (SNPs) spanning the rice genome were obtained by genotyping-by-sequencing (GBS) technique, and the disease severity index (DSI) was evaluated by inoculation with a highly virulent F. fujikuroi isolate Ff266. Trait-marker association analysis of 166 RILs identified two QTLs in ‘Budda’. qBK2.1 (21.97–30.15 Mb) is a novel and first bakanae resistance QTL identified on chromosome 2. qBK1.8 (5.24–8.66 Mb) partially overlaps with the previously reported qBK1.3 (4.65–8.41 Mb) on chromosome 1. The log of odds (LOD) scores of qBK1.8 and qBK2.1 were 4.75 and 6.13, accounting for 4.9% and 8.1% of the total phenotypic variation, respectively. 64 RILs carrying both qBK1.8 and qBK2.1 showed lower DSI (7%) than the lines carrying only qBK1.8 (15%), only qBK2.1 (13%), or none of the two QTLs (21%). For the future application of identified QTLs, 11 KBioscience competitive allele-specific PCR (KASP) markers and 3 insertion-deletion (InDel) markers were developed.
Compared to other important rice diseases, knowledge of bakanae resistance has been insufficient, which limited the development and deployment of resistant cultivars. The discovery of qBK2.1 has provided a new source of bakanae resistance. The resistant RILs inheriting good plant type, good taste, and high yield characteristics from ‘TK16’ can be used as good resistance donors. Our newly developed markers targeting qBK2.1 and qBK1.8 can also serve as an important basis for future fine-mapping and resistance breeding.
Rice is an important staple food for more than half of the people worldwide. It was estimated that farmers can lose about 37% of rice production due to diseases and pests (International Rice Research Institute, Rice Knowledge Bank, http://www.knowledgebank.irri.org). Among the diseases causing considerable reduction in rice quality and yield, Bakanae disease, a seed-borne disease caused by Fusarium fujikuroi, is widely distributed in rice-growing areas (Gupta et al. 2015). In recent years, bakanae disease is increasingly important in many Asian countries. In India, it is a severe threat to basmati rice. Disease incidence was as high as 40% in northern India according to a survey from 2006 to 2012 (Gupta et al. 2014), and was 1-25.5% in Odisha state from 2016 to 2018 (Raghu et al. 2018). In Malaysia and Indonesia, disease incidence ranged from 0.5 to 12.5% from 2004 to 2005 (Zainudin et al. 2008). In the affected areas of Bangladesh, the estimated incidence was 19.1%, and the yield loss was 10.85% (Hossain et al. 2011). In Taiwan, the incidence of bakanae disease was also reported to reach 15% in Taitung in 2009 (Chu et al. 2010) and 30.4% in Miaoli in 2012 (Zheng et al. 2016).
F. fujikuroi-infected seedlings show several types of symptoms, such as elongation, slenderness, chlorosis, large leaf angle, and even death. It can also cause a reduction of effective tillers, which affects rice yield (Hossain et al. 2011). Rice panicles could be infected during the flowering stage (Ou 1985), so the pathogen can be disseminated through contaminated seeds. To manage bakanae disease, chemical fungicides have long been used for seed treatment. However, F. fujikuroi isolates resistant to benzimidazole, prochloraz, tebuconazole, and phenamacril have been reported in Korea, Taiwan, and China (Kim et al. 2010; Chen et al. 2014; Chen et al. 2016; Hou et al. 2018). In China, the frequency of phenamacril-resistant isolates increased from 18% in 2017 to 47% in 2018 (Wu et al. 2019). Because of the emergence of fungicide-resistant isolates, it is crucial to develop alternative control methods.
Planting resistant cultivars is an effective, economical, and environmental-friendly disease control strategy. To breed for resistant cultivars, it is essential to have sufficient information on the genetics of disease resistance. Bakanae-resistant varieties have been identified from large-scale screenings by several research teams (Fiyaz et al. 2014; Kim et al. 2014; Hur et al. 2016; Chen et al. 2019). At least 29 quantitative trait loci (QTLs) controlling bakanae resistance have been identified by linkage mapping and genome-wide association mapping. Thirteen of them are located on chromosome 1 (qBK1_628091, qBK1Z, qBK1.2, qBK1.3, qBK1WD, qFfR1, qBK1, qBK1.1, qB1, qBK1.4, qBK1.5, qBK1.6, and qBK1.7), and 16 are located on chromosomes 3, 4, 6, 8, 9, 10, and 11 (qBK3.1, qBK3.2, qBK4_31750955, qBK4.1, qBK4T, qFfR6, qBK6.1, qBK6.2, qBK6.3, qBK8.1, qFfR9, qB10, qBK10.1, qBK10.2, qBK10.3, and qBK11.1) (Yang et al. 2006; Hur et al. 2015; Fiyaz et al. 2016; Volante et al. 2017; Ji et al. 2017; Lee et al. 2018, 2019, 2021, 2022; Cheon et al. 2019; Chen et al. 2019; Kang et al. 2019).
This study aimed to identify new resistant QTLs related to bakanae disease and provide molecular markers to assist future breeding. The indica rice variety ‘Budda’ is an Indian landrace characterized by drought tolerance and great early vigor (Khera et al. 2012). ‘Budda’ was found to be highly resistant to bakanae, according to the inoculation of 141 and 729 rice accessions with a highly virulent isolate F. fujikuroi Ff266 (M.-H. Lai, unpublished data). Chen et al. (2016) analyzed the genetic structure of the F. fujikuroi population in Taiwan and evaluated the virulence of 24 representative isolates. Among eight varieties tested, ‘Budda’ exhibited great resistance to all 24 isolates, and ‘Taikeng 16 (TK16)’, a Taiwanese japonica cultivar, showed moderate resistance/susceptibility. ‘TK16’ is an elite cultivar with high adaptability, high yield, good taste, brown planthopper resistance, and low pre-harvest sprouting rate (Lee et al. 1998). To find out the genetic regions controlling bakanae resistance in ‘Budda’ and also improve the resistance of ‘TK16’, we generated an F9 recombinant inbred line (RIL) population from the cross of ‘TK16’ and ‘Budda’. High-density single nucleotide polymorphisms (SNPs) spanning the rice genome were obtained by the genotyping-by-sequencing (GBS) technique (Elshire et al. 2011), and the disease severity index was evaluated by artificial inoculation and visual rating. After mapping QTLs by linkage analysis, we also developed markers polymorphic between ‘Budda’ and ‘TK16’ and identified potential defense-related genes in the candidate QTL regions. The resistant QTLs, newly developed markers, and resistant lines derived from the mapping population can be used for resistance breeding.
A population of 183 F9 RILs was developed from the cross of ‘TK16’ × ‘Budda’ using the single-seed descent method at the experimental farm of Taiwan Agricultural Research Institute. The leaves of F8 lines were collected for genotyping, and bakanae resistance was evaluated using F9seedlings.
Evaluation of bakanae disease resistance
F. fujikuroi Ff266, a highly virulent isolate originated from a diseased rice plant in Ilan in 2012, was provided by Dr. Chi-Yu Chen at National Chung-Hsing University. Bakanae resistance was evaluated by inoculation with F. fujikuroi Ff266 following the methods of Chen et al. (2019). Rice seeds were disinfected in sterile dH2O at 60oC for 10 min, then soaked in water. F. fujikuroi was cultured on 1/2 potato dextrose agar at 25 °C for 4 days. Then, spore suspension was collected using sterile dH2O and adjusted to 105 spores/mL. The 4-day-old pre-germinated seeds were then immersed in sterile water (as a control) or the spore suspension and shaken overnight. The seeds were sown in Akadama soil and cultivated in a walk-in chamber (32/28°C day/night temperature, 12/12-h light/dark photoperiod). The inoculation experiment was conducted following a randomized complete block design in three independent trials, each containing 12 seedlings per line. The 12 seedlings were cultivated in a pot (L × W × H = 3.5 × 4.5 × 5.5 cm). At 21 days after inoculation, each F. fujikuroi-inoculated seedling was compared with the control and rated on a 0–3 scale (0: symptomless; 1: the presence of one symptom; 2: the presence of two symptoms; 3: seedling death) (Chen et al. 2016). The overall disease severity index (DSI) was calculated as: [(∑scale × No. of seedlings with the scale) / (Maximum scale × Total no. of seedlings)] × 100% (Chen et al. 2019).
Rice genomic DNA was extracted from the leaves of the 183 F8 RILs and two parents following a cetyltrimethylammonium bromide (CTAB) extraction protocol (Doyle and Doyle 1987). DNA pellet was resuspended with 50 µL Tris-EDTA buffer containing 1 µL of 10 mg/mL RNase A. DNA concentration was quantified using Quant-iT™ PicoGreen™ dsDNA Assay Kit (Invitrogen, MA, USA) and SpectraMax i3x Multi-Mode Microplate Reader (MOLECULAR DEVICES, San Jose, CA, USA) following the manufacturer’s instructions. The genotyping-by-sequencing procedure was conducted following the protocol developed by Elshire et al. (2011) with slight modifications. Briefly, 2 µL of the barcode adaptor was put into each well of the 96-well plate. 100 ng of DNA was added and digested with ApeKI (New England Biolabs, Ipswich, MA, USA) for two hours at 75oC. The adaptor was then ligated with the DNA sample by T4 DNA ligase (New England Biolabs, Ipswich, MA, USA) for one hour at 22oC and inactivated for 30 min at 65oC. Samples in each 96-well plate were pooled and cleaned up using the QIAquick PCR Purification Kit (Qiagen). PCR was performed to increase fragments for sequencing. Subsequently, the PCR product was cleaned up and resuspended with EB buffer. Library quality was checked using Agilent 2100 Bioanalyzer (Agilent Technologies, CA, USA) according to Agilent High Sensitivity DNA Kit Guide. Each 96 multiplexed library was sequenced as 150 bp single-end reads on one lane on the Illumina HiSeq 2500 platform at the NGS High Throughput Genomics Core at Academia Sinica.
Genetic map construction and linkage mapping
Raw reads generated from GBS were processed according to TASSEL GBS pipeline v3.0 (Glaubitz et al. 2014) and aligned to the rice reference genome IRGSP-1.0 (MSU7 Nipponbare reference genome). Markers with missing data in any line were removed. Lines with high heterozygosity (proportion heterozygous ≥ 0.1) were excluded. The SNP data was transformed to ABH format in TASSEL 5.2.60 (Bradbury et al. 2007). Crossover points and bin markers were calculated using SNPbinner (Gonda et al. 2019).
Genetic map construction and linkage mapping were conducted using R/qtl (Broman et al. 2003). The construction of the genetic map was based on the Kosambi map function. The QTLs were identified by interval mapping with the threshold determined based on 1,000 permutations at 5% and 1% significance levels. The interval of each QTL was defined using the Bayesian credible interval at 0.95 probability coverage. Epistatic interactions were calculated using R/qtl (effectplot function), with each QTL represented by the bin marker nearest the QTL peak. To investigate the possible causal genes involved in bakanae resistance, gene function descriptions were acquired from Rice Annotation Project Database (RAP-DB).
For the future application of identified QTLs, KBioscience competitive allele-specific PCR (KASP) and insertion-deletion (InDel) markers across the candidate genetic regions were designed (Supplemental Tables 1 and Supplemental Table 2). KASP markers were designed following the methods of Jatayev et al. (2017) and Wang et al. (2019) with modifications. SNPs were acquired from the GBS result. Briefly, allele-specific primers and common reverse primers were designed using WASP Web-based Allele Specific Primer design tool (http://bioinfo.biotec.or.th/WASP) or BatchPrimer3 (https://wheat.pw.usda.gov/demos/BatchPrimer3/) (Wangkumhang et al. 2007; You et al. 2008). Then, a mismatched nucleotide was substituted at the fourth position from the 3’ end. The sequences (GAAGGTGACCAAGTTCATGCT and GAAGGTCGGAGTCAACGGATT) corresponding to FAM or VIC/HEX probe were added to the 5’ end of two forward primers. The primers were diluted to 15 µM and mixed with the ratio listed in Supplemental Table 1. Each 10 µL reaction contained 5 µL KAPA PROBE FAST qPCR Master Mix (2X) Universal (KAPA Biosystems, MA, USA), 0.14 µL KASP primer mix, 2 µL of DNA (15 ng/µL), 0.3 µL of 4 µM fluorescent probe, and 2.26 µL ddH2O. PCR reaction was performed on CFX Connect Real-Time PCR Detection System (BioRad, CA, USA). The thermal cycling parameters were 95 °C for 3 min followed by 10 cycles of 95 °C for 20 s, 61 °C for 20 s (-0.6 °C/cycle), and 72 °C for 1 s; then 40 cycles of 95 °C for 20 s, and 55 °C for 40 s.
The InDel markers (Supplemental Table 2) were developed based on the sequence difference between indica and japonica rice cultivars. The whole genome sequences of the indica rice IR64 and the japonica rice Nipponbare were used. Genome alignment was conducted in the Rice SNP-Seek Database (https://snp-seek.irri.org/) and primers were designed using Primer3Plus (Untergasser et al. 2007). Each PCR reaction was performed in a total volume of 10 µL, containing 1 µL of genomic DNA (20 ng/µL), 5 µL of 2X Master Mix Red PCR buffer (Ampliqon, Denmark), 0.1 µL of 10 µM forward primer, 0.1 µL of 10 µM reverse primer, and 3.8 µL of ddH2O. The thermal cycling parameters were 95 °C for 5 min followed by 32 cycles of 95 °C for 30 s, 61 °C for 30 s, and 72 °C for 1 min, and a final extension step at 72 °C for 5 min. PCR products were electrophoresed in a 2% agarose gel in 0.5X Tris-borate-EDTA buffer for 20 min at 100 V. Gels were stained with ethidium bromide (5 × 10− 4 mg/mL) for 10 min, destained with ddH2O for 10 min, then photographed using the Gel Documentation-VideGel VGIS-4 system (Top Bio Co.).
Evaluation of bakanae resistance in the RIL population
To identify the bakanae resistance in ‘Budda’, the RIL population derived from ‘TK16’ × ‘Budda’ was artificially inoculated with F. fujikuroi Ff266. Major types of symptoms observed from the inoculated parental lines and the RIL population were elongation and slenderness. The means of DSI of ‘Budda’ and ‘TK16’ were 14% and 21.4%, respectively. The distribution of DSI for 183 RILs tested ranged from 0 to 63.8% (Fig. 1), with most lines exhibiting moderate resistance to bakanae disease. The RIL population showed transgressive segregation, with some lines displaying greater resistance or susceptibility than the parental lines.

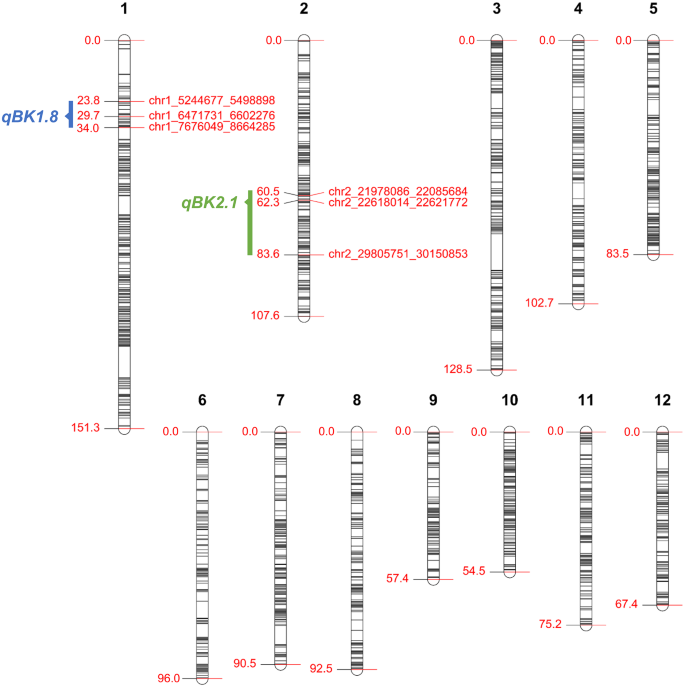

Genetic map construction
A total of 184,170 SNPs with polymorphism between ‘TK16’ and ‘Budda’ were generated from the GBS result. After the exclusion of 17 lines with high heterozygosity (proportion heterozygous ≥ 0.1), a total of 166 lines were used for subsequent analysis. Following the removal of SNPs with missing data for any lines, 6,492 SNPs were retained to construct the linkage map. With the distortion value set at 0.001 and the minimum size of each bin calculated based on 1,000 bp, a total of 1,622 bin markers defined by SNPbinner were used for genetic map construction by R/qtl. The genetic map spanned 1107.1 cM in total with an average density of ~0.68 cM per bin marker. Segregation distortions were identified in chromosomes 3 (10.5–24.7 Mb), 6 (3.7–6.2 Mb), and 7 (3.3–22.0 Mb) (Fig. 2; Table 1).
Detection of QTLs for bakanae resistance
QTLs associated with bakanae resistance were identified using interval mapping. The LOD thresholds at 95% and 99% confidence levels were 3.10 and 3.72, respectively. Two QTL peaks (LOD > 3.72) were detected on chromosomes 1 and 2 (Table 2; Fig. 3). The resistance effect of both QTLs was from ‘Budda’ alleles. The most significant QTL (LOD = 6.13), qBK2.1, is a novel QTL located between 21,978,086 to 30,150,853 bp on chromosome 2. The bin marker nearest the qBK2.1 peak (62.3 cM) was at 22,618,014 to 22,621,772 bp. The other minor QTL, qBK1.8, was identified between 5,244,677 to 8,664,285 bp on chromosome 1. qBK1.8 is co-localized with a previously reported qBK1.3 (Fiyaz et al. 2016). The bin marker nearest the qBK1.8 peak (29.7 cM) was at 6,471,731 to 6,602,276 bp. qBK2.1 and qBK1.8 explained 8.1% and 4.9% of phenotypic variation, respectively. No significant epistatic interaction was observed between qBK2.1 and qBK1.8 (Fig. 4). Nonetheless, 64 RILs carrying both qBK1.8 and qBK2.1 showed lower disease incidence (15.4%) and DSI (7%) than those carrying either qBK1.8 (disease incidence = 29.2%, DSI = 15%) or qBK2.1 (disease incidence = 25.2%, DSI = 13%); 46 RILs with neither qBK1.8 nor qBK2.1 showed higher disease incidence (40.4%) and DSI (21%).
Candidate genes in QTL regions
A total of 1,060 and 442 genes are located within qBK2.1 and qBK1.8, respectively. Among these genes, 12 genes contain a leucine-rich repeat (LRR) domain (Os01g0223600, Os01g0239700, Os02g0593600, Os02g0597300, Os02g0609900, Os02g0610000, Os02g0614966, Os02g0615400, Os02g0636400, Os02g0647300, Os02g0658500, and Os02g0695050), one gene contains an NB-ARC domain (Os02g0612200), and four genes are involved in disease resistance (Os01g0229400, Os02g0629400, Os02g0632800, and Os02g0700700). Os02g0629400 and Os02g0632800 were annotated to regulate the resistance to bacterial leaf streak and rice blast, respectively. Moreover, candidate genes related to phytohormones were also found. Three genes (Os01g0209700, Os02g0580300, and Os02g0643200) are associated with gibberellin signaling or catabolism. Four genes (Os02g0626100, Os02g0626400, Os02g0626600, and Os02g0627100) and two genes (Os01g0246700 and Os02g0629800) are involved in salicylic acid (SA) biosynthesis and jasmonic acid (JA) signaling, respectively. Seven genes (Os01g0224700, Os01g0231000, Os01g0236300, Os02g0610950, Os02g0628600, Os02g0643800, and Os2g0723400) are related to auxin regulation.
Six KASP markers were developed for qBK1.8, and 5 KASP and 3 InDel markers were developed for qBK2.1 (Supplemental Tables 1 and Supplemental Table 2). The amplification of KASP markers showed that the genotypes of ‘Budda’ (FAM-signal), ‘TK16’ (HEX/VIC-signal), and heterozygotes could be clearly differentiated into three groups (Supplemental Fig. 1 and Supplemental Fig. 2). The three newly developed InDel markers amplified specific ‘Budda’ and ‘TK16’ fragments of expected sizes (Supplemental Fig. 3). The product sizes of Indel_chr2_1 were 1,051 bp for Budda and 399 bp for TK16; Indel_chr2_3 were 384 bp for Budda and 751 bp for TK16; Indel_chr2_5 were 366 bp for Budda and 608 bp for TK16.
The infection of F. fujikuroi usually causes complex morphological changes and a more significant variation of disease reactions among individual plants. Derived from consecutive inbreeding, the RIL population has high levels of recombination and homozygosity and can be used for repeated phenotyping, which largely increases the power of QTL detection (Burr and Burr 1991; Broman 2005). Four bakanae resistance QTLs, i.e., qBK1.1, qBK1.2, qBK1.3, and qBK3.1, were mapped using a population of F14 RILs (Fiyaz et al. 2016). qBK1WD and qBK1Z on chromosome 1 were fine-mapped by using F4:5 and F2:9 RILs, respectively. (Lee et al. 2018, 2021). Recently, qBK4T was mapped by using BC1F8 RILs (Lee et al. 2022). In this study, to uncover the genetics underlying the high bakanae resistance in ‘Budda’, we generated a population of ‘TK16’ × ‘Budda’ F9 RILs. In combination with high-density SNP genotypes generated by GBS and more precise disease evaluation in a controlled environment, we have successfully identified two QTLs with relatively minor effects (8.1% and 4.9% of variation explained). qBK2.1 is a novel resistant QTL and the first bakanae resistance QTL identified on chromosome 2; qBK1.8 (5.24–8.66 Mb) is co-localized with the previously reported qBK1.3 (4.65–8.41 Mb) on chromosome 1 (Fiyaz et al. 2016). In the future, narrowing down the candidate regions through fine-mapping will precisely identify resistance gene(s) in ‘Budda’ to facilitate resistance breeding.
Plants have evolved different mechanisms to perceive and respond to pathogen infection. The defense-related candidate genes located in the regions of qBK2.1 and qBK1.8 are worthy of further investigation. The 12 LRR-containing proteins may function as pattern recognition receptors (PRRs) on the cell surface or nucleotide-binding domain leucine-rich repeat (NLR) proteins intracellularly to recognize pathogen effectors and induce defense responses (Yuan et al. 2021). Os02g0632800 encodes a wall-associated kinase OsWAK14, which was associated with quantitative resistance to rice blast by loss-of-function mutants (Delteil et al. 2016). The identified JA-, GAs-, and auxin-related genes might affect bakanae resistance and symptom development. The exogenous application of methyl jasmonate (MeJA) could delay the symptom development in a susceptible cultivar (Cheng et al. 2020). Auxin signaling has been implicated in regulating leaf angle (Zhang et al. 2015), and GAs control plant height and internode elongation (Takahashi et al. 1991; Ayano et al. 2014). The interplay of phytohormones and their effects on bakanae resistance remains to be clarified.
Three segregation distortion regions on chromosomes 3, 6, and 7 were observed for the ‘TK16’ × ‘Budda’ RIL population. The phenomenon could be attributed to the reproductive barriers of indica-japonica hybrids. Segregation distortion on chromosome 3 might be associated with impaired male functions such as pollen sterility and spikelet sterility (Reflinur et al. 2014). Female factors such as embryo sac fertility, embryo sac abortion, and female gametogenesis might be responsible for the segregation distortion on chromosome 6 (Reflinur et al. 2014). Besides, a locus controlling temperature-sensitive genic male sterility was reported on chromosome 7 (Yamaguchi et al. 1997). Segregation distortion would increase the difficulty of detecting QTLs in these regions. To discover potential QTLs in the segregation distortion region, a new mapping population should be developed by crossing between ‘Budda’ and other Indica rice varieties.
Pyramiding of resistant QTLs could strengthen rice to defend against bakanae disease. Lee et al. (2018) observed that the mean proportions of healthy plants for the F4 RILs with both qBKWD and qBK1 (80.2%) was higher than that with only qBKWD (66.1%) or qBK1 (55.5%) and that without resistance QTLs (35.3%). Similarly, in our RIL population, the lines harboring qBK2.1 and qBK1.8 showed the highest level of resistance and the lowest disease incidence. We are currently working to evaluate the agronomic traits of the RILs containing resistant alleles at qBK2.1 and qBK1.8. The resistant lines inheriting good plant type, good taste, and high yield characteristics from ‘TK16’ can potentially be released as new cultivars or used as resistance donors.
Bakanae disease is an important and emerging epidemic of rice worldwide. The occurrence of fungicide resistance made the conventional seed treatment ineffective. However, compared to other important rice diseases such as blast and bacterial blight, knowledge of bakanae resistance has been insufficient, which limited the development and deployment of resistant cultivars. In this study, to more accurately map QTLs controlling the resistance of ‘Budda’, we constructed a ‘TK16’ × ‘Budda’ F9 RIL population and used the GBS technique to generate genome-wide high-density SNPs. We also adopted strict criteria for linkage analysis, including the removal of lines with high heterozygosity and the SNPs with missing data for any lines. The discovery of qBK2.1 and qBK1.8, particularly the novel qBK2.1, has provided a new source of bakanae resistance. Our newly developed KASP and InDel markers targeting qBK2.1 and qBK1.8 are ready for use in future fine-mapping and resistance breeding.
The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.
disease severity index
KBioscience competitive allele-specific PCR
log of odds
nucleotide-binding domain leucine-rich repeat
pattern recognition receptor
quantitative trait locus
recombinant inbred line
single nucleotide polymorphism
Ayano M, Kani T, Kojima M, Sakakibara H, Kitaoka T, Kuroha T, Angeles-Shim RB, Kitano H, Nagai K, Ashikari M (2014) Gibberellin biosynthesis and signal transduction is essential for internode elongation in deepwater rice. Plant Cell Environ 37:2313–2324. https://doi.org/10.1111/pce.12377
Bradbury PJ, Zhang Z, Kroon DE, Casstevens TM, Ramdoss Y, Buckler ES (2007) TASSEL: software for association mapping of complex traits in diverse samples. Bioinformatics 23:2633–2635. https://doi.org/10.1093/bioinformatics/btm308
Broman KW (2005) The genomes of recombinant inbred lines. Genetics 169(2):1133–1146. https://doi.org/10.1534/genetics.104.035212
Broman KW, Wu H, Sen Ś, Churchill GA (2003) R/qtl: QTL mapping in experimental crosses. Bioinformatics 19:889–890. https://doi.org/10.1093/bioinformatics/btg112
Burr B, Burr FA (1991) Recombinant inbreds for molecular mapping in maize: theoretical and practical considerations. Trends Genet 7(2):55–60. https://doi.org/10.1016/0168-9525(91)90232-F
Chen Z, Gao T, Liang S, Liu K, Zhou M, Chen C (2014) Molecular mechanism of resistance of Fusarium fujikuroi to benzimidazole fungicides. FEMS Microbiol Lett 357(1):77–84. https://doi.org/10.1111/1574-6968.12504
Chen YC, Lai MH, Wu CY, Lin TC, Cheng AH, Yang CC, Wu HY, Chu SC, Kuo CC, Wu YF, Lin GC, Tseng MN, Tsai YC, Lin CC, Chen CY, Huang JW, Lin HA, Chung CL (2016) The genetic structure, virulence, and fungicide sensitivity of Fusarium fujikuroi in Taiwan. Phytopathology 106(6):624–635. https://doi.org/10.1094/PHYTO-11-15-0285-R
Chen SY, Lai MH, Tung CW, Wu DH, Chang FY, Lin TC, Chung CL (2019) Genome-wide association mapping of gene loci affecting disease resistance in the rice-fusarium fujikuroi pathosystem. Rice 12:85. https://doi.org/10.1186/s12284-019-0337-3
Cheng AP, Chen SY, Lai MH, Wu DH, Lin SS, Chen CY, Chung CL (2020) Transcriptome analysis of early defenses in rice against Fusarium fujikuroi. Rice 13:65. https://doi.org/10.1186/s12284-020-00426-z
Cheon KS, Jeong YM, Lee YY, Oh J, Kang DY, Oh H, Kim SL, Kim N, Lee E, Baek J, Choi I, Kim KH, Won YJ, Yoon IS, Cho YI, Han JH, Ji H (2019) Kompetitive allele-specific PCR marker development and quantitative trait locus mapping for bakanae disease resistance in korean japonica rice varieties. Plant Breed Biotechnol 7:208–219. https://doi.org/10.9787/PBB.2019.7.3.208
Chu SC, Jiang MS, Chan CY, Huang TC (2010) Survey of bakanae disease incidence of rice plants in Taitung area and the improvement of its control measures. Res Bull Taitung Dist Agric Res Ext Stn 20:57–69
Delteil A, Gobbato E, Cayrol B, Estevan J, Michel-Romiti C, Dievart A, Kroj T, Morel JB (2016) Several wall-associated kinases participate positively and negatively in basal defense against rice blast fungus. BMC Plant Biol 16:17. https://doi.org/10.1186/s12870-016-0711-x
Doyle JJ, Doyle JL (1987) A rapid DNA isolation procedure for small quantities of fresh leaf tissue. Phytochemical Bull 19(1):11–15
Elshire RJ, Glaubitz JC, Sun Q, Poland JA, Kawamoto K, Buckler ES, Mitchell SE (2011) A robust, simple genotyping-by-sequencing (GBS) approach for high diversity species. PLoS ONE 6:e19379. https://doi.org/10.1371/journal.pone.0019379
Fiyaz RA, Krishnan SG, Rajashekara H, Yadav AK, Bashyal BM, Bhowmick PK, Singh NK, Prabhu KV, Singh AK (2014) Development of high throughput screening protocol and identification of novel sources of resistance against bakanae disease in rice (Oryza sativa L). Indian J Genet Plant Breed 74(4):414–422. https://doi.org/10.5958/0975-6906.2014.00864.5
Fiyaz RA, Yadav AK, Krishnan SG, Ellur RK, Bashyal BM, Grover N, Bhowmick PK, Nagarajan M, Vinod KK, Singh NK, Prabhu KV, Singh AK (2016) Mapping quantitative trait loci responsible for resistance to bakanae disease in rice. Rice 9:45. https://doi.org/10.1186/s12284-016-0117-2
Glaubitz JC, Casstevens TM, Lu F, Harriman J, Elshire RJ, Sun Q, Buckler ES (2014) TASSEL-GBS: a high capacity genotyping by sequencing analysis pipeline. PLoS ONE 9:e90346. https://doi.org/10.1371/journal.pone.0090346
Gonda I, Ashrafi H, Lyon DA, Strickler SR, Hulse-Kemp AM, Ma Q, Sun H, Stoffel K, Powell AF, Futrell S, Thannhauser TW, Fei Z, Van Deynze AE, Mueller LA, Giovannoni JJ, Foolad MR (2019) Sequencing-based bin map construction of a tomato mapping population, facilitating high-resolution quantitative trait loci detection. Plant Genome 12(1):180010. https://doi.org/10.3835/plantgenome2018.02.0010
Gupta AK, Singh Y, Jain A, Singh D (2014) Prevalence and incidence of bakanae disease of rice in northern India. J AgriSearch 1:233–237
Gupta AK, Solanki IS, Bashyal BM, Singh Y, Srivastava K (2015) Bakanae of rice-an emerging disease in Asia. J Anim Plant Sci 25(6):1499–1514
Hossain KS, Miah MAT, Bashar MA (2011) Preferred rice varieties, seed source, disease incidence and loss assessment to bakanae disease. J Agrofor Environ 5(2):125–128
Hou YP, Qu XP, Mao XW, Kuang J, Duan YB, Song XS, Wang JX, Chen CJ, Zhou MG (2018) Resistance mechanism of Fusarium fujikuroi to phenamacril in the field. Pest Manag Sci 74(3):607–616. https://doi.org/10.1002/ps.4742
Hur YJ, Lee SB, Kim TH, Kwon T, Lee JH, Shin DJ, Park SK, Hwang UH, Cho JH, Yoon YN, Yeo US, Song YC, Kwak DY, Nam MH, Park DS (2015) Mapping of qBK1, a major QTL for bakanae disease resistance in rice. Mol Breed 35:78. https://doi.org/10.1007/s11032-015-0281-x
Hur Y, Lee S, Shin D, Kim T, Cho J, Han S, Oh S, Lee J, Son Y, Lee J, Kwon T, Park N, Kim S, Song Y, Nam M, Kwon Y, Park D (2016) Screening of rice germplasm for bakanae disease resistance in rice. Korean J Breed Sci 48(1):22–28
Jatayev S, Kurishbayev A, Zotova L, Khasanova G, Serikbay D, Zhubatkanov A, Botayeva B, Zhumalin A, Turbekova A, Soole K, Langridge P, Shavrukov Y (2017) Advantages of Amplifluor-like SNP markers over KASP in plant genotyping. BMC Plant Biol 17:254. https://doi.org/10.1186/s12870-017-1197-x
Ji H, Kim TH, Lee GS, Kang HJ, Lee SB, Suh SC, Kim SL, Choi I, Baek J, Kim KH (2017) Mapping of a major quantitative trait locus for bakanae disease resistance in rice by genome resequencing. Mol Genet Genom 293:579–586. https://doi.org/10.1007/s00438-017-1407-0
Kang DY, Cheon KS, Oh J, Oh H, Kim SK, Kim N, Lee E, Choi I, Baek J, Kim KH, Chung NJ, Ji H (2019) Rice genome resequencing reveals a major quantitative trait locus for resistance to bakanae disease caused by Fusarium fujikuroi. Int J Mol Sci 20(10):2598. https://doi.org/10.3390/ijms20102598
Khera P, Priyadarshi R, Singh A, Mohan R, Ulaganathan K, Shenoy V (2012) Scope for utilization of native specialty landraces, cultivars and basmati types in rice heterosis breeding. J Plant Breed Crop Sci 4(8):115–124. https://doi.org/10.5897/JPBCS12.018
Kim SH, Park MR, Kim YC, Lee SW, Choi BR, Lee SW, Kim IS (2010) Degradation of prochloraz by rice bakanae disease pathogen Fusarium fujikuroi with differing sensitivity: a possible explanation for resistance mechanism. J Korean Soc Appl Biol Chem 53:433–439. https://doi.org/10.3839/jksabc.2010.067
Kim MH, Hur YJ, Lee SB, Kwon T, Hwang UH, Park SK, Yoon YN, Lee JH, Cho JH, Shin D, Kim TH, Han SI, Yeo US, Song YC, Nam MH, Park DS (2014) Large-scale screening of rice accessions to evaluate resistance to bakanae disease. J Gen Plant Pathol 80:408–414. https://doi.org/10.1007/s10327-014-0528-0
Lee CY, Liu WT, Ting CH, Cheng MC, Cheng CC, Tseng TH, Liu DJ (1998) Development of the new rice variety Taikeng 16. Res Bull Hualien Dist Agric Res Ext Stn 16:1–21. https://doi.org/10.6957/RBHDAIS.199812.0001
Lee SB, Hur YJ, Cho JH, Lee JH, Kim TH, Cho SM, Song YC, Seo YS, Lee J, Kim TS, Park YJ, Oh MK, Park DS (2018) Molecular mapping of qBK1WD, a major QTL for bakanae disease resistance in rice. Rice 11:3. https://doi.org/10.1186/s12284-017-0197-7
Lee SB, Kim N, Hur YJ, Cho SM, Kim TH, Lee JY, Cho JH, Lee JH, Song YC, Seo YS, Ko JM, Park DS (2019) Fine mapping of qBK1, a major QTL for bakanae disease resistance in rice. Rice 12:36. https://doi.org/10.1186/s12284-019-0295-9
Lee SB, Kim N, Jo S, Hur YJ, Lee JY, Cho JH, Lee JH, Kang JW, Song YC, Bombay M, Kim SR, Lee J, Seo YS, Ko JM, Park DS (2021) Mapping of a major QTL, qBK1Z, for bakanae disease resistance in rice. Plants 10(3):434. https://doi.org/10.3390/plants10030434
Lee SB, Lee JY, Kang JW, Mang H, Kabange NR, Seong GU, Kwon Y, Lee SM, Shin D, Lee JH, Cho JH, Oh KW, Park DS (2022) A novel locus for bakanae disease resistance, qBK4T, identified in rice. Agronomy 12(10):2567. https://doi.org/10.3390/agronomy12102567
Ou SH (1985) Rice Diseases, 2nd edn. Commonwealth Agricultural Bureaux, Slough, UK
Raghu S, Yadav MK, Prabhukarthikeyan SR, Baite MS, Lenka S, Jena M (2018) Occurrence, pathogenicity, characterization of Fusarium fujikuroi causing rice bakanae disease from Odisha and in vitro management. Oryza 55(1):214–223. https://doi.org/10.5958/2249-5266.2018.00025.5
Reflinur, Kim B, Jang SM, Chu SH, Bordiya Y, Akter MB, Lee J, Chin JH, Koh HJ (2014) Analysis of segregation distortion and its relationship to hybrid barriers in rice. Rice 7:3. https://doi.org/10.1186/s12284-014-0003-8
Untergasser A, Nijveen H, Rao X, Bisseling T, Geurts R, Leunissen JAM (2007) Primer3Plus, an enhanced web interface to Primer3. Nucleic Acids Res 35:W71–74. https://doi.org/10.1093/nar/gkm306
Volante A, Tondelli A, Aragona M, Valente MT, Biselli C, Desiderio F, Bagnaresi P, Matic S, Gullino ML, Infantino A, Spadaro D, Valè G (2017) Identification of bakanae disease resistance loci in japonica rice through genome wide association study. Rice 10:29. https://doi.org/10.1186/s12284-017-0168-z
Wang SS, Chu YC, Tsai PH, Yang AH (2019) Establishment of SNP detection technology to examine the purity of cucumber hybrids. Res Bull Tainan Dist Agric Res Ext Stn 74:27–35
Wangkumhang P, Chaichoompu K, Ngamphiw C, Ruangrit U, Chanprasert J, Assawamakin A, Tongsima S (2007) WASP: a web-based allele-specific PCR assay designing tool for detecting SNPs and mutations. BMC Genom 8:275. https://doi.org/10.1186/1471-2164-8-275
Wu JY, Sun YN, Zhou XJ, Zhang CQ (2019) A new mutation genotype of K218T in myosin-5 confers resistance to phenamacril in rice bakanae disease in the field. Plant Dis 104:1151–1157. https://doi.org/10.1094/PDIS-05-19-1031-RE
Yamaguchi Y, lkeda R, Hirasawa H, Minami M, Ujihara A (1997) Linkage analysis of thermosensitive genic male sterility gene, tms-2 in rice (Oryza sativa L). JPN J Breed 47:371–373. https://doi.org/10.1270/jsbbs1951.47.371
Yang CD, Kuo LB, Ji ZJ et al (2006) Analysis of QTLs for resistance to rice bakanae disease. Chi J Rice Sci 20:657–659
You FM, Huo N, Gu YQ, Luo MC, Ma Y, Hane D, Lazo GR, Dvorak J, Anderson OD (2008) BatchPrimer3: a high throughput web application for PCR and sequencing primer design. BMC Bioinform 9:253. https://doi.org/10.1186/1471-2105-9-253
Yuan M, Ngou BPM, Ding P, Xin XF (2021) PTI-ETI crosstalk: an integrative view of plant immunity. Curr Opin Plant Biol 62:102030. https://doi.org/10.1016/j.pbi.2021.102030
Zainudin NAIM, Razak AA, Salleh B (2008) Bakanae disease of rice in Malaysia and Indonesia: etiology of the causal agent based on morphological, physiological and pathogenicity characteristics. J Plant Prot Res 48(4):475–485. https://doi.org/10.2478/v10045-008-0056-z
Zhang S, Wang S, Xu Y, Yu C, Shen C, Qian Q, Geisler M, Jiang DA, Qi Y (2015) The auxin response factor, OsARF19, controls rice leaf angles through positively regulating OsGH3-5 and OsBRI1. Plant Cell Environ 38:638–654. https://doi.org/10.1111/pce.12397
Zheng ZW, Chang SJ, Chu SC (2016) The occurrence of bankanae disease and fungicide resistance of Fusarium fujikuroi on rice paddy, seedlings and seeds from Miaoli. Res Bull Miaoli Dist Agric Res Ext Stn 4:59–72
Takahashi N, Phinney BO, MacMillan J (eds) (1991) Gibberellins. Springer New York, New York, NY
We thank Dr. Chi-Yu Chen (National Chung-Hsing University, Taiwan) for providing the F. fujikuroi isolate, Mr. Sheng-Shan Wang (Tainan District Agricultural Research and Extension Station, Taiwan) for assistance in designing KASP markers, and Dr. Tsung-Chun Lin (Taiwan Agricultural Research Institute, Taiwan) for help in the inoculation experiment. We appreciate help from Mr. Shi-Hao Li, Mr. Han-Hui Huang, and Mr. Nai-Chiang Dai (Taiwan Agricultural Research Institute, Taiwan) for help in developing the RIL population.
The study was supported by the Bureau of Animal and Plant Health Inspection and Quarantine, Council of Agriculture, Taiwan [108AS-8.4.4-BQ-B1(1), 109AS-8.4.2-BQ-B3(1), 110AS-5.3.2-BQ-B2(1), 111AS-5.3.2-BQ-B1(1), 112AS-5.3.2-BQ-B1(1)].
Ethics Approval and Consent to Participate
Consent for Publication
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Electronic supplementary material
Below is the link to the electronic supplementary material.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Chen, SY., Lai, MH., Chu, YL. et al. Identification of qBK2.1, a novel QTL controlling rice resistance against Fusarium fujikuroi. Bot Stud 64, 11 (2023). https://doi.org/10.1186/s40529-023-00375-y
- Fusarium fujikuroi
- Bakanae resistance
- Quantitative trait loci (QTLs)
- Recombinant inbred lines (RILs)
- Taikeng 16
- Genotyping-by-sequencing (GBS)
- Molecular markers
