A termite symbiotic mushroom maximizing sexual activity at growing tips of vegetative hyphae
© The Author(s) 2017
Received: 7 April 2017
Accepted: 19 August 2017
Published: 19 September 2017
Termitomyces mushrooms are mutualistically associated with fungus-growing termites, which are widely considered to cultivate a monogenotypic Termitomyces symbiont within a colony. Termitomyces cultures isolated directly from termite colonies are heterokaryotic, likely through mating between compatible homokaryons.
After pairing homokaryons carrying different haplotypes at marker gene loci MIP and RCB from a Termitomyces fruiting body associated with Odontotermes formosanus, we observed nuclear fusion and division, which greatly resembled meiosis, during each hyphal cell division and conidial formation in the resulting heterokaryons. Surprisingly, nuclei in homokaryons also behaved similarly. To confirm if meiotic-like recombination occurred within mycelia, we constructed whole-genome sequencing libraries from mycelia of two homokaryons and a heterokaryon resulting from mating of the two homokaryons. Obtained reads were aligned to the reference genome of Termitomyces sp. J132 for haplotype reconstruction. After removal of the recombinant haplotypes shared between the heterokaryon and either homokaryons, we inferred that 5.04% of the haplotypes from the heterokaryon were the recombinants resulting from homologous recombination distributed genome-wide. With RNA transcripts of four meiosis-specific genes, including SPO11, DMC1, MSH4, and MLH1, detected from a mycelial sample by real-time quantitative PCR, the nuclear behavior in mycelia was reconfirmed meiotic-like.
Unlike other basidiomycetes where sex is largely restricted to basidia, Termitomyces maximizes sexuality at somatic stage, resulting in an ever-changing genotype composed of a myriad of coexisting heterogeneous nuclei in a heterokaryon. Somatic meiotic-like recombination may endow Termitomyces with agility to cope with termite consumption by maximized genetic variability.
Fungus-growing termites (Macrotermitinae, Isoptera) have practiced farming with their fungal symbionts of the basidiomycete genus Termitomyces R. Heim (Lyophyllaceae, Agaricales) as the cultivars since ca. 24–34 million years ago in the African rainforest (Aanen and Eggleton 2005; Roberts et al. 2016). Decomposing activity on plant matters of Termitomyces symbionts appears complemented by that of termite gut microbiota, which was suggested by analyzing annotated draft genomes from Macrotermes natalensis (Haviland) and its Termitomyces symbiont along with gut metagenomes from individuals of various termite castes (Poulsen et al. 2014). Fungus-growing termites, much as leaf-cutting ants, cultivate only one fungal symbiont in a colony (Aanen et al. 2009; Katoh et al. 2002; Mueller et al. 2005; Shinzato et al. 2005), which is widely accepted as a genotypic monoculture involving only one genotype of a particular Termitomyces species. This is in sharp contrast to genotypic polycultures and species polycultures, which are commonly adopted in human agriculture and have widely been perceived as better farming practices than monocultures, because diverse systems can be more productive, stable, and resistant to invasions than less diverse systems (Cook-Patton et al. 2011).
Here we show that the Termitomyces symbiont of O. formosanus possesses a life cycle different from other basidiomycetes in having a somatic sexual process involving karyogamy and meiotic-like nuclear division during cell division at active hyphal tips (Fig. 2g–m). The sexual process empowers its growing mycelium a hyperdynamic genotype composed of a myriad of nuclear haplotypes and renders the symbiont with immense genetic variability. The sexual process was confirmed by cytological studies, whole-genome sequencing, and real-time quantitative PCR of four meiosis-specific genes. Pairing tests indicated that mating system of the Termitomyces symbiont may not be governed by heterogenic compatibility as in the typical life cycle found in heterothallic basidiomycetes (Fig. 2a–f).
Termitomyces cultures were isolated from a fruiting body T0984 collected from Nan-tou County, Taiwan, in 2009. The termite colony was not excavated to confirm its connection with T0984. However, by inoculating the conidia produced in culture by T0984 into colonies of O. formosanus (see below), we were able to confirm the symbiotic relationship between the two partners. Two types of fungal cultures were obtained or derived from this fruiting body: a heterokaryon (FB) and homokaryons (BS). FB was isolated directly from the stipe tissue and served as the inoculum for laboratory-reared termite colonies, from which the fungus was reisolated by obtaining single conidia from guts of worker termites from the colonies and was confirmed to be FB. The FB culture was originally obtained by paring away the stipe surface with a heated razor blade, removing a piece of the stipe tissue from underneath by sterilized forceps, and placing the removed tissue on 2% Difco malt extract agar (MEA, 20 g/L Difco malt extract, 20 g/L Difco agar). Emerging hyphal tips were excised and transferred to fresh MEA. BS cultures were obtained from single basidiospores and were used for pairing tests. Those BS cultures were initiated from spreading onto MEA a large number of basidiospores, which were collected by placing the pileus of T0984 on a sterilized plate for several hours, allowing basidiospores to fall from gills. Germination rates of the Termitomyces basidiospores were extremely low, and only one out of several hundred started to germinate after 2 days. A fine glass needle was used to gently guide germinating basidiospores bearing a short germ tube to clean areas on the agar, where agar blocks each overlain with a germinating basidiospore were excised and transferred to fresh MEA. We eventually obtained 43 BS isolates, whose growth rates varied greatly, 1–4 cm diam/month. Twenty of the BS cultures, i.e., BS02, BS03, BS04, BS05, BS06, BS09, BS10, BS11, BS14, BS17, BS18, BS19, BS21, BS26, BS27, BS31, BS32, BS35, BS38, and BS39, were randomly selected for subsequent pairing tests.
Termite rearing and fungal inoculation
Heterokaryons resulting from pairings between 20 homokaryons, which were sorted into four genotypes, i.e., A 1 B 1 , A 2 B 2 , A 1 B 2 , and A 2 B 1 , by haplotypes at MIP and RCB
A 1 B 1 × A 2 B 2
A 1 B 2 × A 2 B 1
A 2 B 2 × A 2 B 1 (common at A)
A 1 B 2 × A 2 B 2 (common at B)
BS11 × BS09, BS11 × BS32, BS18 × BS09, BS18 × BS27, BS18 × BS32, BS39 × BS09, BS39 × BS32
BS02 × BS03, BS17 × BS03, BS17 × BS05, BS17 × BS10
BS04 × BS31, BS06 × BS35, BS09 × BS31
BS14 × BS19, BS14 × BS38, BS21 × BS19, BS21 × BS32, BS21 × BS38, BS26 × BS19, BS26 × BS32, BS26 × BS38
DNA extraction, PCR, cloning, and sequencing
All of the cultures that we used in this study were subjected to sequencing of their nuclear ribosomal internal transcribed spacers (ITS), mitochondrial intermediate peptidase (MIP), and pheromone receptor protein homologue (RCB). Mycelia were grown in 100 mL of malt extract broth (20 g/L Difco malt extract) on a rotary shaker at 120 rpm for 6–8 weeks. They were harvested by filtration through Whatman No. 1 filter papers, freeze-dried, and stored at −20 °C. Total DNA from a dried fungal mycelium was extracted by using a SLA-32 automatic nucleic acid extractor (Taiwan Advanced Nanotech Inc.) with a TANBead® Fungi DNA extraction kit. The three nuclear DNA loci, ITS, MIP, and RCB were amplified with the primer pairs ITS1/ITS4 (White et al. 1990), MAF/MAR, and MR8F/MR8R, respectively, via polymerase chain reaction (PCR) in 96-well GeneAmpt® PCR System 9700 (Applied Biosystems, Foster City, California, USA) and sequenced with ABI Big-dye primer sequencing kit (Applied Biosystems). The primer pair and PCR condition of ITS followed the cited reference (White et al. 1990). See below for the primer pairs and the PCR condition of MIP and RCB. The resulting sequencing reactions were electrophoresed on an ABI 3730xl DNA sequencer. PCR products were cleaned with PCR-M™ clean-up system (Viogene-Biotek Corp., Hsi-chih, New Taipei City, Taiwan) following the manufacturer’s protocol. While PCR products of homokaryons were sequenced directly, those of heterokaryons were subjected to cloning process using pGEM®-T vector System I (Promega, Madison, Wisconsin, USA) or Zero Blunt TOP10 plasmid vector (Invitrogen Inc., Carlsbad, California, USA). The plasmids were extracted with plasmid DNA extraction kit Mini Plus™ (Viogene-Biotek Corp.). Multiple clones of a PCR product were sequenced.
The PCR condition was the same for MIP and RCB: ca. 100 ng template DNA, 1.0 mM MgCl2, 0.2 mM each dNTP, 0.2 μM each primer, and 1.25 U Easy-A High-Fidelity PCR Cloning Enzyme (Agilent Technologies, Santa Clara, California, USA) in a 25 μL reaction. Thermal cycling parameters were: an initial denaturation step at 95 °C for 2 min followed by 30 cycles of denaturing at 95 °C for 40 s, annealing at 57 °C for 30 s, extension at 72 °C for 1 min, and a 7 min final extension at 72 °C. The MIP locus used in the current study was a shorter version of that published in (James et al. 2004). The primer pair MAF/MAR (5′-AATGTGTCTGGTACCCGTTGTCCC-3′/5′-ATGTCCAAACTGGGTCTGGAAAGAT-3′) was designed to frame a 327 bp fragment, where 13 SNP sites were available. The RCB locus was amplified with the primer pair MR8F/MR8R (5′-AACCTGCATACCCTCTCTTCCCTAT-3′/5′-GTAATCCAACGGAAGCACCAAGCAT-3′), which framed a 289 bp fragment with seven SNP sites available. The reverse primer MR8R was located within RCB1 (Aimi et al. 2005), whereas the forward primer MR8F was located at a 5′-untranslated region, which was reached by chromosome walking from RCB1. The chromosome walking was done with TaKaRa LA PCR InVitro Cloning Kit (TaKaRa Bio Inc., Otsu, Shiga, Japan). Template DNAs were prepared according to the manufacturer’s instructions and were subjected to digestion with SalI. The digested DNA fragments were then ligated with nucleotide linkers and used as templates for two rounds of cassette amplification by PCR, which was conducted with two primer pairs SU1 (5′-GCATCGTTTGCCCAGACGACAGAA-3′)/SU2 (5′-ACGCCATGTAGAAACAAGTTCCTG-3′) and SU7-1 (5′-GCGTCGTTCGCCCAGACGACAGAA-3′)/SU7-2 (5′-ACGTCATGTAGAAACAAGTTCCTG-3′). After cassette amplification, all amplified DNA fragments were purified, cloned, and sequenced.
DNA marker loci for pairings and pairing tests
MIP and RCB were used as marker loci to confirm whether or not a pairing was successful, because Termitomyces species lack phenotypic markers. In other basidiomycetes, MIP is closely linked to mating locus A (James et al. 2004), whereas RCB is located within mating locus B (Aimi et al. 2005).
Pairings of the 20 homokaryotic BS cultures were conducted for pairs carrying different haplotypes at both MIP and RCB (A 1 B 1 × A 2 B 2 and A 1 B 2 × A 2 B 1 ), at MIP only (A 1 B 2 × A 2 B 2 , i.e., common-B), and at RCB only (A 2 B 2 × A 2 B 1 , i.e., common-A). Genotypes of the 20 homokaryons were determined and sorted into A 1 B 1 , A 2 B 2 , A 1 B 2 , and A 2 B 1 . For each of the four pairing groups shown in Table 1, we randomly selected three homokaryons of a genotype to pair with three homokaryons of another genotype, i.e., nine pairs in each pairing group. Homokaryons of a pair were placed 1 cm apart on a 6-cm petri plate containing MEA. Agar blocks containing hyphae at the confrontation line were isolated after 1 month for molecular typing. For homokaryons of those pairs with different haplotypes at both MIP and RCB, successful matings would result in heterokaryons within which both haplotypes of MIP and both of RCB coexist. In those cases where paired homokaryons carrying different haplotypes at only one of the two loci, resulting heterokaryons would be expected to carry either both haplotypes of MIP or both of RCB.
Nuclei of basidiospores, hyphae, and conidia were stained directly with DAPI (4′,6-diamidino-2-phenylindole in an antifade solution, Vector Laboratories, California, USA). Basidiospores were collected from the fruiting body T0984. Hyphae and conidia were obtained from culturing mycelia of FB, BSs, and paired BSs (Table 1) in 250 mL Erlenmeyer flasks, each of which contained a 100 mL liquid medium consisting of 3 g/L Bacto beef extract, 5 g/L Bacto peptone, and 15 g/L d-glucose, and incubated without shaking at 25 °C for 3 week. The stained fungal components were examined by fluorescence microscopy with a Zeiss LSM510 Meta confocal microscope equipped with C-Apochromat 63 ×/1.2 W corr objective. Two channels were used: DAPI channel (specifications: Two Photo Laser Excitation: 740 nm; Transmission 1.5%; Main Beam Splitter: KP650; Beam Splitter 2: mirror; BP 390–415IR; Detector Gain: 650; Amplifier Offset: −0.1) and DIC channel (specifications: Two Photo Laser Excitation: 740 nm; Detector Gain: 130; Amplifier Offset: −0.1).
Hyphae and conidia were also subjected to HCl-Giemsa stains (Giemsa’s azur eosin methylene blue solution, Merck KGaA, Darmstadt, Germany) in accordance with published protocols (Knox-Davies and Dickson 1960; Ward and Ciurysek 1962) with slight modification and is summarized as follows. A harvested mycelium was washed with MQ water, fixed in a freshly prepared Farmer’s fluid (95% ethanol: glacial acetic acid = 3:1) for 1 h, and successively washed in 95 and 70% ethanol, and immersed in MQ water for 10 min. It was then placed in 1 N HCl at room temperature for 10 min, hydrolyzed in 1 N HCl at 60 °C for 8 min, washed in MQ water with 5 changes, suspended in phosphate buffer (0.2% KH2PO4, 0.4% Na2HPO4·7H2O, pH 7.2) for 5 min, and stained in HCl-Giemsa for 15 min or longer if required. The stained mycelium was washed thoroughly with MQ water and phosphate buffer in series, and was mounted in MQ water. The stained fungal components were examined by light microscopy with a Leica DMRB microscope equipped with a PL Fluotar 100 ×/1.30 oil objective.
Slide culture technique was also used with small blocks (ca. 0.5 × 0.5 cm) of Difco oatmeal agar (OA) (BD, Sparks, Maryland, USA), each of which was inoculated with a culture, sandwiched between a cover slip and a microscope slide, and grown for 2 week. The hyphal mats and conidia that attached on the cover slip were then stained with DAPI and HCl-Giemsa as described above.
Fluorescence in situ hybridization (FISH)
Hyphae from cultures of the heterokaryon BS05 × BS17 and the homokaryon BS05 were harvested and fixed in freshly prepared Farmer’s fluid overnight. Hyphae were submerged within a drop of 45% acetic acid while being evenly spread onto a microscope slide prior to air-dried. Cell wall digestion was performed with 100 mg/mL lysing enzyme from Trichoderma harzianum (Sigma-Aldrich, St. Louis, Missouri, USA) dissolved in PME (50 mM PIPES, pH 6.7; 25 mM EGTA, pH 8; 5 mM MgSO4) for 2 h at 37 °C. Probe DNA was prepared with the ITS1-5.8S rDNA-ITS2 sequence of the FB culture amplified and labelled with digoxigenin-11-dUTP by using PCR DIG Labelling Mix (Roche Diagnostics GmbH, Penzberg, Germany). The PCR condition is as described above for ITS. The FISH procedure (Chung et al. 2008) is briefly described as follows. The nuclei on the microscope slide were denatured in 70% deionized formamide in 2× SSC (0.15 M NaCl, 0.015 M sodium citrate, pH 7.5) at 80 °C for 60 s. Hybridization mixture was prepared from 50% deionized formamide, 2× SSC, sheared salmon sperm DNA (1 µg/µL), 10% dextran sulfate, and probe DNA (10–100 ng in 20 µL per microscope slide). Hybridization was performed in a moisture chamber at 37 °C overnight. Hybridization signals were visualized using a rhodamine-conjugated anti-digoxigenin antibody (Roche Diagnostics GmbH). The nuclei were counterstained with DAPI.
For a fungal culture, FISH preparations were conducted for more than ten times, from each of which eight microscope slides were resulted. More than 20 images of a nuclear stage, i.e., prophase, metaphase, anaphase, or telophase, with clear FISH signals were taken from each FISH preparation.
PCR-free library construction and high throughput sequencing
Genomic DNAs were extracted from dried mycelia of two homokaryons (BS05 and BS17) and a heterokaryon (BS05 × BS17) by using a SLA-32 automatic nucleic acid extractor with a TANBead® Fungi DNA extraction kit. Approximately 1 μg of a genomic DNA was sonicated to ~350 bp with the Covaris M220 system using the following parameters: duty factor 20%, peak/display power 50 W, 200 cycles per burst, 65 s, 20 °C. The sonicated DNA was purified, end-repaired, A-tailed and ligated with adaptors according to the manufacture’s guide (Illumina Truseq DNA PCR-Free LT library prep kit) followed by purification and sequencing. A paired-end DNA-seq library was sequenced using Illumina HiSeq 2500 platform per manufacturer’s instructions. Sequencing was performed up to 250 cycles. Image analysis and base calling were performed with the standard Illumina pipeline. In total 17,621,957, 23,362,228, and 18,348,369 reads were aligned to the reference genome Termitomyces sp. J132 (Poulsen et al. 2014), with the estimated depths of 32.3×, 42.8×, and 33.6× for BS05 × BS17, BS05, and BS17, respectively.
Alignments, heterozygous SNP calling, detection of recombinants, and haplotype inference
After the adapter trimming by cutadapt 1.8.1 (Martin 2011), the reads were aligned to the reference genome of Termitomyces sp. J132 (Poulsen et al. 2014), downloaded from http://gigadb.org/dataset/100056, by using Bowtie 2 with local alignment mode to optimize the mapability (Langmead and Salzberg 2012). Alignments of the homokaryon and heterokaryon samples are publicly available at NCBI as Study SRP073090.
To identify potential recombinants, we first searched for heterozygous SNPs with two alleles, as a proxy to the parental alleles. During the SNP calling, the alignments with low mapping quality (MAPQ score <10) were skipped. A heterozygous SNP was identified when the following conditions were met: the depth was ≥10 reads, the two major alleles accounted for ≥90% of the reads, and the difference between them was ≤20%. In total we found 71.5, 60.9, and 74.7 K heterozygous SNPs in BS05 × BS17, BS05, and BS17, respectively. Due to the high variability of fungus genomes, a large number of the SNPs were likely due to the genetic difference between our strains and the reference strain. We further filtered out the SNPs from the heterokaryon that were also detected in either of the two homokaryons.
Recombinants in the homokaryons and heterokaryon
BS05 × BS17 a
Filtered BS05 × BS17 a
Number of reads
Number of reads
Number of reads
Number of reads
Non-recombinants (2 haplotype)
Recombinants (30 haplotypes)
Reverse transcription PCR (RT-PCR) and real-time quantitative PCR (RT-qPCR)
Total RNA was isolated from a mycelial sample and a gill sample using TRIzol (Invitrogen Inc.) following the manufacturer’s protocol. cDNA synthesis was performed using the First-Strand cDNA Synthesis Kit (Roche Diagnostics GmbH) and anchored-oligo(dT)18 primers. RT-qPCR reactions were performed using FastStart Universal SYBR Green Master (Roche Diagnostics GmbH). Translation elongation factor 1 alpha (TEF1α) was used as the internal normalization control with the primer pair GGTGTCAGGCAGCTCATCGT/CGGTCCTCACTCCACTTGGT. PCR was performed on the QuantStudio 12K Flex ABI 7500 real-time PCR system in 8-tube strips. The exon-spanning primer pairs used for RT-qPCR analyses of SPO11, DMC1, MSH4, and MLH1 are: CCAGCCACGAAACGAGACAT/GCTCAAGAGTGGCAGCGATAT, AAATATTCTCTACGCCCGTGCAT/AAGTCCTTGTCCTCGGCAAA, GCGCCTTGCGAAGATAGAGA/CGATTGCGATGGGCCTTA, and TCTGCACTGAAAGAGCTGGTAGA/GGTCCGATTTGCGTATTCCA, respectively. The RT-qPCR reaction was performed in triplicate for each sample. Specificity of the amplifications and Ct values were analyzed using ABI PRISM dissociation curve analysis software.
The mating system of Termitomyces mushrooms has not been verified by pairing studies previously, being inferred heterothallic only in a study of the Termitomyces symbiont of Macrotermes natalensis from South Africa (de Fine Licht et al. 2005). We set out to pair 20 homokaryons (Table 1), which were obtained from the fruiting body T0984 produced by a Termitomyces symbiont of O. formosanus in Taiwan. The molecular markers that we used had two haplotypes (alleles) at each of the two gene loci, mitochondrial intermediate peptidase (MIP), which is closely linked to mating type locus A in other studied mushrooms (James et al. 2004), and pheromone receptor (**RCB), which is a region within mating type locus B in other mushrooms (Aimi et al. 2005; Brown and Casselton 2001). Successful matings would render both haplotypes of MIP, denoted as A 1 and A 2 , and both of RCB, denoted as B 1 and B 2 , coexisting within a resulting heterokaryon. Cloning and sequencing amplicons of the two loci from the resulting heterokaryons confirmed that the two original haplotypes had come together in a heterokaryon as we expected from successful matings (Table 1). In other basidiomycetes, mating behavior dictated by two loci is considered tetrapolar heterothallism, where compatibility between paired homokaryons requires different haplotypes at each locus, whereas incompatibility occurs when only one or both of the two loci has the same haplotype (Brown and Casselton 2001; Raper 1966). Interestingly, pairings between homokaryons of the Termitomyces symbiont that were heterozygous at either MIP only (A 1 B 2 × A 2 B 2 ) or RCB only (A 2 B 2 × A 2 B 1 ) also resulted in heterokaryons with a normal mycelial growth, suggesting that self-incompatible mating is not strictly followed by or even lacked in the Termitomyces symbiont.
Nuclear behavior revealed by cytological studies
Cytological studies were also extended to homokaryons derived from single basidiospores, which were uninucleate but germinated into mycelia each containing both dikaryotic and trikaryotic cells. Interestingly, the hyphal cells divided in exactly the same fashion as those of heterokaryons. The sexual process revealed in the homokaryons is similar to the same-sex mating reported from the human pathogenic fungus Cryptococcus neoformans (Lin et al. 2005).
Conidia are commonly perceived as asexual spores of fungi, but in the Termitomyces symbiont, regardless of whether conidia were produced from heterokaryons or homokaryons, their nuclei, two or three per conidium, underwent karyogamy and a meiotic-like process as those of active hyphal cells (Fig. 4i, k). Termitomyces conidia, unlike those of other fungi which serve as clonally propagating and dispersal agents, are produced within nodules at fungus gardens within sequestered termite colonies. Nodules, which contain thin-walled, inflated cells and hyphae in addition to conidia, are consumed by termite workers as an important part of the termite diets (Batra and Batra 1979). Conidia appear to be the only fungal elements surviving the alimentary tracts. Fecal balls excreted and deposited onto fungus gardens by worker termites thus mainly contain conidia and ingested foraged plant debris. Conidia germinate within hours after fecal ball deposition to resume the fungal growth at fungus gardens.
Occurrence of genetic recombination at somatic stage

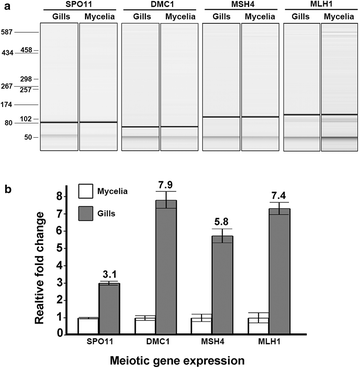

Expression of meiosis-specific genes
Sexual process in the Termitomyces mushroom
The novel life cycle that we present here for the Termitomyces symbiont represents a highly interesting case in evolution of sex, where the fungus maximizes the sexual process by vigorously reshuffling its genetic makeup in a meiotic-like fashion during each somatic cell division and conidial production irrespective of whether or not mating has occurred. It is to be found out whether or not this process continues in tissue of the fruiting body and terminates at basidia. Basidia are the only sites of sexual activity known in other basidiomycetes, where sex (karyogamy and meiosis) and reproduction (basidiospore formation) are tightly coupled (Aanen and Hoekstra 2007). Sex of the Termitomyces symbiont prevails at somatic stage and looks as if uncoupled with reproduction process except for the brief duration of basidiospore production. Nonetheless, growth of vegetative hyphae in fungus gardens can readily be diverted to conidial production after colonization of fecal balls, and conidia are sexual rather than asexual. The coupling between sex and reproduction in the Termitomyces symbiont is not tight, but more frequent than what it appears by way of conidial production.
Sexual processes have been widely regarded as being costlier than asexual ones (Barton and Charlesworth 1998; Bell 1982; Burt 2000; Maynard Smith 1971; Otto 2009; Williams 1975). The “cost of meiosis” or “cost of sex” remains a puzzling question in evolutionary biology despite the fact that sex in general has been accepted by many for generating genetically variable progeny, upon which natural selection can act to accelerate evolution for adaption and for eliminating deleterious mutations. Nests of fungus-growing termites are sequestered environments, where Termitomyces fungi are essentially sheltered from outside (Mueller et al. 2005). The nests are generally considered homeostatic with fine-tuned microclimates, which are characterized by high moistures, elevated temperatures ca. 30 °C, and high CO2 concentrations, in favor of Termitomyces growth (Korb 2003; Thomas 1987; Turner 2004) but stressful to other microbes, which are relatively low in diversities (Cooke and Whipps 1987). If the nest environments are in homeostasis and if sex is for adaptation, what could be the driving force propelling the Termitomyces symbiont to keep sexuality over asexuality? Mycelia and nodules of the symbiont are frequently and constantly under termite consumption, which undoubtedly imposes an immediate, continuous pressure upon the symbiont, whose cellular components, notably nuclei and DNA-containing organelles, will be digested if they fail to enter indigestible conidia. Conidia are thus like Noah’s ark in that only a certain number or percentage of cellular components can gain entrance into them to ultimately survive the termite gut passage. Strong competition in entering conidia among rivalling cellular components may exist and exert a direct driving force upon the symbiont to produce conidia high in genetic variability as opposed to clonality in order to adapt to the next round of termite consumption.
Choice of using FISH in detecting ploidy level of nuclei at hyphal tips
Flow cytometry has been employed extensively in detecting ploidy level of nuclei. However, using this method to study nuclei located at hyphal tips is extremely difficult, if not infeasible, unless hyphal tip cells could be excised and collected selectively to pass through the narrowing channel of a flow cytometer. FISH with rDNA (ITS1-5.8S rDNA-ITS2) as the probe DNA, on the other hand, is a useful method for visualizing and determining ploidy level of nuclei at hyphal tips, where the meiotic-like divisions occur. The images shown in Fig. 4m–x are representatives at various nuclear stages observed during our FISH experiments. For example, the nucleus at Fig. 4n was unmistakably identified as a diploid at prophase because it had four FISH signals on four stringy chromatins, which means a pair of 45S rDNA in a diploid genome undergoing a duplication process at this stage. Nuclei in Fig. 4v–x were haploid resulting from meiotic-like division because there was only one FISH signal detected in each of the nuclei.
Possible account for recombination events occurring in the homokaryon
Fungal genomes are highly dynamic, rich in chromosomal rearrangement (Heitman et al. 2013; Perkins 1997). In the Termitomyces symbiont, recombinants were detected not only in the heterokaryon BS05 × BS17 but also in the homokaryon BS05. We excluded the possibility that the recombinants in the homokaryon sample originated from contaminants by checking reads at four protein-coding gene loci listed in Additional file 2: Table S2, where only one parental haplotype was detected at each locus.
Recombination sites at the heterokaryon that resulted from plasmogamy between homokaryon I and homokaryon II were detected between loci c and d and between loci y and z, while those at homokaryon I were between loci c and d and between loci d and e. In the heterokaryon, the recombination site between loci y and z is considered reliable but the site between loci c and d was filtered out because it was shared by homokaryon I and the heterokaryon. The recombination site between loci d and e was unique to homokaryon I, becoming possible after the chromosome translocation event at step 3.
Mating system of the Termitomyces symbiont not dictated by heterogenic compatibility
Two basic mating systems are known in mushrooms: homothallic (self-fertile) and heterothallic (self-sterile). Only 10% of the mushroom species have a homothallic mating system and can complete a life cycle without mating. The others have a heterothallic mating system and require fusion between mycelia with different mating types, which, depending on mushroom species, are determined by either one locus (bipolar heterothallism) or two loci (tetrapolar heterothallism) (Whitehouse 1949). Compatibility can only be achieved when the two mates have different alleles at each locus, i.e., heterogenic compatibility (Esser 2006).
MIP and RCB, as initially planned, were used as markers to suggest the mating system of Termitomyces. These markers were assumed to be associated with the mating type loci A and B (Aimi et al. 2005; James et al. 2004), with the mating system of the Termitomyces symbiont being assumed to be tetrapolar heterothallism. This assumption was thus made simply because there happened to be exactly two haplotypes for each of the two marker loci among the 45 homokaryons that we obtained from T0984. While capability of mating between some homokaryons has been verified in our study, it remains uncertain if mating is indeed a necessity for the Termitomyces symbiont to complete a life cycle. Definite answers will be possible only after a reliable fruiting system becomes available. If mating is eventually proven to be required, only heterokaryons will produce fruiting bodies, while homokaryons remain fruitless. Otherwise, both homokaryons and heterokaryons can fruit.
The only previous study concerning the mating system of the Termitomyces symbiont of Macrotermes natalensis from South Africa (de Fine Licht et al. 2005) suggests that the fungal symbiont is heterothallic, requiring two compatible mating types to complete a life cycle. It is because two haplotypes of internal transcribed spacers (ITS) of nuclear ribosomal DNA were detected in cultures obtained from fungus gardens but only one of the two haplotypes was in each of the five single basidiospore cultures that they obtained. Despite the fact that their results agree with data showing that Termitomyces cultures isolated from termite colonies are heterokaryotic (Aanen et al. 2009), uncertainty remains because extensive pairings between single basidiospore isolates (homokaryons) were not conducted and, moreover, a reliable system for mushroom fruiting was not developed.
Somatic genetic recombination known or suspected to exist in other basidiomycetes
In many basidiomycetes, somatic genetic recombination does not normally occur but can be triggered in a heterokaryon upon its confrontation with a homokaryon (the Buller phenomenon) during an incompatible heterokaryon-homokaryon mating, (A 1 B 2 + A 2 B 1 ) × A 1 B 1 . The resulting recombinant A 2 B 2 nuclei then migrate from the heterokaryon into the homokaryon to pair with A 1 B 1 nuclei (Anderson and Kohn 2007; Raper 1966). In addition to the Buller phenomenon, somatic genetic recombination in basidiomycetes is known to occur in three different ways: a meiotic-like process, parasexuality, and internuclear specific factor transfer (Anderson and Kohn 2007). A meiotic-like process is more likely for the Termitomyces symbiont, because specific factor transfer is highly unlikely to be genome-wide, and parasexuality occurs in extremely low frequencies.
We suspect that the novel life cycle that we describe in this study can also be found in other Termitomyces species and in basidiomycetes of other genera. Intragenic recombination has been reported from EF1a and other DNA regions among Termitomyces isolates from 31 colonies of Macrotermes natalensis in South Africa, which apparently belonged to a breeding population but curiously lacked apparent mushroom fruiting (de Fine Licht et al. 2006). Matings between compatible haploid monokaryons in two honey mushrooms, Armillaria gallica (Peabody et al. 2005) and Armillaria tabescens (Grillo et al. 2000), resulted in a haploid dikaryon and subsequently a persistent diploid monokaryon by karyogamy. Tissue of fruiting bodies, however, contained haploid dikaryotic cells and was shown to be genetically mosaic, implying somatic genetic recombination during haploidization. Somatic genetic recombination were occasionally detected within dikaryons of Schizophyllum commune (Frankel 1979; Parag 1962), and episodic somatic recombination was monitored and detected in culture of dikaryons for 18 months (Clark and Anderson 2004).
Despite the fact that the sexual process that we found in the Termitomyces mycelia is much like meiosis, we still have reservation in considering it typical meiosis mainly due to: (1) karyogamy within a hyphal tip cell involving fusion of two nuclei in some cases and three nuclei in other cases, and (2) further confirmation, in addition to our cytological studies, needed on ploidy changes, especially in those cases where three nuclei are involved. Somatic meiotic-like recombination in the Termitomyces symbiont is seemingly analogous with VDJ recombination known in human immune system in being able to recombine genetic material somatically. Further studies are needed to investigate whether or not meiotic-like recombination also confers to the Termitomyces symbiont similar vigilance and agility to the human immune system in quickly responding to invaders. Our study emphasizes the necessity of further understanding the genetics of Termitomyces symbionts, which are organisms centered on the stage of termite agriculture, in order to learn what and how meiotic-like recombination affects the termite agroecosystem. Our findings are likely to generate a profound influence on how we perceive termite agriculture as well as the endurance of Termitomyces monoculture with termites over tens of millions of years.
HMH, MCC, ANS, CRL, MJF, BCHC, and YMJ collected data; HMH, MCC, and YMJ analyzed data; YMJ wrote the manuscript; WNC collected the Termitomyces fruiting body; CYL, CCH, and JCC commented on the manuscript; MCC, CYL, CCH, and YMJ were project leaders. All authors read and approved the final manuscript.
We thank Jack D. Rogers, Washington State University, USA, for reading the manuscript and Archana Allishe, Academia Sinica, for helping the submission of SRA data to NCBI.
The authors declare that they have no competing interests.
Availability of data and materials
The datasets supporting the conclusions of this article are available at NCBI as Study SRP073090 in https://www.ncbi.nlm.nih.gov.
Consent for publication
Ethics approval and consent to participate
This work was supported by Ministry of Science and Technology (formerly National Science Council, Grant Number NSC 99-2321-B-001-030-MY3) of Taiwan, by Summit Project, Academia Sinica, and by Innovative Translational Agricultural Research, Academia Sinica to Y-MJ.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.
