Do halophytes and glycophytes differ in their interactions with arbuscular mycorrhizal fungi under salt stress? A meta-analysis
Botanical Studies volume 61, Article number: 13 (2020)
Halophytes are better than glycophytes at employing mechanisms to avoid salt injury, but both types of plants can undergo damage due to high soil salinity. Arbuscular mycorrhizal fungi (AMF) can mitigate the damage from salt stress in both halophytes and glycophytes by enhancing salt tolerance and improving energy efficiency. However, variations in mycorrhizal symbiotic efficiency between halophytes and glycophytes were still poorly understood. Therefore, we evaluated the magnitude of AMF effects on plant growth and determined the mechanisms that regulate the growth response of halophytes and glycophytes by performing a meta-analysis of 916 studies (from 182 publications).
Arbuscular mycorrhizal fungi significantly enhance biomass accumulation, osmolytes synthesis (soluble sugar and soluble protein), nutrients acquisition (nitrogen, phosphorus, and potassium ion), antioxidant enzyme activities (superoxide dismutase and catalase), and photosynthetic capacity (chlorophyll and carotenoid contents, photosynthetic rate, stomatal conductance, and transpiration rate). AMF also substantially decreased sodium ion acquisition and malondialdehyde levels in both halophytes and glycophytes under salt stress conditions. Mycorrhizal halophytes deploy inorganic ions (potassium and calcium ions) and limited organic osmolytes (proline and soluble sugar) to achieve energy-efficient osmotic adjustment and further promote biomass accumulation. Mycorrhizal glycophytes depend on the combined actions of soluble sugar accumulation, nutrients acquisition, sodium ion exclusion, superoxide dismutase elevation, and chlorophyll synthesis to achieve biomass accumulation.
Arbuscular mycorrhizal fungi inoculation is complementary to plant function under salt stress conditions, not only facilitating energy acquisition but also redistributing energy from stress defence to growth. Glycophytes are more dependent on AMF symbiosis than halophytes under salt stress conditions.
Soil salinity is a devastating environmental stress globally that causes severe agronomical and ecological problems, particularly in arid and semiarid regions (Estrada et al. 2013b; Himabindu et al. 2016). From an agronomical standpoint, salinity restricts the area of agricultural land (Sardo and Hamdy 2005), limits the productivity of agricultural crops (Apse 1999), reduces the potential utilization of glycophytes as crops, and impacts livelihood choices and land use strategies (Anik et al. 2018), which further threatens human dietary and food security (Rewald et al. 2013). From an ecological standpoint, salinity decreases plant and microbe abundances (Folli-Pereira et al. 2013), destroys ecosystem diversity (Chaves et al. 2009), accelerates soil and environmental degradation processes (Estrada et al. 2013b), and, consequently, affects the entire food chain. Faster-than-predicted climate change has exacerbated the severity of salt stress (Chaves et al. 2009; Ilangumaran and Smith 2017), and saline soils continue to become more prevalent (Anik et al. 2018). Indeed, the area of land affected by salinity is estimated to be increasing at a rate of 15 to 20 million hectares per year (Sardo and Hamdy 2005), and the economic loss caused by soil salinity is approximately 27.3 billion dollars (Suarez et al. 2015).
Soil salinity initially impairs plants by causing osmotic stress, which induces water deficit and results in physiological drought (Evelin et al. 2009; Munns and Tester 2008). Specific salt ions, such as sodium and chloride ions, cause toxic ionic stress and nutrient deficiency (Munns and Tester 2008; Osman 2018). As a consequence of osmotic and ionic stresses, a series of secondary physiological stresses may occur, such as oxidative damage caused by reactive oxygen species (ROS) (Egamberdieva et al. 2017; Zhu 2001) and photosynthesis limitation (Chen et al. 2017), which synergistically impair plant growth. However, plants respond differently with regard to their tolerance to salinity and can be divided into salt-tolerant halophytes and salt-sensitive glycophytes depending on their different growth adaptations (Kosová et al. 2013; Munns and Tester 2008). Halophytes employ effective salt-tolerance mechanisms to avoid salt damage and stay relatively “calm” (Tester 2003), whereas glycophytes “panic” under salt stress conditions due to limited salt-tolerance mechanisms (Munns and Tester 2008; Zhu 2001). Although the responses of halophytes and glycophytes vary qualitatively and quantitatively under high salt stress, both types of plants will be injured at the early vegetative stage (Himabindu et al. 2016; Munns and Tester 2008).
Arbuscular mycorrhizal fungi (AMF) are beneficial below-ground microbes that form symbiotic relationships with over 80% terrestrial plant species, including halophytes and glycophytes (Avis et al. 2008; Estrada et al. 2013b; Evelin et al. 2009). AMF can improve the growth performance and salinity tolerance of host plants by mediating critical physiological processes, such as facilitating water and nutrient uptake (Alkaraki 2000; Balliu et al. 2015; Chen et al. 2017; Mohammad et al. 2003; Zuccarini 2007), maintaining ion balance (Garg and Bhandari 2016), protecting cells from oxidative damage (He et al. 2007; Yang et al. 2016), and increasing photosynthetic ability (Chen et al. 2017; Estrada et al. 2013b; Sheng et al. 2008). As salt-sensitive crops are closely related to people’s lives and affect food safety, studies about AMF inoculation under salt stress have mainly concentrated on glycophytic crops, such as maize (Estrada et al. 2013a; Liu et al. 2016; Sheng et al. 2008; Wu et al. 2005; Zhang et al. 2018), wheat (Liu 2016; Mardukhi et al. 2011; Talaat and Shawky 2011), tomato (Balliu et al. 2015; He and Huang 2013; Khalloufi et al. 2017; Ouziad et al. 2006), and pepper (Hegazi et al. 2017; Kaya et al. 2009; Turkmen et al. 2008), and so forth.
Recently, a growing number of publications have evaluated interactions between AMF and halophytes under salt stress conditions, including Asteriscus maritimus (Estrada et al. 2013b), Puccinellia tenuiflora (Liu et al. 2018), Phragmites australis (Algarni 2006), for soil phytoremediation and carbon dioxide sequestration in salinized environments (Hasanuzzaman et al. 2015; Sardo and Hamdy 2005). Overall, AMF inoculation efficiency, as determined by different parameters, varies among host plant species with different salt tolerant capabilities (Alkaraki 2001; Ciftci et al. 2010; Fan et al. 2012). However, previous studies have not provided any clues regarding the mechanisms that lead to these differences, which will impede the effective utilization of AMF in agriculture and ecosystem (Folli-Pereira et al. 2013).
Meta-analysis offers a quantitative synthesis method to provide meaningful summaries and uncover new patterns or to reach a consensus among the findings of multiple studies (Hedges et al. 1999; Lehmann and Rillig 2015). Although several scholars have conducted meta-analyses on the effectiveness of AMF on different predictor variables, such as plant types, soil types, AMF inoculums and salinity degrees (Auge et al. 2014; Chandrasekaran et al. 2014, 2016), none have focused explicitly on the effects of AMF inoculation on different salt-tolerant plant species and determined the mechanisms that lead to variation in growth responses. Recently, we conducted a meta-analysis reported that the biomass improvements in salt-sensitive plants were higher than that in salt-tolerant plants after plant growth promoting rhizobacteria (PGPR) inoculation under salt stress conditions, and plant salt tolerance is a determining factor affecting the mechanisms of PGPR promotion (Pan et al. 2019). Do salt-tolerant halophytes and salt-sensitive glycophytes differ in their interaction with AMF under salt stress? Are glycophytes more dependent on mycorrhizal symbiosis than halophytes under salt stress conditions? It is still an enigma. Worthy of mention is that the growing number of Chinese publications gauging interactions between AMF and plants under salt stress conditions, that would often be overlooked in conventional meta-analysis, provides a useful opportunity to apply meta-analysis to resolve this enigma.
Thus, the aim of the present study was to (1) evaluate AMF inoculation efficiency on the biomass accumulation, osmotic adjustment, nutrient acquisition, antioxidative ability, and photosynthetic capacity of both halophytes and glycophytes under salt stress conditions, and (2) uncover the underlying mechanisms of growth promotion in halophytes and glycophytes derived from mutualistic interactions between plants and AMF under salt stress conditions.
Materials and methods
Literature search and eligibility criteria
We employed three methods to retrieve relevant publications published before August 2018 for this meta-analysis. We first collected publications from the Web of Science using the keywords as in the methods of previous meta-analyses (Auge et al. 2014; Chandrasekaran et al. 2014, 2016). Meanwhile, we collected publications from the China Knowledge Resource Integrated Database (CNKI) using keyword with Chinese word. We then checked the examined reference list cited in the publications identified from the keyword search. Retrieved publications written in English and Chinese were screened to satisfy the following criteria: (1) The experimental design included parallel control and AMF treatments; (2) Plants were only inoculated with AMF, and there was no interaction with other microbes; (3) Plants were exposed to saline conditions or exposed to salt treatments through irrigation; (4) Plants were grown in pots.
One publication may yield multiple studies, such as different plant species inoculated with different AMF under the same or different salt stresses, which we did not consider to be a violation of independence. Although halophytes are classified in a variety of ways and the plant responses to environmental stresses are very dynamic, plants were only divided into halophytes and glycophytes according to the salt tolerance description in the original publications (see Additional file 1). We hypothesized that salt levels would cause a stress response in the halophytes and glycophytes in the original publication. Finally, 916 studies were extracted from 182 publications from February 1983 to August 2018 describing the effects of AMF inoculation under saline conditions (see Additional files 1, 2).
Data category and database construction
Salt tolerance has complex traits that involves various mechanisms in plants (Zhang and Shi 2013). Thus, we analyzed the magnitudes and mechanisms of growth promotion in halophytes and glycophytes after AMF inoculation by collecting 21 response parameters, including biomass (total biomass, shoot biomass, and root biomass), nutrient uptake (nitrogen, phosphorus, potassium ion, calcium ion, magnesium ion, and sodium ion), osmolyte accumulation (proline, soluble sugar, soluble protein), antioxidative defense (superoxide dismutase, catalase, and malondialdehyde), and photosynthetic capacity (chlorophyll a, chlorophyll b, carotenoid, net photosynthetic rate, stomatal conductance, and transpiration rate) (Table 1).
Means, standard deviations (SD), and sample sizes (n) in the control and AMF inoculation groups under salt stress or saline conditions were collected from tables in the original publications to build a database. WebPlotDigitizer software was used to estimate values when results were presented graphically (Worchel et al. 2013). Standard errors (SE) reported in tables and graphs were all transformed to SD according to the equation (\(SD = SE \times \sqrt n\)) (Chandrasekaran et al. 2016). We also assumed that unidentified error bars represented SD.
Effect size calculations and results analysis
Effect size (lnR) is the natural log of response ratio (R), which is the ratio of the outcome in the AMF-treated group to that of the control group (Rosenberg et al. 2000). We evaluated the effects of AMF inoculation on halophytes and glycophytes under salt stress by estimating lnR and variance (V) with a random effect model in the software MetaWin version 2.1.4 (Sinauer Associates, Inc. Sunderland, MA, USA). lnR and V were calculated using Eqs. 1 and 2 (Hedges et al. 1999; Chandrasekaran et al. 2014), as follows:
where XT, ST, and NT are the mean, SD, and n of response parameters with AMF inoculation, respectively. XC, SC, and NC are the mean, SD, and n of response parameters without AMF inoculation, respectively. To evaluate AMF inoculation efficiency, back-transformed lnR (reported as a percent change under AMF inoculation) was calculated using the equation (exp.(lnR) − 1) * 100 (Chandrasekaran et al. 2014). Zero value indicates no difference in the response parameter between the control and AMF inoculation treatments. Positive and negative values indicate an increase and a decrease in the measured parameter, respectively (Auge et al. 2014; Chandrasekaran et al. 2014). To test whether lnR was significantly different from zero, a bootstrapping approach with 4999 iterations and implemented bias-correction was used to estimate confidence intervals (95% CI) (Chandrasekaran et al. 2016). The difference between halophytes and glycophytes was compared by Pbetween (Pb) associated with Qbetween statistics (Qb) (Yang et al. 2015).
We performed Spearman correlation analysis and calculated the fail-safe number of Rosenthal methods to examine whether our database was publication-biased using software MetaWin version 2.1 (Chandrasekaran et al. 2016; Pan et al. 2019; Yang et al. 2015). The correlations of lnR with different parameters were examined by single regression analysis using SPSS 17.0 software (SPSS for Windows, Version 17.0, Chicago, USA).
The host plants in this meta-analysis belonged to 26 families and included 74 glycophyte species and 14 halophyte species (Additional file 2: Table S1). Funneliformis mosseae (35.90%) and Rhizophagus irregularis (16.05%) were the major AMF inoculants, accounting for approximately half of all the studies (see Additional file 1 for raw data). The results of Spearman correlation analysis showed significant correlations between lnR and n for shoot biomass, root biomass, SS, P, K+, Ca2+, and Mg2+ (Table 1), which indicated that slight publication bias for these response parameters. However, the fail-safe numbers of these parameters were much larger than 5S + 10 (S indicates studies numbers), which indicated that the publication bias could safely be ignored and would not change the meaning of the results (Table 1).

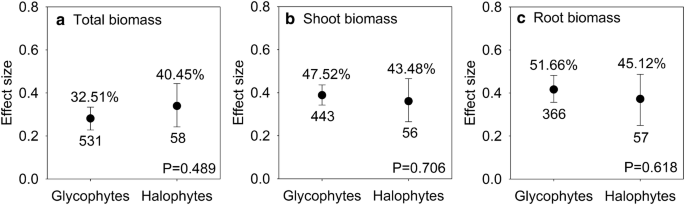

Effects of AMF inoculation on biomass in halophytes and glycophytes
AMF inoculation significantly increased total biomass, shoot biomass, and root biomass by 33.64% (95% CI, 27.13% to 39.1%), 47.7% (95% CI, 40.5% to 53.73%), and 50.68% (95% CI, 41.91% to 59.9%) compared with levels in control, respectively (Table 1). However, there was no significant difference between mycorrhizal halophytes and mycorrhizal glycophytes in biomass accumulation under salt stress conditions (P > 0.05) (Fig. 1).
Effects of AMF inoculation on osmolytes in halophytes and glycophytes
In response to salinity stress, mycorrhizal halophytes and mycorrhizal glycophytes perform differently. Pro (95% CI, − 14.02% to − 3.4%) decreased significantly but SS (95% CI, 17.4% to 25.62%) and SP (95% CI, 19.57% to 28.47%) increased markedly in glycophytes under salt stress. Conversely, no significant lnR was observed in Pro (95% CI, − 18.46% to 27.43%), SS (95% CI, − 9.3% to 9.12%), and SP (95% CI, − 43.4% to 34.57%) in halophytes, as the 95% CIs overlapped with zero (Fig. 2).

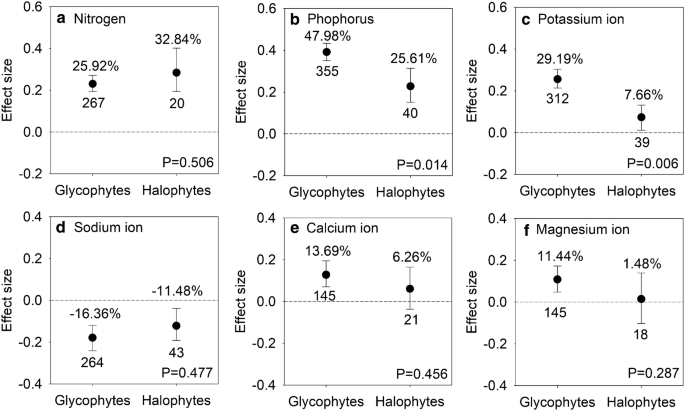

Effects of AMF inoculation on nutrient uptake in halophytes and glycophytes
Uptake of N (95% CI, 22.14% to 30.99%), P (95% CI, 40.49% to 52.2%), and K+ (95% CI, 22.14% to 32.31%) considerately increased but the uptake of Na+ (95% CI, − 20.54% to − 11.31%) remarkedly decreased in plants after AMF inoculation under salt stress conditions (Table 1). There was no significant difference between mycorrhizal halophytes and mycorrhizal glycophytes in N uptake under salt stress conditions (P > 0.05) (Fig. 3a). The lnRs of P and K+ were higher in glycophytes than in halophytes (P < 0.05) (Figs. 3b, c). Ca2+ (95% CI, 7.25% to 21.43%) and Mg2+ (95% CI, 4.89% to 18.8%) were only significantly increased in mycorrhizal glycophytes because the 95% CIs did not overlap with zero (Fig. 3e, f).
Effects of AMF inoculation on antioxidants and MDA in halophytes and glycophytes
Mycorrhizal glycophytes (95% CI, 17.82% to 29.29%) had significantly increased SOD activities, while mycorrhizal halophytes (95% CI, − 5.24% to 11.53%) showed no significant increase (Fig. 4a). Significantly positive impacts on CAT and negative impacts on MDA were observed in both mycorrhizal halophytes and mycorrhizal glycophytes under salt stress, and there was no difference between AMF-inoculated halophytes and AMF-inoculated glycophytes (Fig. 4b, c).

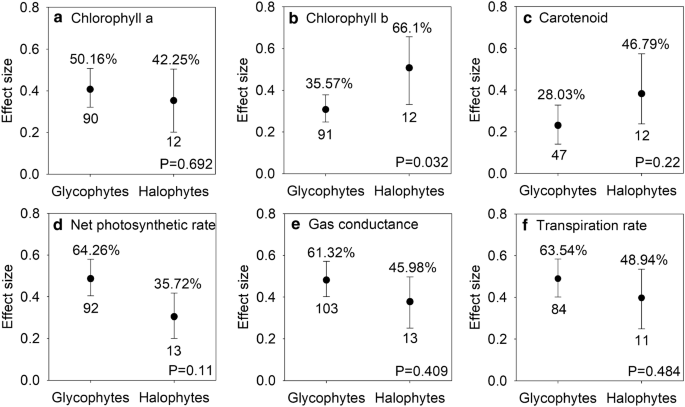

Effects of AMF inoculation on photosynthesis in halophytes and glycophytes
AMF inoculation dramatically increased Chla, Chlb, and Car by 49.18% (95% CI, 37.71% to 63.23%), 39.1% (95% CI, 31% to 47.7%), and 30.99% (95% CI, 19.72% to 44.77%), respectively (Table 1). Significant difference was only found in Chlb, mycorrhizal halophytes increased higher than that in mycorrhizal glycophytes under salt stress conditions (Fig. 5b). Pn, Gs, and Tr also significantly increased by 58.41% (95% CI, 47.7% to 75.07%), 59.99% (95% CI, 49.18% to 71.6%), and 61.61% (95% CI, 49.18% to 75.07%) compared with levels in control, respectively (Table 1), but there was no significant difference between mycorrhizal halophytes and mycorrhizal glycophytes under salt stress conditions (Fig. 5d–f).
Contributions of the different parameters to biomass promotion
The lnRs of total biomass correlated positively with the lnRs of SS, N, P, K+, SOD, Chla, and Chlb whilst negatively correlated with the lnRs of Na+ and MDA in mycorrhizal glycophytes under salt stress conditions (Fig. 6a). However, positive relationships between lnRs of total biomass and lnRs of K+, Ca2+, Pro, and SS were observed in mycorrhizal halophytes under salt stress conditions (Fig. 6b).
Plant salt tolerance is usually quantified as harvestable biomass (Ilangumaran and Smith 2017). The present meta-analysis indicates that AMF significantly elevate biomass accumulation in both halophytes and glycophytes (Fig. 1), which supports the view that AMF can enhance the tolerance of plants to cope with salt stress (Bothe 2012; Evelin et al. 2009; Porcel et al. 2012). AMF confer salt tolerance and fitness in plants by accumulating osmolytes, maintaining ion equilibrium, improving water and nutrient uptake, decreasing oxidative damage, and increasing photosynthetic capacity (Latef and Miransari 2014; Bothe 2012; Evelin et al. 2009). Therefore, we compared the above physiological metabolic processes to uncover the underlying mechanisms of growth promotion in mycorrhizal halophytes and mycorrhizal glycophytes under salt conditions.
Inoculation effects on osmotic adjustment in halophytes and glycophytes
Soil salinity initially induces osmotic pressure to inhibit water absorption of root and induce water deficit, which immediately further retards the growth of root and shoot (Munns and Tester 2008). Plants cope with osmotic stress mainly due to osmotic adjustment by absorbing soil inorganic ions and accumulating compatible solutes. In general, the utilization of inorganic ions can alleviate physiological drought and maintain osmotic adjustment in plants in an energy-efficient manner (Munns et al. 2016), while compatible solutes are energetically much more expensive (Tester 2003). Halophytes mainly use inorganic ions to efficiently facilitate osmotic adjustment and have a meagre need for organic solutes, while glycophytes primarily use K+ and compatible solutes to maintain low osmotic potential (Himabindu et al. 2016; Munns et al. 2016).
The optimization of root morphological structures could help plant to improve ability to absorb and metabolize water (Rewald et al. 2013). Arbuscular mycorrhizal symbiosis could improve the morphological and physiological characteristics of roots, which further helps mycorrhizal plants absorb water and nutrient to prevent the harmful effects of osmotic stress (Gupta and Krishnamurthy 1996; Sheng et al. 2009). Moreover, the hyphae of AMF could extend from the root and bypass the depletion zone of water and nutrient around the root to utilize more soil resources (Tallapragada 2017; Yang et al. 2015). The effects of both root modification and hyphae extension jointly expand the absorbing surface and promote the ability of mycorrhizal plants to take up water and nutrients from soil with low water potential (Elhindi et al. 2017; Gupta and Krishnamurthy 1996; Sheng et al. 2009; Tallapragada 2017; Zou and Wu 2011). In this meta-analysis, AMF inoculation significantly increased root biomass, root length, root surface area, root volume, and root tip numbers (Tables 1, Additional file 2: Table S2). This optimization of morphological structures in the root further bolster both water and K+ acquisition in mycorrhizal plants (Fig. 3c). K+ is the pivotal inorganic ion that participates in osmotic adjustment, and absorption of K+ induces higher root hydraulic conductivity, improves water status, and, consequently, alleviates osmotic stress (Auge et al. 2014; Tallapragada 2017). In the present investigation, the increased K+ acquisition is conducive to biomass accumulation (Fig. 6). Therefore, we speculate that utilization of K+ in mycorrhizal plants alleviate the physiological drought induced by osmotic stress, efficiently maintain osmotic adjustment, and distribute the energy used for growth to a certain extent.
AMF can also adjust osmotic potential by raising the synthesis of organic osmolytes in host plants, such as Pro, SS, and SP, which consequently facilitate efficient water use in host plants and help to avoid cellular dehydration under salt stress (Latef and Miransari 2014; Auge et al. 2014; Munns and Tester 2008; Ruiz-Lozano et al. 2012; Yang et al. 2014). However, the magnitudes of the AMF effect on osmolytes accumulation vary differently between mycorrhizal halophytes and mycorrhizal glycophytes. Under salt stress conditions, levels of Pro, SS, and SP changed inconspicuously in mycorrhizal halophytes, while accumulation of SS and SP increased notably in mycorrhizal glycophytes (Fig. 2). Inborn salt-tolerant mechanisms might be the cause of the various responses between halophytes and glycophytes. Halophytes mainly utilize inorganic ions to facilitate osmotic adjustment energetically and meanwhile decrease ion toxicity efficiently via adaptative mechanisms. Thus, there is a meagre need for organic solutes in mycorrhizal halophytes. However, compatible solutes are the primarily osmolytes to facilitate osmotic adjustment in glycophytes (Himabindu et al. 2016; Munns et al. 2016). Therefore, mycorrhizal glycophytes accumulate higher levels of SS and SP than do mycorrhizal halophytes to satisfy the demand for osmotic adjustment (Himabindu et al. 2016; Miyama and Tada 2008; Taji et al. 2004).
Inoculation effects on ions uptake between halophytes and glycophytes
The impacts of ionic stress on the plants occur later than do those of osmotic stress (Munns and Tester 2008). Na+ is the most abundant ion released into saline soils (Munns and Tester 2008). High Na+ induces K+, Ca2+, and Mg2+ deficiencies and inhibits N and P absorptions (Rewald et al. 2013; Yi̇ldi̇ri̇m et al. 2009). Similar to the previous meta-analyses examining the AMF inoculation under salt stress (Auge et al. 2014; Chandrasekaran et al. 2014), the results of this study that AMF inoculation increased the uptake of N, P, K+, Ca2+, and Mg2+ while decreased that of Na+ (Table 1) indicate that mycorrhizal symbiosis might protect mycorrhizal plants from salt toxicity by increasing nutrients absorption and minimizing toxic ion uptake. The increased K+/Na+ and Ca2+/Na+ ratios further prove that mycorrhizal symbiosis also compensates for ion disequilibria and facilitates the maintenance of ion homeostasis (Evelin et al. 2009; Yang et al. 2014) (Additional file 2: Table S2). Nonetheless, more positive effects of P and K+ were observed in mycorrhizal glycophytes than in mycorrhizal halophytes indicating that the ability of nutrient absorption in the former is stronger than that in the latter under salt stress (Fig. 2b, c). The significant increases in Ca2+ and Mg2+ only in mycorrhizal glycophytes also demonstrates that glycophytes are more dependent on AMF symbiosis than the halophytes under salt stress conditions (Fig. 2e, f).
In mycorrhizal glycophytes, the significant correlations between total biomass and N, P, K+, and Na+ showed that AMF promote glycophytes growth by reducing Na+ toxicity and enhancing nutrients uptake (Fig. 6a). In mycorrhizal halophytes, although Ca2+ is not increased significantly, total biomass correlated with K+ and Ca2+ (Fig. 6b). The adaptative mechanisms and potential energy costs between halophytes and glycophytes under salt stress might explain this difference. Glycophytes are unable to efficiently exclude Na+, and ionic effects dominate over the osmotic effects (Munns and Tester 2008). Thus, energy production is usually redistributed from growth to ionic stress defense (Munns and Tester 2008; Munns and Gilliham 2015). AMF favor biomass accumulation in glycophytes by excluding Na+, improving N, P and K+ acquisition and reallocating energy from ionic stress defense to growth. Nevertheless, osmotic stress has an immediate effect on the growth of halophytes (Munns and Tester 2008). AMF help halophytes to cope with osmotic stress by deploying the organic solutes and inorganic ions (K+ and Ca2+), which is useful to maintain efficient ion regulation to satisfy the increased energy demand and metabolism during development (Auge et al. 2014; Himabindu et al. 2016; Munns and Gilliham 2015). Therefore, we suggest that the primary salt tolerance mechanism of mycorrhizal halophytes is the promotion of osmotic adjustment, and the Na+ reduction in mycorrhizal halophytes may be the result of a rise in osmotic capacity after AMF inoculation. Regardless, there is limited evidence for this suggestion, and further study is needed.
Inoculation effects on the antioxidant system between halophytes and glycophytes
Oxidative damage is a secondary effect induced by osmotic and ionic stresses (Zhu 2002). Stress-induced ROS can perturb enzymes, damage cell walls, destabilize membranes and increase MDA contents in plants (Bose et al. 2014; Jithesh et al. 2006). Plants are equipped with enzymatic antioxidants such as SOD and CAT as well as non-enzymatic antioxidants such as Car to scavenge ROS and ultimately minimize salt-induced oxidative damage (Himabindu et al. 2016). Our results showed that AMF significantly upregulated CAT activities and elevated the Car content while reducing the MDA content in both halophytes and glycophytes (Figs. 4b, c, 5c). These results are in accordance with previous studies (Estrada et al. 2013a; He et al. 2007; Yang et al. 2016), and demonstrate the mechanisms by which AMF can induce enzymatic and non-enzymatic antioxidants to alleviate oxidative damage and stabilize membrane (Evelin et al. 2009; Latef and Miransari 2014).
However, mycorrhizal halophytes and glycophytes respond differently to oxidative damage under salt stress conditions. Mycorrhizal glycophytes show higher SOD activity than do mycorrhizal halophytes (Fig. 4a), indicating that antioxidative ability improves more in glycophytes than in halophytes after AMF inoculation. The negative correlations between MDA and SOD as well as CAT in mycorrhizal glycophytes indicate that AMF mitigate oxidative damage mainly by increasing the activities of antioxidative enzymes in glycophytes (Additional file 2: Fig. S1). Furthermore, upregulation of SOD activities and the reductions in MDA contents directly promote the biomass accumulations in mycorrhizal glycophytes (Fig. 6), which indicates that the alleviation of oxidative stress induced by AMF may further promote biomass accumulation in glycophytes under salt stress. In contrast, analogous mechanisms do not appear to function in mycorrhizal halophytes because halophytes have evolved efficient mechanisms to inhibit excessive ROS production in cells at the onset of osmotic and ionic stress (Bose et al. 2014; Himabindu et al. 2016) (Fig. 6). Thus, mycorrhizal halophytes do not need the same level of antioxidants as glycophytes need to mitigate oxidative damage under salt stress conditions.
Inoculation effects on photosynthetic capacity between halophytes and glycophytes
Photosynthesis is the critical source of energy required for plant growth (Cousins et al. 2014). High salinity induces stomatal closure, reduces photosynthetic capacity, damages photosynthetic pigments synthesis, and ultimately decreases energy acquisition and biomass accumulation (Ashraf and Harris 2013; Chow et al. 1990; Lin et al. 2016; Munns and Gilliham 2015). AMF inoculation significantly increases Chla, Chlb, Car, Pn, Gs, and Tr in both halophytes and glycophytes (Fig. 5), which suggests that AMF might reduce damage to the photosynthetic machinery and enhance photosynthesis capacity in both types of plants under salt stress conditions (Chen et al. 2017). The total chlorophyll content positively correlates with N, P and K+ uptake and is negatively associated with MDA (Additional file 2: Fig. S2). This result indicate that the biosynthesis of chlorophyll in mycorrhizal plants is mainly due to both of the increased N, P and K+ absorptions (Evelin et al. 2009; Folli-Pereira et al. 2013; Garg and Chandel 2011; Meloni et al. 2001) and the enhanced antioxidant capacities (Hashem et al. 2015; Parida and Das 2005).
Although the magnitudes of AMF on photosynthetic parameters are similar in both halophytes and glycophytes, positive relationships of chlorophyll contents and total biomass occur only in mycorrhizal glycophytes (Fig. 6). The differences of potential energy costs and biomass losses in halophytes and glycophytes might explain this difference. The loss of biomass comprises the losses in both quantity and quality (Rockwood 1984). Biomass quantity can be quantified by dry weight (Meijer and Wijffels 1983), while biomass quality is quantified by chemical components of plants in the ecosystem that can be used as energy and raw materials (Socolow et al. 1996). Glycophytes lack salt-tolerant mechanisms to cope with salt stress, and the limited energy acquired by photosynthesis is mainly used in stress defense under salt stress conditions (Himabindu et al. 2016; Munns and Gilliham 2015). After AMF inoculation, the majority of the increased chlorophyll contents induced by mycorrhizal symbiosis may be redistributed from salt stress defense to the promotion of biomass quantity in glycophytes. Although mycorrhizal halophytes possessed higher photosynthetic capacity and a greater chlorophyll content, there was no correlation between chlorophyll and biomass accumulation (Fig. 6b). It is possible that halophytes have evolved mechanisms to combat salt stress. The energy acquired by photosynthesis is primarily used in general maintenance, and halophytes may invest the majority of the increased chlorophyll contents induced by AMF inoculation to promoting biomass quality (Himabindu et al. 2016; Munns and Gilliham 2015). Therefore, the increased chlorophyll contents are contributed to improve the biomass accumulation in mycorrhizal plants qualitatively and quantitatively, but halophytes and glycophytes lay particular emphasis on each.
Overall, the results of this meta-analysis suggest that AMF not only enhance plant growth but also alter physiological metabolism processes in plants, such as promoting osmolyte accumulation (SS and SP), nutrient acquisition (N, P, and K+), antioxidant enzyme activities (SOD and CAT), and photosynthetic capacity (Chla, Chlb, Car, Pn, Gs and Tr), while decreasing Na+-induced damages and MDA contents. Halophytes and glycophytes invoke different growth-promotion mechanisms under salt stress. The growth promotion of mycorrhizal halophytes is mainly due to the energy-efficient improvements in osmoregulation induced by organic osmolytes (Pro and SS) and inorganic ions (K+ and Ca2+). In contrast, the growth promotion of mycorrhizal glycophytes is achieved via combined actions of accumulating SS, promoting nutrient acquisition, reducing Na+ accumulation, enhancing SOD activity and elevating chlorophyll contents. Glycophytes are more dependent on AMF symbiosis than halophytes in nutrient uptake and antioxidant enzymes under salt stress conditions. The inherent salt-tolerance mechanisms in plants are the decisive factors that leads to the different responses in energy acquisition and redistribution between mycorrhizal halophytes and mycorrhizal glycophytes.
Availability of data and materials
All data generated or analysed during this study are included in this published article (and its additional information files).
Arbuscular mycorrhizal fungi
- Ca2+ :
- K+ :
- Mg2+ :
- Na+ :
Plant growth promoting rhizobacteria
Net photosynthetic rate
Reactive oxygen species
Algarni SMS (2006) Increasing NaCl—salt tolerance of a halophytic plant Phragmites australis by mycorrhizal symbiosis. Am Eurasian J Agric Environ Sci 1:119–126
Alkaraki GN (2000) Growth of mycorrhizal tomato and mineral acquisition under salt stress. Mycorrhiza 10:51–54
Alkaraki GN (2001) Salt stress response of salt-sensitive and tolerant durum wheat cultivars inoculated with mycorrhizal fungi. Acta Agron Hung Hung 49:25–34
Anik AR, Ranjan R, Ranganathan T (2018) Estimating the impact of salinity stress on livelihood choices and incomes in Rural Bangladesh. J Int D 30:1414–1438
Apse MP (1999) Salt tolerance conferred by overexpression of a vacuolar Na+/H+ antiport in Arabidopsis. Science 285:1256–1258
Ashraf M, Harris PJC (2013) Photosynthesis under stressful environments: an overview. Photosynthetica 51:163–190
Auge RM, Toler HD, Saxton AM (2014) Arbuscular mycorrhizal symbiosis and osmotic adjustment in response to NaCl stress: a meta-analysis. Front Plant Sci 5:562
Avis TJ, Gravel V, Antoun H, Tweddell RJ (2008) Multifaceted beneficial effects of rhizosphere microorganisms on plant health and productivity. Soil Biol Biochem 40:1733–1740
Balliu A, Sallaku G, Rewald B (2015) AMF inoculation enhances growth and improves the nutrient uptake rates of transplanted salt-stressed tomato seedlings. Sustainability 7:15967–15981
Bose J, Rodrigo-Moreno A, Shabala S (2014) ROS homeostasis in halophytes in the context of salinity stress tolerance. J Exp Bot 65:1241–1257
Bothe H (2012) Arbuscular mycorrhiza and salt tolerance of plants. Symbiosis 58:7–16
Chandrasekaran M, Boughattas S, Hu S, Oh SH, Sa T (2014) A meta-analysis of arbuscular mycorrhizal effects on plants grown under salt stress. Mycorrhiza 24:611–625
Chandrasekaran M, Kim K, Krishnamoorthy R, Walitang D, Sundaram S, Joe MM, Selvakumar G, Hu S, Oh SH, Sa T (2016) Mycorrhizal symbiotic efficiency on C3 and C4 plants under salinity stress—a meta-analysis. Front Microbiol 7:1246
Chaves MM, Flexas J, Pinheiro C (2009) Photosynthesis under drought and salt stress: regulation mechanisms from whole plant to cell. Ann Bot 103:551–560
Chen J, Zhang H, Zhang X, Tang M (2017) Arbuscular mycorrhizal symbiosis alleviates salt stress in Black Locust through improved photosynthesis, water status, and K+/Na+ homeostasis. Front Plant Sci 8:1739
Chow WS, Ball MC, Anderson JM (1990) Growth and photosynthetic responses of spinach to salinity: implications of K+ nutrition for salt tolerance. Aust J Plant Physiol 17:563–578
Ciftci V, Turkmen O, Erdinc C, Sensoy S (2010) Effects of different arbuscular mycorrhizal fungi (AMF) species on some bean (Phaseolus vulgaris L.) cultivars grown in salty conditions. Afr J Agric Res 5:3408–3416
Cousins A, Johnson M, Leakey A (2014) Photosynthesis and the environment. Photosynth Res 119:1–2
Egamberdieva D, Wirth S, Jabborova D, Räsänen LA, Liao H (2017) Coordination between Bradyrhizobium and Pseudomonas alleviates salt stress in soybean through altering root system architecture. J Plant Interact 12:100–107
Elhindi KM, El-Din AS, Elgorban AM (2017) The impact of arbuscular mycorrhizal fungi in mitigating salt-induced adverse effects in sweet basil (Ocimum basilicum L.). Saudi J Biol Sci 24:170–179
Estrada B, Aroca R, Barea JM, Ruiz-Lozano JM (2013a) Native arbuscular mycorrhizal fungi isolated from a saline habitat improved maize antioxidant systems and plant tolerance to salinity. Plant Sci 201–202:42–51
Estrada B, Aroca R, Azcón-Aguilar C, Barea JM, Ruiz-Lozano JM (2013b) Importance of native arbuscular mycorrhizal inoculation in the halophyte Asteriscus maritimus for successful establishment and growth under saline conditions. Plant Soil 370:175–185
Evelin H, Kapoor R, Giri B (2009) Arbuscular mycorrhizal fungi in alleviation of salt stress: a review. Ann Bot 104:1263–1280
Fan L, Fang C, Dubé C, Deschênes M, Dalpé Y, Tao S, Khanizadeh S (2012) Arbuscular mycorrhiza alleviates salinity stress of strawberry cultivars under salinity condition. Acta Hortic 926:491–496
Folli-Pereira MDS, Meira-Haddad LSA, Houghton CMNSDVDC, Kasuya MCM (2013) Plant–microorganism interactions: effects on the tolerance of plants to biotic and abiotic stresses. In: Hakeem KR, Ahmad P, Ozturk M (eds) Crop improvement. Springer, Boston, pp 209–238
Garg N, Bhandari P (2016) Silicon nutrition and mycorrhizal inoculations improve growth, nutrient status, K+/Na+ ratio and yield of Cicer arietinum L. genotypes under salinity stress. Plant Growth Regul 78:371–387
Garg N, Chandel S (2011) The effects of salinity on nitrogen fixation and trehalose metabolism in mycorrhizal Cajanus cajan (L.) Millsp. plants. J Plant Growth Regul 30:490–503
Gupta R, Krishnamurthy KV (1996) Response of mycorrhizal and nonmycorrhizal Arachis hypogaea to NaCl and acid stress. Mycorrhiza 6:145–149
Hasanuzzaman M, Nahar K, Alam MM, Bhowmik PC, Hossain MA, Rahman MM, Prasad MN, Ozturk M, Fujita M (2015) Potential use of halophytes to remediate saline soils. J Biomed Biotechnol 2014:589341
Hashem A, Abdallah EF, Alqarawi AA, Aldubise A, Egamberdieva D (2015) Arbuscular mycorrhizal fungi enhances salinity tolerance of Panicum turgidum Forssk by altering photosynthetic and antioxidant pathways. J Plant Interact 10:230–242
He Z, Huang Z (2013) Expression analysis of LeNHX1 gene in mycorrhizal tomato under salt stress. J Microbiol 51:100–104
He ZQ, He CX, Zhang ZB, Zou ZR, Wang HS (2007) Changes of antioxidative enzymes and cell membrane osmosis in tomato colonized by arbuscular mycorrhizae under NaCl stress. Colloid Surf B 59:128–133
Hedges LV, Gurevitch J, Curtis PS (1999) The meta-analysis of response ratios in experimental ecology. Ecology 80:1150
Hegazi AM, El-Shraiy AM, Ghoname AA (2017) Mitigation of salt stress negative effects on sweet pepper using arbuscular mycorrhizal fungi (AMF), Bacillus megaterium and Brassinosteroids (BRs). Gesunde Pflanzen 69:111
Himabindu Y, Chakradhar T, Reddy MC, Kanygin A, Redding KE, Chandrasekhar T (2016) Salt-tolerant genes from halophytes are potential key players of salt tolerance in glycophytes. Environ Exp Bot 124:39–63
Ilangumaran G, Smith DL (2017) Plant growth promoting rhizobacteria in amelioration of salinity stress: a systems biology perspective. Front Plant Sci 8:1768
Jithesh MN, Prashanth SR, Sivaprakash KR, Parida AK (2006) Antioxidative response mechanisms in halophytes: their role in stress defence. J Genet 85:237–254
Kaya C, Ashraf M, Sonmez O, Aydemi̇ S, Tuna AL, Cullu MA (2009) The influence of arbuscular mycorrhizal colonisation on key growth parameters and fruit yield of pepper plants grown at high salinity. Sci Hortic 121:1–6
Khalloufi M, Martínezandújar C, Lachaâl M, Karraybouraoui N, Pérezalfocea F, Albacete A (2017) The interaction between foliar GA3 application and arbuscular mycorrhizal fungi inoculation improves growth in salinized tomato (Solanum lycopersicum L.) plants by modifying the hormonal balance. J Plant Physiol 214:134
Kosová K, Vítámvás P, Urban MO, Prášil IT (2013) Plant proteome responses to salinity stress—comparison of glycophytes and halophytes. Funct Plant Biol 40:775–786
Latef AAHA, Miransari M (2014) The role of arbuscular mycorrhizal fungi in alleviation of salt stress. In: Miransari M (ed) Use of microbes for the alleviation of soil stresses. Springer, New York, pp 23–38
Lehmann A, Rillig MC (2015) Arbuscular mycorrhizal contribution to copper, manganese and iron nutrient concentrations in crops—a meta-analysis. Soil Biol Biochem 81:147–158
Lin J, Wang Y, Sun S, Mu C, Yan X (2016) Effects of arbuscular mycorrhizal fungi on the growth, photosynthesis and photosynthetic pigments of Leymus chinensis seedlings under salt-alkali stress and nitrogen deposition. Sci Total Environ 576:234
Liu F (2016) Role of arbuscular mycorrhiza in alleviating salinity stress in wheat (Triticum aestivum L.) grown under ambient and elevated CO2. J Agron Crop Sci 202:486–496
Liu S, Guo X, Feng G, Maimaitiaili B, Fan J, He X (2016) Indigenous arbuscular mycorrhizal fungi can alleviate salt stress and promote growth of cotton and maize in saline fields. Plant Soil 398:195–206
Liu C, Dai Z, Cui M, Lu W, Sun H (2018) Arbuscular mycorrhizal fungi alleviate boron toxicity in Puccinellia tenuiflora under the combined stresses of salt and drought. Environ Pollut 240:557–565
Mardukhi B, Rejali F, Daei G, Ardakani MR, Malakouti MJ, Miransari M (2011) Arbuscular mycorrhizas enhance nutrient uptake in different wheat genotypes at high salinity levels under field and greenhouse conditions. CR Biol 334:564–571
Meijer EA, Wijffels RH (1983) Quantity of biomass immobilized, determination. In: Wijffels RH (ed) Immobilized Cells. Springer, Heidelberg, pp 65–73
Meloni DA, Oliva MA, Ruiz HA, Martinez CA (2001) Contribution of proline and inorganic solutes to osmotic adjustment in cotton under salt stress. J Plant Nutr 24:599–612
Miyama M, Tada Y (2008) Transcriptional and physiological study of the response of Burma mangrove (Bruguiera gymnorhiza) to salt and osmotic stress. Plant Mol Biol 68:119–129
Mohammad MJ, Malkawi HI, Shibli R (2003) Effects of arbuscular mycorrhizal fungi and phosphorus fertilization on growth and nutrient uptake of barley grown on soils with different levels of salts. J Plant Nutr 26:125–137
Munns R, Gilliham M (2015) Salinity tolerance of crops—what is the cost? New Phytol 208:668–673
Munns R, Tester M (2008) Mechanisms of salinity tolerance. Ann Rev Plant Biol 59:651–681
Munns R, James RA, Gilliham M, Flowers TJ, Colmer TD (2016) Tissue tolerance: an essential but elusive trait for salt-tolerant crops. Funct Plant Biol 43:1103–1113
Osman KT (2018) Saline and sodic soils. In: Osman KT (ed) Management of soil problems. Springer, Cham, pp 255–293
Ouziad F, Wilde P, Schmelzer E, Hildebrandt U, Bothe H (2006) Analysis of expression of aquaporins and Na+/H+ transporters in tomato colonized by arbuscular mycorrhizal fungi and affected by salt stress. Environ Exp Bot 57:177–186
Pan J, Peng F, Xue X, You Q, Zhang W, Wang T, Huang C (2019) The growth promotion of two salt-tolerant plant groups with PGPR inoculation: a meta-analysis. Sustainability 11:378
Parida AK, Das AB (2005) Salt tolerance and salinity effects on plants: a review. Ecotoxical Environ Saf 60:324–349
Porcel R, Aroca R, Ruiz-Lozano JM (2012) Salinity stress alleviation using arbuscular mycorrhizal fungi. A review. Agron Sustain Dev 32:181–200
Rewald B, Shelef O, Ephrath JE, Rachmilevitch S (2013) Adaptive plasticity of salt-stressed root systems. In: Ahmad P, Azooz MM, Prasad MNV (eds) Ecophysiology and responses of plants under salt stress. Springer, New York, pp 169–201
Rockwood DL (1984) Genetic improvement potential for biomass quality and quantity. Biomass 6:37–45
Rosenberg MS, Adams DC, Gurevitch J (2000) MetaWin: statistical software for meta-analysis Version 2.0. Sinauer Associates, Sunderland
Ruiz-Lozano JM, Porcel R, Azcon C, Aroca R (2012) Regulation by arbuscular mycorrhizae of the integrated physiological response to salinity in plants: new challenges in physiological and molecular studies. J Exp Bot 63:4033–4044
Sardo V, Hamdy A (2005) Halophytes—a precious resource. In: Hamdy A, Gamal F, Lamaddalena N, Bogliotti C, Guelloubi R (eds) Non-conventional water use: WASAMED project. CIHEAM/EU DG Research, Bari, pp 119–128
Sheng M, Tang M, Chen H, Yang B, Zhang F, Huang Y (2008) Influence of arbuscular mycorrhizae on photosynthesis and water status of maize plants under salt stress. Mycorrhiza 18:287–296
Sheng M, Tang M, Chen H, Yang B, Zhang F, Huang Y (2009) Influence of arbuscular mycorrhizae on the root system of maize plants under salt stress. Can J Microbiol 55:879–886
Socolow R, Andrews C, Berkhout F, Thomas V (eds) (1996) Industrial ecology and global change. Cambridge University Press, Cambridge
Suarez C, Cardinale M, Ratering S, Steffens D, Jung S, Montoya AMZ, Geissler-Plaum R, Schnell S (2015) Plant growth-promoting effects of Hartmannibacter diazotrophicus on summer barley (Hordeum vulgare L.) under salt stress. Appl Soil Ecol 95:23–30
Taji T, Seki M, Satou M, Sakurai T, Kobayashi M, Ishiyama K, Narusaka Y, Narusaka M, Zhu JK, Shinozaki K (2004) Comparative genomics in salt tolerance between Arabidopsis and Arabidopsis-related halophyte salt cress using Arabidopsis microarray. Plant Physiol 135:1697–1709
Talaat NB, Shawky BT (2011) Influence of arbuscular mycorrhizae on yield, nutrients, organic solutes, and antioxidant enzymes of two wheat cultivars under salt stress. J Plant Nutr Soil Sci 174:283–291
Tallapragada P (2017) The role of arbuscular mycorrhizal fungi in salt and drought stresses. In: Bagyaraj DJ (ed) Microbes for plant stress management. New India Publishing Agency, New Delhi, pp 183–204
Tester M (2003) Na+ tolerance and Na+ transport in higher plants. Ann Bot 91:503–527
Turkmen O, Sensoy S, Demir S, Erdinc C (2008) Effects of two different AMF species on growth and nutrient content of pepper seedlings grown under moderate salt stress. Afr J Biotechnol 7:392–396
Worchel ER, Giauque HE, Kivlin SN (2013) Fungal symbionts alter plant drought response. Microb Ecol 65:671–678
Wu SC, Cao ZH, Li ZG, Cheung KC, Wong MH (2005) Effects of biofertilizer containing N-fixer, P and K solubilizers and AM fungi on maize growth: a greenhouse trial. Geoderma 125:155–166
Yang SJ, Zhang ZL, Xue YX, Zhang ZF, Shi SY (2014) Arbuscular mycorrhizal fungi increase salt tolerance of apple seedlings. Bot Stud 55:70
Yang H, Zhang Q, Dai Y, Liu Q, Tang J, BianX Chen X (2015) Effects of arbuscular mycorrhizal fungi on plant growth depend on root system: a meta-analysis. Plant Soil 389:361–374
Yang X, Yu H, Zhang T, Guo J, Zhang X (2016) Arbuscular mycorrhizal fungi improve the antioxidative response and the seed production of Suaedoideae species Suaeda physophora Pall under salt stress. Not Bot Horti Agrobo 44:533–540
Yi̇ldi̇ri̇m E, Karli̇dag H, Turan M (2009) Mitigation of salt stress in strawberry by foliar K, Ca and Mg nutrient supply. Plant Soil Environ 55:213–221
Zhang JL, Shi H (2013) Physiological and molecular mechanisms of plant salt tolerance. Photosynth Res 115:1–22
Zhang W, Wang C, Lu T, Zheng Y (2018) Cooperation between arbuscular mycorrhizal fungi and earthworms promotes the physiological adaptation of maize under a high salt stress. Plant Soil 423:1–16
Zhu JK (2001) Plant salt tolerance. Trends Plant Sci 6:66–71
Zhu JK (2002) Salt and drought stress signal transduction in plants. Annu Rev Plant Biol 53:247–273
Zou YN, Wu QS (2011) Efficiencies of five arbuscular mycorrhizal fungi in alleviating salt stress of trifoliate orange. Int J Agric Biol 13:991–995
Zuccarini P (2007) Mycorrhizal infection ameliorates chlorophyll content and nutrient uptake of lettuce exposed to saline irrigation. Plant Soil Environ 53:281–287
This research was funded by the National Key Research and Development Program of China (No. 2017YFE0119100, 2016YFC0500909), and the International Partnership Program of Chinese Academy of Sciences (No. 131B62KYSB20170031).
Ethics approval and consent to participate
Consent for publication
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
