An active Catharanthus roseus desacetoxyvindoline-4-hydroxylase-like gene and its transcriptional regulatory profile
Botanical Studies volume 55, Article number: 29 (2014)
Desacetoxyvindoline-4-hydroxylase is a key enzyme in the biosynthesis of vindoline, the important intermediate leading to vinblastine and vincristine in Catharanthus roseus.
A d4h-like gene has been isolated from C. roseus C20hi cells based on an EST sequence from the Suppression Subtractive Hybridization cDNA library. The full length cDNA of d4h-like was 1427 bp encoding 372 amino acids. It had 66% identities and 80% positives with d4h at the amino acid level. It belonged to 2-oxoglutarate dependent oxygenase superfamily as d4h did. Real-time quantitative PCR analysis revealed that d4h-like was expressed high in roots, flowers and C20hi cells, very low in leaves and stems. Methyl jasmonate could significantly increase the accumulation of d4h-like transcripts. 2,4-D inhibited its expression. An approximate 2,910 bp of 5′-promoter region of d4h-like was obtained, fused to GUS reporter gene and analyzed with fluorescence quantitative assays using transient expression in C. roseus cell suspensions, indicating that d4h-like promoter could drive GUS gene expression in vivo.
These results suggest that d4h-like is closely related with d4h in the genetic evolution but with different transcriptional expression profiles. It may be revolved in the hormone-independency of C20hi cells.
Vinblastine and vincristine are powerful anticancer compounds produced by Madagascar periwinkle (Catharanthus roseus (L.) G. Don.) and derived by the coupling of the monomeric alkaloids catharanthine and vindoline in plants (El-Sayed and Verpoorte 2007). Research revealed that vindoline was transformed from tabersonine through a sequence of six strictly ordered enzyme reactions including aromatic hydroxylation, O-methylation, hydration of the 2,3-double bond, N(1)-methylation, 4-hydroxylation, and 4-O-acetylation (El-Sayed and Verpoorte 2007). Desacetoxyvindoline-4-hydroxylase (D4H, E.C.184.108.40.206) catalyzed the 4-hydroxylation of desacetoxyvindoline to form deacetylvindoline (Vazquez-Flota et al. 1997) which consequently converted to vindoline by deacetylvindoline-4-O-acetyltransferase (DAT) (Power et al. 1990). D4H was a 2-oxoglutarate-dependent dioxygenase and could be induced by light and red-light (Verpoorte et al. 2000). It was localized at cytoplasm and its mRNA were associated with the laticifer and idioblast cells of the leaves, stems and flower buds (St-Pierre et al. 1999). Hydroxylase assays and RNA-blot hybridization studies showed that D4H activity was closely related to the levels of d4h transcripts, occurring predominantly in young leaves and in much lower levels in stems and fruits (Vazquez-Flota et al. 1997). The biosynthesis of vindoline was also light-induced and had tissue-specific accumulation profile which was coincided with the expression patterns of d4h (El-Sayed and Verpoorte 2007).
The D4H enzyme and corresponding gene were elucidated in C. roseus. Till now, there was no homologous gene of d4h having been reported. Recently, a special C. roseus cell line C20hi was achieved in culturing the C. roseus C20D cells by gradually reducing the hormones in the media in our lab. These cells were hormone-independent and could produce much more tryptamine, serpentine, and ajmalicine than the original cell line C20D. Using cell lines C20hi and C20D, a Suppression Subtraction Hybridization (SSH) cDNA library was established. Interestingly, a 671 bp fragment, containing the 3′-untranslated region, highly similar to d4h at the amino acid level was obtained in the library. Here, we reported the isolation and characterization of the full length cDNA and the promoter regions of d4h-like (GenBank accession number: EF640810, GU363550).
Plant and cell material
Catharanthus roseus cells were cultured in liquid B5 basic media by adding 2,4-D (2,4-dichlorophen-oxyacetic acid) and kinetin for C20, 2,4-D for C20D, and without any hormone for C20hi with shaking at 100 rpm in a shaker at 25°C under dark. C. roseus plant was cultivated in the growth chamber at 25°C with a photoperiod of 16 h light and 8 h dark.
Total RNAs were isolated using RNA Extraction Kit (Takara Biotechnology, Dalian, China) from different tissues and cells of C. roseus and checked with agarose gel electrophoresis and spectrophotometer (HITACHI U-2900) analysis. RNA samples were stored at −80°C before use.
Cloning of the full length cDNA, genomic DNA and promoter region of d4h-like
The 5′-RACE was performed using SMART RACE cDNA Amplification Kit (Clontech). Gene-specific primers were designed based on the 671 bp of EST sequence of d4h-like from SSH cDNA library. Universal Primer A Mix (UPM) coupled with 5′ nested universal primer (NUP) were used to do the PCR amplification according to the direction. PCR products were recovered from 1% agarose gel, inserted into pMD18-T vector (Takara), and sequenced. Full length cDNA of d4h-like was amplified using gene-specific primers D4HL-F and D4HL-R.
GenomeWalkerTM Universal Kit (Clontech) was used to isolate the 5′- upstream sequence of d4h-like. DNA was isolated with DNA Extraction Kit (Takara) from C. roseus leave. Genomic DNA of d4h-like was cloned using gene-specific primers. To get the 5′-promoter region, DNA was digested with restriction enzymes Dra I, EcoR V, Pvu II, and Stu I, purified and ligated with GenomeWalker Adaptor, separately. Primary and secondary PCR were consequentially carried out. PCR products were ligated into T-vector and sequenced as described above. All the primers used in this research were listed in Additional file 1: Table S1.
Sequence analysis and multiple alignments were conducted using Vector NTI 7.1 (InforMax, USA). Putative cis- regulatory elements of the promoter region were predicted with PlantCARE online software. Phylogenetic tree was established applying MegAlign with CLUSTAL W method.
Protein expression in Escherichia coli
Open reading frame fragment of d4h-like cDNA amplified with high-fidelity Taq DNA polymerase (TaKaRa) was fused into the pRSET (Invitrogen) vector and confirmed by sequencing. The vector was transferred into E. coli strain BL21 (DE3) to express the proteins according to the direction for pRSET kit. Water-soluble recombinant proteins were separated with SDS-PAGE electrophoresis.
Real-time quantitative PCR and semi-quantitative RT-PCR analysis
About 2 μg of total RNA was used as template to perform reverse transcription with PrimeScript RT Reagent Kit (TaKaRa). Real-time quantitative PCR (qPCR) was carried out on an ABI StepOnePlus PCR System (Applied Biosystems) using the SYBR premix ExTaq polymerase following thermal cycling conditions recommended by the manufacturer. RSP9 was used as internal reference gene (Peebles et al. 2009). Each sample was repeated at least three times. Data were analyzed with StepOne software V2.1.
The semi-quantitative RT-PCR was performed with β-actin as the reference control. The PCR program was as followed: 94°C for 2 min, followed by 32 cycles (for d4h-like gene) or 28 cycles (for β-actin gene) at 94°C for 15 s, 53°C for 20 s and 72°C for 60 s, and then a final extension at 72°C for 5 min. PCR products were separated on 1% agarose gels stained with ethidium bromide (10 mg/mL).
Construction of promoter-GUS fusions
A modified pCaMV35S: GUS vector was created by replacing GFP in pCAMBIA1302 (http://www.cambia.org) with a GUS gene. Promoter: GUS vectors were generated by replacing the CaMV35S promoter cassette with promoter fragments, −1845/+140 bp, −1167/+140 bp, and −483/+140 bp, respectively. Each fusion was verified with DNA-sequencing. Plasmid was introduced into A. tumefaciens GV3101 through triparental mating using Escheridhia coli harboring pRK 2013 as conjugal helper strain.
Agrobacterium-mediated transient expression
Transient expression was performed according to Wang et al. (2010). Briefly, individual colony of transformed A. tumefaciens was picked and cultured to a final OD600 of 0.6 in Luria–Bertani liquid media containing kanamycin (100 mg/L) and rifampicin (100 mg/L). A. tumefaciens pellets were collected, washed and added into flasks containing 20 mL of fresh C. roseus C20hi cells and 100 μM of acetosyringone. After cultivation under 28°C for another 48 h, cells were collected to do the expression assay. Cells infected with either A. tumefaciens containing pCaMV35S: GUS or A. tumefaciens only was used as positive and negative control, respectively. Each assay was performed triplicate.
GUS activity assay
GUS activity was measured according to Jefferson and Kavanagh (1987). C. roseus transient transgenic cells were homogenized in protein extraction buffer (0.05 M NaPO4, pH 7.0, 0.1% SDS, 10 mM EDTA, 20% methanol, 10 mM β-ME, Triton X-100) and centrifuged. Supernatant were used to do the assay with fluorometer. Protein concentration was determined using Bradford method (Bio-Rad, USA). GUS enzyme activity was expressed as nanomolar of 4-MU produced per minute per milligram protein.
Results and discussion
Cloning and characteristics of d4h-like cDNA and genomic DNA
A 910 bp of PCR product was obtained applying 5′-RACE method. The full-length cDNA of d4h-like (Figure 1a) was 1427 bp encoding 372 amino acids with a calculated molecular mass of 42.7 kDa and isolectric point (pI) of 5.31. The ORF of d4h-like was fused with the 33 amino acid residues in the pRSET vector at the N-terminal. After induced by IPTG, an approximate 44KD of specific water-soluble protein was expressed in E. coli BL21 (Figure 2), which was right the predicted molecular weight of the recombinant D4H-LIKE protein. The 5′-untranslated region (UTR) was 68 bp and the 3′-UTR was 240 bp including 26 base poly(A)+ tail. Analysis with tBlastX showed that d4h-like had 66% (250/378) identities and 80% (303/378) positives to d4h at the amino acid level.
The genomic organization of d4h-like was similar with d4h (Figure 1b). It contained three exons and two introns, 85 and 128 bp in length, being located at the same conserved amino acid consensus sequences as those of d4h. But either intron of d4h-like was shorter than the corresponding one of d4h, which was 205 and 1720 bp.
Alignment of D4H-LIKE with the other dioxygenases

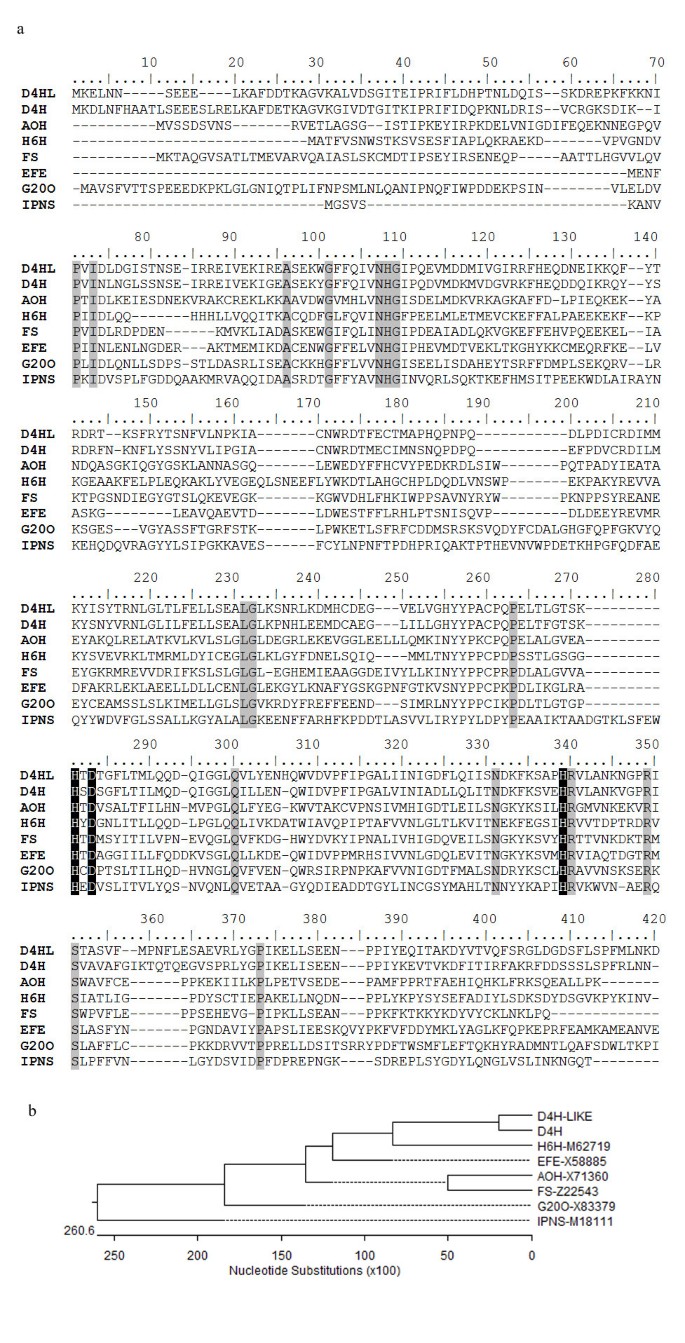

NCBI conserved domain-searching results using Swissprot database indicated that the identity of D4H-LIKE with the other dioxygenases (Figure 3a) ranked from 27% for IPNS from Aspergillus nidulans (Ramon et al. 1987), 29% for Hyoscyamine 6-beta-hydroxylase (H6H) from Hyoscyamus niger (Matsuda et al. 1991) and anthocyanidin synthase (AS) from apple (Davis 1993), 33% for Ethylene-forming enzyme from tomato (Holdsworth et al. 1987) and G20O from Arabidopsis thaliana (Phillips et al. 1995) to 34% for Flavonol synthase (FS) from Petunia x hybrida (Holton et al. 1993). These enzymes and D4H all belonged to 2OG-Fe(II) oxygenase superfamily including 2-oxoglutarate (2OG) and Fe(II)-dependent oxygenase members. The C-terminal of this superfamily enzymes contained a prolyl 4-hydroxylase alpha subunit and the holoenzyme had the activity of procollagen-proline dioxygenase (EC:220.127.116.11) catalyzing the following reaction: L-proline-[procollagen] + 2-oxoglutarate + O(2) = trans-4-hydroxy-L- proline-[procollagen] + succinate + CO(2) (Helaakoski et al. 1995). Among the 19 highly conserved residues including Ala84, Gly89, Gly97, His96, His235, His292, Pro226, Leu197, Gln253, Arg293, and Ser304, the triad His235-X-Asp237, together with His292 (Figure 3a), were proved to be the binding sites for ferrous ions in IPNS (Roach et al. 1995). The equivalent residues, highlighted with white characters in black boxes in Figure 3a, were also conserved in D4H-LIKE and D4H. All the information indicates that D4H-LIKE has the characteristics of oxidase, in particular, the enzymatic characteristics associated with Fe(II)-dependent oxygenase just like D4H.
The phylogenetic tree (Figure 3b) established with MegAlign software (DNASTAR Inc., Madison, WI, USA) showed that D4H-LIKE was closely clustered with D4H and kept a little far from EFE, AOH, FS, G20O, and IPNS. This result, taken together with the similar gene structure, implied that D4H-LIKE and D4H were closely related with each other in the genetic evolutionary process and D4H-LIKE may have similar functions in C. roseus.
Isolation and characterization of d4h-like promoter
An approximately 2,910 bp promoter region of d4h-like was isolated. The promoter contained a typical TATA box, present at -25 bp upstream of the transcriptional start site (TSS). Analysis with PlantCARE showed that a number of potential cis- acting elements corresponding to regulatory signals existed upstream of the TATA-box in this region (Table 1 and Additional file 1: Figure S1). AT-rich sequence was element for maximal elicitor-mediated activation. HSE was related to heat stress responsiveness. ARE was cis- acting regulatory element essential for the anaerobic induction. TGACG-motif involved in the MeJA-responsiveness. GARE-motif was involved in the gibberellin responsiveness and ERE acted as ethylene-responsive element. The existence of such cis- acting elements in d4h-like promoter indicated that d4h-like might be controlled by a complicated regulatory mechanism and probably responded to various developmental and environmental signals.
Expression profile of d4h-like in C. roseus plant and the cultured cells
RT-qPCR analysis revealed the transcripts of d4h-like was accumulated high in roots and flowers, and very low in stems and leaves (Figure 4a). The expression level of d4h-like in roots was about 100-fold, 530-fold, and 5300-fold higher than that in flowers, stems, and leaves, respectively. Among the three cell lines, C20hi cells exhibited the highest capacity to accumulate d4h-like mRNA. Both C20D and C20 cells accumulated very little d4h-like transcripts whose level was about 200-fold and 270-fold lower than that in C20hi, respectively (Figure 4a). This result suggested that d4h-like has root-specific expression characteristics.
Effects of MeJA and 2,4-D on the transcript accumulation of d4h-like
After treating with MeJA, the transcription of d4h-like was gradually increased, reaching the highest level, about 25-fold high compared with the control at the 36th hr, and then decreased but still at an up-regulated level after 48 and 72 hr (Figure 4b), suggesting that MeJA could induce d4h-like to express. Since the EST fragment of d4h-like was obtained through screening the SSH cDNA library established using C20hi and C20D cells and the difference between these two cell lines was that C20hi grew well in B5 media without 2,4-D, we speculate that the high transcription of d4h-like in C20hi cells may result from the absence of 2,4-D in the media. To demonstrate this speculation, 2 mg/L of 2,4-D was added into B5 media culturing C20hi cells and the transcripts of d4h-like was detected with semi-quantitative RT-PCR, which proved the expression of d4h-like was obviously inhibited by 2,4-D (Figure 4c).
Taking together with the existence of ethylene-, gibberellin-, MeJA-responsive elements and circadian control regulatory element in the promoter region, we suggest that d4h-like may be involved in the growth of C20hi cells.
Function analysis of the d4h-like promoter in C. roseus suspension cells
Transient expression assay revealed that the activity of d4h-like promoter was 8.77 ± 2.29 nM MU/min/mg proteins for −1845/+140 bp, 11.85 ± 0.30 nM MU/min/mg proteins for −1167/+140 bp, and 7.00 ± 1.84 nM MU/min/mg proteins for −483/+140 bp fragment, and that of the CaMV35S was 20.65 ± 1.494 nM MU/min/mg proteins (Figure 4d). Analysis with SPSS19.0 revealed that there were no significant difference between the 35S promoter and the −1845/+140 bp fragment (p = 0.512 > 0.05), and the −1167/+140 bp fragment (p = 0.316 > 0.05), which indicated that the −1167/+140 bp region had the capability to drive GUS to express in transiently transformed C. roseus cells. The −483/+140 bp fragment showed significant difference with the 35S promoter (p = 0.020 < 0.05), implying that the cis- acting elements within −1167/-483 bp region may be necessary for the transcription of the gene. All the results suggested that d4h-like was an active gene in vivo.
In general, an active d4h-like gene was cloned from C. roseus which showed different transcriptional expression profiles from d4h. It will be interesting to investigate the roles and the relationship between d4h-like and the biosynthesis of alkaloids such as vindoline, tryptamine, serpentine, and ajmalicine in C. roseus.
Davis KM: A Malus cDNA with homology to Anthirrhinum candida and Zea A2 genes. Plant Physiol 1993, 103: 1015. 10.1104/pp.103.3.1015
El-Sayed M, Verpoorte R: Catharanthus terpenoid indole alkaloids: biosynthesis and regulation. Phytochem Rev 2007, 6: 277–305. 10.1007/s11101-006-9047-8
Helaakoski T, Annunen P, Vuori K, MacNeil IA, Pihlajaniemi T, Kivirikko K: Cloning, baculovirus expression, and characterization of a second mouse prolyl 4-hydroxylase alpha-subunit isoform: formation of an alpha 2 beta 2 tetramer with the protein disulfide-isomerase/beta subunit. Proc Natl Acad Sci U S A 1995, 92: 4427–4431. 10.1073/pnas.92.10.4427
Holdsworth MJ, Bird CR, Ray J, Schuch W, Grierson D: Structure and expression of an ethylene-related mRNA from tomato. Nucl Acid Res 1987, 15: 731–739. 10.1093/nar/15.2.731
Holton TA, Brugleira F, Tanaka Y: Cloning and expression of flavonol synthase from Petunia hybrida . Plant J 1993, 4: 1003–1010. 10.1046/j.1365-313X.1993.04061003.x
Jefferson RA, Kavanagh A: GUS fusions: B-glucuronidase as fusion marker in higher plants. EMBO J 1987, 6(13):3901–3907.
Matsuda J, Okabe S, Hashimoto T, Yamada Y: Molecular cloning of hyoscyamine 6-hydroxylase, a 2-oxoglutaratedependent dioxygenase from cultured roots of Hyoscyamus niger . J Biol Chem 1991, 226: 9460–9464.
Peebles CAM, Hughes EH, Shanks JV, San KY: Transcriptional response of the terpenoid indole alkaloid pathway to the overexpression of ORCA3 along with jasmonic acid elicitation of Catharanthus roseus hairy roots over time. Metab Eng 2009, 11: 76–86. 10.1016/j.ymben.2008.09.002
Phillips A, Ward DA, Ukness S, Appleford NEJ, Lange T, Huttly AK, Gaskin P, Graebe JE, Hedden P: Isolation and expression of three gibberellin 20-oxidase cDNA clones from Arabidopsis. Plant Physiol 1995, 108: 1049–1057. 10.1104/pp.108.3.1049
Power R, Kurz W, Luca V: Purification and characterization of acetylcoenzyme A: deacetylvindoline 4-O-acetyltransferase from Catharanthus roseus . Arch Biochem Biophys 1990, 279: 370–376. 10.1016/0003-9861(90)90504-R
Ramon D, Carramolino L, Patino C, S’anchez F, Penalva MA: Cloning and characterization of the isopenicillin N synthase gene mediating for formation of the beta-lactam ring in Aspergillus nidulans . Gene 1987, 57: 171–181. 10.1016/0378-1119(87)90120-X
Roach PL, Clifton IJ, Fülöp V, Harlos K, Barton GJ, Hajdu J, Andersson I, Schofield CJ, Baldwin JE: Crystal structure of isopenicillin N synthase is the first from a new structural family of enzymes. Nature 1995, 375: 700–704. 10.1038/375700a0
St-Pierre B, Vazquez-Flota FA, De Luca V: Multicellular compartmentation of Catharanthus roseus alkaloid biosynthesis predicts intercellular translocation of a pathway intermediate. Plant Cell 1999, 11: 887–900.
Vazquez-Flota F, De Carolis E, Alarco AM, De Luca V: Molecular cloning and characterization of desacetoxyvindoline-4-hydroxylase, a 2-oxoglutarate dependent-dioxygenase involved in the biosynthesis of vindoline in Catharanthus roseus (L.) G. Don. Plant Mol Biol 1997, 34: 935–948. 10.1023/A:1005894001516
Verpoorte R, Van der Heijden R, Memelink J: Engineering the plant cell factory for secondary metabolite production. Transgenic Res 2000, 9: 323–343. 10.1023/A:1008966404981
Wang Q, Yuan F, Pan Q, Li M, Wang G, Zhao J, Tang K: Isolation and functional analysis of the Catharanthus roseus deacetylvindoline-4-O-acetyltransferase gene promoter. Plant Cell Reports 2010, 29: 185–192. 10.1007/s00299-009-0811-2
This study was supported by grants from the National Natural Science Foundation of China (No. 30200358) and the Doctorate Specialized Research Fund from China Ministry of Education (20070268008).
The authors declare that they have no competing interests.
CZ carried out most of the research, did the data analysis, and drafted the manuscript. JZ helped perfect the results of qRT-PCR, Agrobacterium-mediated transient transformation, and GUS activity assay. SJZ directed the experiments and finished the manuscript. ZBH supervised the whole research. All authors read and approved the final manuscript.
