Nuclear and chloroplast DNA phylogeography suggests an Early Miocene southward expansion of Lithocarpus (Fagaceae) on the Asian continent and islands

Contributed equally
Botanical StudiesAn International Journal201859:27

  • Received: 4 January 2018
  • Accepted: 31 October 2018
  • Published:



Most genera of Fagaceae are thought to have originated in the temperate regions except for the genus Lithocarpus, the stone oaks. Lithocarpus is distributed in subtropical and tropical Asia, and its ancestral population is hypothesized to be distributed in tropical regions in Borneo and Indochina. Borneo and the nearby islands (the Greater Sunda Islands) were connected to the Malay Peninsula and Indochina prior to the Pliocene epoch and formed the former Sundaland continent. The Southeast Asian Lithocarpus, is thought to have dispersed between continental Asia and the present Sundaland. The drastic climate changes during the Pliocene and Pleistocene epochs which caused periodic sea-level changes is often used to explain the cause of its diversity. The aim of this study was to establish phylogenetic relationships by analyzing nuclear (nrDNA) and chloroplast (cpDNA) DNA in order to describe and analyze the origin, causes of diversification and historical biogeography of Lithocarpus.


Phylogeny reconstructed through the multiple-species coalescent method with nrDNA and cpDNA revealed that the continental-Asian taxa were clustered at the basal lineages. The derived lineages of tropical Lithocarpus, with the inference of a subtropical ancestral state, imply a southward migration in the Early Miocene period with subsequent in situ diversification in the Greater Sunda Islands. The gradual decrease in temperature since the Middle Miocene period is proposed as a cause of the increase in the net diversification rate.


The historical ancestral origin of Lithocarpus has been suggested to be mainland Asia. Southward migration in the Early Miocene period with subsequent in situ diversification could explain the current diversity of stone oaks in Southeast Asia. This study also considered the multiple origins of stone oaks currently indigenous to the subtropical islands offshore and near mainland China. Our results provide phylogenetic evidence for a subtropical origin of Asian stone oaks and reveal the process of diversification and how it fits into the timeline of major geologic and climatic events rather than local, episodic, rate-shifting events.


  • Stone oak
  • Continental Asia
  • Dispersal–extinction–cladogenesis (DEC)
  • Diversification rate
  • Endemism
  • Greater Sunda Islands
  • Historical biogeography
  • Indochina
  • Lithocarpus
  • Phylogeny


Dispersal and vicariance are the main biogeographic factors that contribute to species distribution (Donoghue et al. 2001; Manos and Stanford 2001). Quaternary glacial cycles that caused topographic changes and climatic fluctuations should have affected the distribution of species by both dispersal and vicariance (Hewitt 2004). For example, the well-known retreat of European white oaks into the southern refugia during glacial periods and their interglacial northward expansion explains the reshuffling of species distribution (Petit et al. 2002a, b). In Southeast Asia, the emergence of ancient Sundaland, the former continent connecting the Thai-Malay peninsula to Borneo and the Philippine archipelagos, was suggested as a land bridge for species dispersal between Indochina and the Malay Archipelago, but the submergence of the Sunda shelf was the prime barrier for vicariant events between the Malay Archipelago and continental Asia (Lohman et al. 2011). Glacially-dependent demographic changes leading to genetic differentiation of populations were also reported for several eastern and Southeast Asian land plants, such as Ceriops tagal (Rhizophoraceae) (Liao et al. 2011), Castanopsis carlesii (Fagaceae) (Cheng et al. 2005), Dysosma versipellis (Berberidaceae) (Fu et al. 2009), Machilus spp. (Lauraceae) (Wu et al. 2006), and Pinus massoniana (Pinaceae) (Ge et al. 2012).

In addition to the topographic changes in Southeast Asia (e.g., Sundaland), past climate changes also affected the flora of subtropical China and adjacent areas (Qiu et al. 2011). In their report, Qiu et al. (2011) summarized the evidence that Southwest China, which is adjacent to the Indochinese Peninsula, has the greatest floral biodiversity. The complex geohistory and physiographical heterogeneity of Southwest China provided multiple refuges for plant populations (e.g., Nanling Mts., Yungui Plateau, Hengduan Mts., etc.) during Quaternary glacial periods in terms of inter- and postglacial northward, eastward, and westward recolonization (Qiu et al. 2011). Past climate changes also severely affected the biogeographic patterns of Southeast Chinese, Japanese, Korean, and Taiwanese plants (reviewed by Chiang and Schaal 2006; Qiu et al. 2011) such as Cunninghamia konishii (Cupressaceae) (Chung et al. 2004), Ainsliaea spp. (Asteraceae) (Mitsui and Setoguchi 2012), Picea jezoensis (Pinaceae) (Aizawa et al. 2007), Pinus luchuensis complex (Pinaceae) (Chiang et al. 2006), and Ligularia hodgsonii (Asteraceae) (Wang et al. 2013). The distribution of these plants was probably due to dispersal/vicariance events driven by the emergence/submergence of the last glacial East China Sea land bridges (Qiu et al. 2011); similar events occurred among fauna (Millien-Parra and Jaeger 1999).

Stone oaks (Lithocarpus Bl., Fagaceae) are the most widely distributed trees in East and Southeast Asia ranging from northeast India to South China, southern Japan and Taiwan, Indochina, Borneo, and Papua New Guinea (Nixon 1989). Across this range, severe topography changes took place during the Quaternary glacial/interglacial cycles. In older studies, Lithocarpus was supposed to have had a tropical origin in Southeast Asia and an Asian migration which occurred at least twice: a westward dispersal to Europe identified based on the fossil records (no extant species) and an eastward colonization of western North America (one extant species) (Cannon and Manos 2003). However, the American species has been identified as a novel genus Notholithocarpus because of its distant phylogenetic relationship to the Asian species (Manos et al. 2008); therefore, the rest of the Asian Lithocarpus species formed a monophyly (Manos et al. 2001, 2008; Oh and Manos 2008). Lithocarpus sensu lato is composed of approximately 300 species and is the second largest genus of Fagaceae (Nixon 1989).

Manos and Stanford (2001) claimed that the most ancient haplotypes were distributed in northern Borneo and Indochina, which then separated into the Borneo population and the Indochina population in the middle Miocene, during which Sundaland was narrowed and the Gulf of Thailand appeared. After vicariance, the prolonged in situ diversification increased the frequency of endemics (Cannon and Manos 2003). Cannon and Manos (2003) also proposed a recent diversification of the genus Lithocarpus according to unresolved gene trees of cpDNA (chloroplast DNA) and nrITS (nuclear ribosomal internally transcribed spacers). However, their inference was mainly based on a study using very biased sampling in Borneo with only a few samples from continental Asia. According to several case studies regarding the isolation and migration of plant species between continental Asia and the Greater Sunda Islands, the diversification of Southeast Asian Lithocarpus might be related to recurrent separation and dispersal between geographical-transitional species congeners. Such recurrent secondary contacts were also highlighted for insular species diversity (e.g., the origin of Taiwanese endemic species, Chiang et al. 2012; Chung et al. 2007). The relatively high diversity and endemism of Lithocarpus in continental islands near mainland China provide opportunities to test the hypotheses of the origin of insular forest species, either multiple origins by continent-island colonization or single origins with in situ radiation.

In this study, we used East and Southeast Asian stone oaks (Lithocarpus) as subjects to determine whether phylodiversity was related to biogeographic events regarding climatic-related geographic timelines. Phylogenetic analyses of Lithocarpus (Fagaceae) based on maternally inherited plastid markers and biparentally inherited nuclear markers were assessed to explore the biogeographic patterns via phylogeographical analyses. Based on surveys of topological and temporal analyses, we proposed answers to the following questions: (1) Are there any diversification rate shifts in Lithocarpus in different geographical regions? (2) Do the rate-shift events correspond to any geographical event? (3) How is the insular diversity generated?


Plant material sampling and molecular techniques

Leaf samples were collected from stone oak populations covering the areas of Nanling (E113°01′15′′, N24°58′51′′), Mangdang Shan (E118°07′33′′, N26°41′40′′), Emei (E103°16′27′′, N29°34′52′′), Chinfo Shan (E107°09′43′′, N29°01′04′′), Kunming Golden Temple (E102°46′10′′, N25°05′15′′), and botanical gardens (Additional file 1: Table S1). Total genomic DNA was extracted from leaf samples using a modified cetyl trimethylammonium bromide (CTAB) method (Doyle and Doyle 1987). The DNA samples were amplified by polymerase chain reaction (PCR) using primers specific for the regions of the atpB-rbcL spacer of the chloroplast (cp) genome and the nuclear ribosomal internal transcribed spacer (nrITS) of the nuclear genome. PCR products of the atpB-rbcL spacer were directly sequenced. The nrITS amplicons were cloned using the yT&A cloning kit (Yeastern Biotech, Taipei, Taiwan) and sequenced with M13F and M13R primers. Sequencing reactions were performed using the ABI BigDye 3.1 Terminator Cycle Sequencing Kit (Applied Biosystems, Foster City, CA, USA) and the fragments were sequenced from both directions with the ABI PRISM®3730XL DNA Sequencer (Perkin-Elmer, Foster City, CA, USA). All sequence polymorphisms were visually rechecked from the chromatograms.

Sequence alignment

Chromatograms of DNA sequences were inspected by SeqMan implemented in DNASTAR ver. 7.0 (Lasergene, Germany). Genetic confirmation of each sequence was done by querying the nucleotide database in NCBI using the BLASTN program and NetPlantGene server in the Center for Biological Sequence Analysis ( All sequences were deposited in the NCBI nucleotide sequence database under the following accession numbers: KF992718–KF992796 (atpB-rbcL) and KJ685163–KJ685212 (nrITS). To enrich the sampling number, 108 sequences of atpB-rbcL and 77 sequences of nrITS from NCBI were incorporated for analyses. Sequence alignments were performed by Clustal X (Thompson et al. 1997) and manually edited using the BioEdit ver. (Hall 1999). Long fragments of sequences were trimmed to equal alignment lengths for subsequent phylogenetic analyses.

Phylogenetic analyses

As the taxa we collected for chloroplast and nuclear phylogenetic analyses were not exactly identical, multi-species coalescent phylogenetic trees (Drummond and Rambaut 2007; Heled and Drummond 2010) were reconstructed based on combinations of genomic markers and the two target markers separately. Consequently, three trees were developed as data structures for further analysis: the cpDNA + nrITS tree (64 species), the cpDNA tree (81 species), and the nrITS tree (70 species). Since extinction events in Lithocarpus are rare (Cannon and Manos 2003; Xing et al. 2014), it is likely that the rare event is overestimated from incomplete taxon sampling. Therefore the extinctions were deliberately excluded from species tree reconstruction to explain the species diversification, and we considered only cladogenesis and biogeographical factors. Yule’s pure-birth model that ignores the death (extinction) rate parameter was adopted for phylogeny reconstruction. The general-time-reversible substitution model (GTR) together with a gamma and invariant site heterogeneity model by BEAST ver. 1.7.3 (Drummond and Rambaut 2007) were used. Since the ucld.stdev parameter estimate deviated from zero, to account for the rate of heterogeneity among lineages in both markers (95% HPD of ucld.stdev = 0.849 ~ 1.289 and 0.759 ~ 1.407 in ITS and cpDNA, respectively) we have used the uncorrelated lognormal (UCLN) relaxed clock model instead of the strict clock model to estimate divergence times of about 40 Mya from the outgroup genus Chrysolepis (Kvaček and Walther 1989). Five independent pre-runs of ten-million generations of the length of MCMC were performed to obtain better parameter priors for the following three independent 50-million generations of the MCMC process. Genealogies for each lineage were sampled every 10,000 generations and the initial 10–25% of the sample run was discarded as burn-in according to the simulation trajectory. The output data containing all the statistics were summarized by TRACER ver. 1.5 (Rambaut and Drummond 2003) and both log and tree files of the last five runs were combined using LogCombiner ver. 1.6.1 (Drummond and Rambaut 2007). We resampled the originally simulated trees with a sampling frequency of 8000 and 6000 trees for ITS and cpDNA, respectively, to reduce the number of trees by LogCombiner ver. 1.6.1 and the posterior samples of trees were summarized by TreeAnnotator ver. 1.6.1 (Drummond and Rambaut 2007). FigTree ver. 1.3.1 (Rambaut 2008) was used to display the summarized trees.

Biogeographic inferences

We applied two strategies to infer the biogeographic events of Asian stone oaks: the statistical dispersal-vicariance (S-DIVA) model and the dispersal–extinction–cladogenesis (DEC) model, performed by RASP (Yu et al. 2015) and LAGRANGE (Matzke 2014) software, respectively. As described above, the extinction rate has probably been misidentified and overestimated by incomplete taxon coverage. However, Yule’s pure-birth model is a better fit to our data than the birth-and-death process as suggested by ∆AICRC test statistics (Table 2). Therefore ‘extinction’ was not considered in this study when reconstructing the phylogenetic tree for subsequent DEC analysis.

Ancestral area reconstruction was performed using both S-DIVA and DEC models. The study species were mapped into four ancestral areas: (A) continental Asia (including mainland China, northern India, and the islands off continental Asia), (B) Indochina, (C) the Malay Peninsula, and (D) the Greater Sunda Islands (including Borneo, the Philippines, Sumatra, Java, and other Indonesian archipelagos) (Fig. 1). The Greater Sunda Islands and Indochina were Cannon and Manos’s (2003) hypothetical ancestral areas; extensions of the Malay Peninsula connected to the Greater Sunda Islands and Indochina form ancient Sundaland. Continental Asia is the major section where most of the sympatric speciation occurs in Lithocarpus with other species of Fagaceae, and it is an alternative ancestral area for Lithocarpus.
Fig. 1
Fig. 1

Geographic distribution and the probable directions of species dispersal. Geographic distribution of the Asian Lithocarpus is separated into A continental Asia, B Indochina, C the Malay Peninsula, and D the Greater Sunda Islands. Arrows point to the putative dispersal routes and the migration times estimated by cpDNA and nrITS are denoted. Light gray regions are the present landmass; dark gray regions are the shallow seabed, representing the hypothetical coastlines of continental Asia and Sundaland during the Miocene and Quaternary glacials

Homogeneity tests for whole-tree diversification rates

The asymmetric rate shift of nodes of the species tree was estimated using the taxon-size insensitive (TSI) model and equal-rate Markov (ERM) random branching model of the SymmeTree program (Moore and Chan 2005). The Colless’s tree imbalance index (IC), the nodal probability product (MΠ and the modified version MΠ*), and sum (MΣ and MΣ*) were used to display the diversification rate variation of the whole tree (Chan and Moore 2002; Moore et al. 2004). Homogeneous evolutionary rates of descendant clades from the common ancestor (the node) were tested with delta-shift statistics (Δ1 and Δ2) at all nodes (Moore et al. 2004). One million random resolutions with 1000 TSI/ERM-resolved trees under one-million ERM simulations were performed to identify significant diversification rate shifts of each node. We selected the best diversification rate model (rate-constant, RC, or rate-variable, RV) through ∆AICRC test statistics using the fitdAICrc function of R package laser ver. 2.3 (Rabosky 2006). The fitdAICrc tested the Yule’s pure-birth (pureBirth) and birth–death (bd) models of RC, and the exponential and logistic variants of the density-dependent speciation rate models (DDX and DDL) and multi-rate variants of the pure-birth model (yule2rate and yule3rate) of RV.

Temporal-based diversification-rate-shift analyses

A temporal analysis that accumulates speciation events (lineages) through time was performed to infer the emergence time of species using lineage-through-time (LTT) analysis. The LTT analysis was performed in R using ape package (Paradis et al. 2004). We also resampled 1000 trees from the simulated-trees file by LogCombiner to display the LTT distribution of simulated results using the function mltt.plot in ape. Chronograms of the species tree reconstructed by BEAST were used as input trees. Effective sizes of lineages over time were also estimated using the reversible-jump Markov chain Monte Carlo computation (rjMCMC) (Opgen-Rhein et al. 2005) by the function mcmc.popsize of ape. One-million-step Markov-chain simulations were performed for the rjMCMC estimation, and the first 1000 steps were dropped as burn-in, with a setting thinning factor = 1000, for both whole tree topologies and subclades.

Diversification rate estimation by Bayesian analysis of macroevolutionary mixtures (BAMM)

Since the number of species used for reconstructing the species tree (63 species) is roughly 20% of the total number of Lithocarpus species recognized in the world (~ 300 species), we recalculated the net diversification rate with 20% sampling fractions by the BAMM approach (Rabosky et al. 2014). For estimating the net diversification rate, 5,000,000 Markov chain Monte Carlo simulations with 1/1000 thinning and 10% burn-in were set. The phylorate plot that shows the speciation rate along branches of the phylogeny was drawn with the Jenks natural breaks method. A histogram of rate heterogeneity was also drawn to illustrate proportions of lineages of rate clusters in the phylogenetic tree. All of the diversification rate analyses were conducted with the assistance of the BAMM program and R package BAMMtools (Rabosky et al. 2014).


Phylogenetic inferences

A total of 187 sequences of cp atpB-rbcL fragment from 81 species and 132 sequences of nrITS from 70 species were determined for phylogenetic, biogeographic, and diversification rate shift analyses. The tree topologies inferred from individual markers were significantly different (Additional file 1: Figure S1), and a strong heterogeneity and incomplete lineage sorting was found under different evolutionary histories (Hoelzer 1997; Page and Charleston 1998). Therefore, divergence time estimates for biogeographic events were calculated with a strategy that analyzed both markers via the multiple-species coalescent analysis implemented in *BEAST.

The splitting time of Lithocarpus estimated by multi-species coalescent methods with a combined cpDNA and nrITS tree (hereafter: combined cpDNA and nrITS data) was about 33.91 Mya [95% highest posterior density interval (95% HPD): 25.98–41.35 Mya], which was probably around the time of the Eocene–Oligocene boundary (known as the Grande Coupure; it is marked by the Eocene–Oligocene extinction event), by rooting with the outgroup Chrysolepis chrysophylla at c. 40 Mya based on the relaxed-clock model (Fig. 2a). The coalescent estimation is consistent with the estimates formed from individual markers cpDNA (33.44 Mya, 95% HPD: 28.23–41.27 Mya) and nrITS (37.19 Mya (95% HPD: 25.89–41.28 Mya). Since that time, Lithocarpus has been divided into two clades; the species that make up the first clade are widespread in continental Asia, the continental islands (Japan, Taiwan, and Hainan), the Southeast Asian islands (including the Greater Sunda Islands and the Philippines), and these are shown as clade 1 (cpDNA + nrITS), clade cp-1 (cpDNA), and clade ITS-I (nrITS) respectively (Figs. 2, 3, 4). The second clade is composed of species that are restricted in their geographic distribution to China and the nearby islands (Japan, Taiwan, and Hainan), and these are displayed as clade 2, clade cp-2, and clade ITS-II (Figs. 2a, 3, and 4) respectively. The splitting times of other species that were isolated from their geographic distribution in the Malay Peninsula, the Greater Sunda islands, and the Philippines grouped in subclade 1.1 might have coalesced back to 14.48 Mya (95% HPD: 7.66–19.22 Mya) (Fig. 2a), roughly at the end of the Middle Miocene disruption (14.8 ~ 14.5 Mya). Within clade cp-1 of the cpDNA tree, subclades cp-1a and cp-1b are evident at 25.25 Mya (95% HPD: 14.77–35.54 Mya), during the Late Oligocene period (Fig. 3). However, no sub-clades can be distinguished from clade ITS-I of the nrITS tree (Fig. 4).
Fig. 2
Fig. 2

Species tree and temporal analysis of diversification rates inferred by both cpDNA atpB-rbcL and nrITS. a Species tree reconstructed under the Yule’s pure-birth speciation model. Bold lines indicate lineages grouping with posterior probability > 80%; node labels are the splitting time (mya); the node bar is the 95% highest posterior density interval (HPD) of the splitting time. Geographic distribution areas are displayed as colored boxes. b and c are skylines of diversification rates of clade 1 and clade 2, respectively, inferred by rjMCMC and LTT. Dashed lines represent the classic skyline plots, while the bold and thin red lines indicate the skylines estimated with the rjMCMC and the corresponding 95% confidence intervals, respectively. The bold black line is the LTT plot. The blue, green and red arrows indicate the phylogenetic locations and times of diversification rate shifts

Fig. 3
Fig. 3

Species tree and temporal analysis of diversification rates inferred by cpDNA atpB-rbcL spacer reconstructed under Yule’s pure-birth speciation model. Bold lines indicate the lineages grouping with posterior probability > 80%; node labels are the splitting time (unit: mya); node bar is the 95% highest posterior density interval (HPD) of the splitting time. Geographic distribution areas were displayed as the colored box

Fig. 4
Fig. 4

Species tree and temporal analysis of diversification rates inferred by nuclear ITS spacer reconstructed under the Yule’s pure-birth speciation model. Bold lines indicate the lineages grouping with posterior probability > 80%; node labels are the splitting time (mya); the node bar is the 95% highest posterior density interval (HPD) of the splitting time. Geographic distribution areas are displayed as the colored boxes

Whole-tree diversification rate homogeneity tests

Testing the rate of homogeneity of the whole-tree diversification is the first step in evaluating the cladogenesis imbalance of the independent clades (Ricklefs 2007). Two analytical strategies, the topological analysis of the tree imbalance and the ∆AICRC statistic, were used for the whole-tree rate homogeneity tests. Table 1 summarizes the distribution of ERM simulations for five tree-imbalance indices. Tail probabilities of all indices are < 0.001 in the tree inferred from combined cpDNA and nrITS data sets, indicating the rejection of rate homogeneity of the whole trees (Table 1). However, no significant imbalance in the number of descendants was derived from any node when tested by delta-shift statistics (data not shown), suggesting a gradual change in diversification rates but not a punctuated diversification (Moore et al. 2004).
Table 1

Tail probabilities of asymmetric values for the among-lineage diversification rate variation in the phylogenetic topologies inferred from the species tree (BEAST)



M Π *


M Σ *


Both cpDNA and nrITS (Fig. 2a)



− 0.5855




 Min ERM


− 0.9566




 Max ERM


− 0.0856




 0.025 frequentile RR


− 0.8315




 0.975 frequentile RR


− 0.5207










cpDNA (Fig. 3)



− 0.5129




 Min ERM


− 0.9533




 Max ERM


− 0.1478




 0.025 frequentile RR


− 0.7518




 0.975 frequentile RR


− 0.3930










nrITS (Fig. 4)



− 0.5483




 Min ERM


− 1.0168




 Max ERM


− 0.1281




 0.025 frequentile RR


− 0.7540




 0.975 frequentile RR


− 0.4135










cpDNA (Additional file 1: Figure S1A)



− 0.5573




 Min ERM


− 0.8805




 Max ERM


− 0.2034




 0.025 frequentile RR


− 0.7510




 0.975 frequentile RR


− 0.4276






3.00.E− 05




nrITS (Additional file 1: Figure S1B)



− 1.0221




 Min ERM


− 1.0083




 Max ERM


− 0.1426




 0.025 frequentile RR


− 0.9238




 0.975 frequentile RR


− 0.5370










IC is the Colless’s tree imbalance index; MΠ and MΣ are the nodal probability product and nodal probability sum of the tree, respectively; MΠ* and MΣ* are modified versions of MΠ and MΣ obtained through differential weighting of the individual equal-rate Markov nodal probabilities according to their species diversity. These indices display the diversification rate variation of the whole tree

The inference of diversification rate heterogeneity of Lithocarpus was also supported by positive ∆AICRC values of the trees assessed from combined marker sets (Table 2). The yule3rate of the RV model had a higher likelihood than other RC and RV models and showed the highest net diversification rate at stage 2 (r2) in all trees (r2 = 9.936 in Fig. 2a and Table 2). A very short time span (stage 1–stage 2 [st1–st2]) of diversification rate increase was estimated in spite of quite different estimated times for each tree (st1 = 5.939 Mya, st2 = 5.936 Mya in Fig. 2a and Table 2).
Table 2

Testing for diversification rate variation models by ∆AICRC test statistic





Both cpDNA and nrITS (Fig. 2a)


− 2.3419


r1 = 0.101


− 1.682121


r1 = 0.076, a = 0.405


− 1.972169


r1 = 0.065, x = − 0.136


− 2.342


r1 = 0.101, k = 1,168,951


− 1.083


r1 = 0.0687, r2 = 0.112, st1 = 14.894




r1 = 0.087, r2 = 9.936, r3 = 0.115, st1 = 5.939, st2 = 5.936





cpDNA (Fig. 3)



− 49.95435

r1 = 0.120



− 48.30319

r1 = 0.105, a = 0.220



− 48.38446

r1 = 0.091, x = − 0.082



− 47.95426

r1 = 0.120, k = 1,428,290



− 49.612

r1 = 0.063, r2 = 0.130, st1 = 15.636



− 52.37852

r1 = 0.063, r2 = 0.665, r3 = 0.124, st1 = 15.636, st2 = 15.017





nrITS (Fig. 4)


− 5.870249


r1 = 0.086


− 4.303511


r1 = 0.058, a = 0.532


− 5.695618


r1 = 0.061, x = − 0.105


− 5.870443


r1 = 0.086, k = 1,284,297


− 2.426486


r1 = 0.073, r2 = 0.148, st1 = 2.380




r1 = 0.075, r2 = 0.471, r3 = 0.112, st1 = 1.713, st2 = 1.457





cpDNA (Additional file 1: Figure S1A)



− 204.617

r1 = 0.121



− 210.231

r1 = 0.076, a = 0.574



− 208.338

r1 = 0.046, x = − 0.251



− 202.616

r1 = 0.121, k = 2,195,621



− 211.000

r1 = 0.084, r2 = 0.153, st1 = 7.286



− 215.514

r1 = 0.095, r2 = 0.184, r3 = 0.024, st1 = 4.059, st2 = 0.328





nrITS (Additional file 1: Figure S1B)



− 52.806

r1 = 0.110



− 58.568

r1 = 0.060, a = 0.667



− 55.463

r1 = 0.038, x = − 0.306



− 38.991

r1 = 0.140, k = 174



− 56.213

r1 = 0.103, r2 = 0.368, st1 = 0.227



− 58.096

r1 = 0.093, r2 = 9.384, r3 = 0.172, st1 = 2.055, st2 = 2.053



− 0.471


r1, r2, r3, net diversification rates at stages 1, 2, and 3; st1 and st2, the first and the second rate-shift times; a, the extinction fraction extinction rate/speciation rate; x, the x parameter in the density-dependent exponetial model; k, the K parameter in the logistic density dependent model

PureBirth pure birth (Yule) model, bd rate-constant birth–death model, DDX and DDL exponential and logistic variants of the density-dependent speciation rate models, respectively, yule2rate and yule3rate multi-rate variants of the pureBirth model, ∆AICRC the difference in AIC score between the best rate-constant (AICRC) and rate-variable (AICRV) models. The overall best-fit models were indicated with italic AIC value

Biogeographic inferences

The ancestral area of the Asian stone oaks inferred from the DEC model is suggested to be continental Asia (or mainland China) by cpDNA + nrITS markers (Fig. 5 and Additional file 1: Figure S2A, -lnL = 76.94) in the early Oligocene period. The geographical distribution of extant Lithocarpus species is mostly a result of dispersal events and joined events of dispersal + vicariance, inferred by S-DIVA using combined cpDNA + nrITS markers (Fig. 5a, Additional file 1: Figure S2). Dispersal events are mostly inferred at clade 1, indicating that the species distributed in southern areas were mostly contributed by the Miocene southward expansions.
Fig. 5
Fig. 5

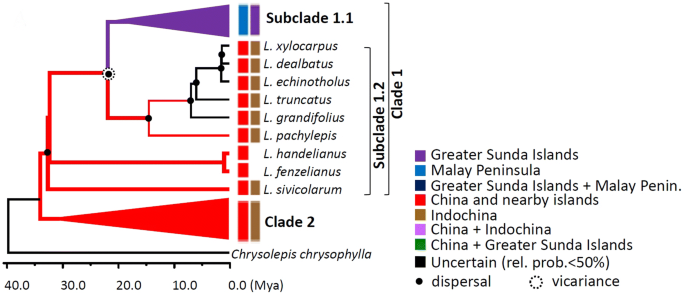

The species tree reconstructed by combined cpDNA atpB-rbcL spacer and nrITS data. Geographic distribution areas are displayed as colored boxes. Colored internodes indicate the ancestral geographic distribution areas reconstructed by DEC model. Lineages with bold and thin lines were derived from nodes (ancestral areas) with likelihood > 0.7 and > 0.5, respectively. Those with likelihoods < 0.5 are treated as unknown (black lineages). Dispersal and vicariance events inferred by S-DIVA are denoted

The southward colonization history of the common ancestor of these southern species from continental Asia could be traced back to 21.78 ~ 14.48 Mya (Figs. 2a and 5). This timing also matched the Miocene Climatic Optimum (MCO). Furthermore, the dispersal-related events followed by vicariance explained the far-distant close relatives. The S-DIVA inference from combined data showed a southward expansion followed by a vicariance that separated the Greater Sunda Islands from the areas of Indochina + continental Asia at 21.78 Mya (95% HPD: 9.92–25.28 Mya, posterior prob. = 0.4755) (Figs. 2a and 5).

Temporal analyses of diversification rate shifts

In the temporal analyses, the LTT of the tree inferred from the combined markers cpDNA and nrITS (Fig. 6) showed two sharp increases in diversification rates at c. 35 Mya (the Early Oligocene) and 15 Mya (Middle Miocene) (see gray area of LTT plot simulated from 1000 post-convergence trees), which roughly correspond to the end of the Grande Coupure and the MCO, respectively.
Fig. 6
Fig. 6

Skylines of the lineage-through-time (LTT) plots (a) and the effective size of lineages (b) of Asian Lithocarpus species from the cpDNA + nrITS tree. Grey regions of a indicate simulated LTT plots based on 1000 post-convergence Bayesian trees computed by BEAST. In b, the dashed lines represent the classic skyline plots, while the bold and thin solid lines indicate the skylines estimated with the rjMCMC and the corresponding 95% confidence intervals, respectively

Diversification rate estimation considering incomplete sampling

The BAMM analysis that considered 20% sampling fractions revealed a temporal change rather than spatial heterogeneity in the diversification rate of Lithocarpus. The effective number of sampling sizes (ESS) for the log-likelihood and the rate-shift-event estimation are 2249.43 and 4217.825, verifying the credibility of the inference of simulation. From 4501 simulation samples, the shift posterior distribution of 0, 1, 2, and 3 times rate-shift events are 0.97, 0.032, 0.0011, and 0.00022, respectively, indicating that a no-diversification rate shift between clades is the best evolutionary scenario for the diversification rate shift. We further estimated the speciation rates of tropical lineages (the southern lineages: GSI + Malay Peninsula), subtropical lineages (the northern lineages: China + Indochina), and the whole tree (genus Lithocarpus). The rates were 0.551 (5%–95% quantile: 0.357–0.799), 0.540 (5%–95% quantile: 0.342–0.806), and 0.543 (5%–95% quantile: 0.348–0.803), respectively, revealing rate homogeneity among clades and a slight, congruent positive skewness of diversification rate (i.e., speciation rate > extinction rate, Fig. 6). The phylo-plot and density-plot of the net diversification rate revealed a congruent trend towards a slight increase of the net diversification rate among different clades, suggesting a homogeneous diversification rate in space and temporal change of diversification rates in whole Lithocarpus lineages (Fig. 5). These estimates suggested that although the species composition of Lithocarpus differed among localities, the speciation and net diversification rates were unrelated to geographical distribution.

The dynamics of effective lineage sizes estimated by rjMCMC sampling represent changes in genetic diversity over time (Opgen-Rhein et al. 2005), which revealed a constant rate of cladogenesis on the logarithmic axis by combined cpDNA and nrITS markers (Fig. 6b). The skylines of effective sizes of lineages inferred by the rjMCMC approach revealed more smooth curves of diversification rates, whereas the classic skylines revealed the intuitional estimates of lineage sizes at each time interval. Severe fluctuations of effective sizes of lineages at 15 ~ 13 Mya in the Middle Miocene followed by the Late Miocene explosion of lineages at c. 9 ~ 7 Mya and another fluctuation of lineage sizes at the Miocene-Pliocene boundary (6 ~ 5 Mya) revealed in the classic skyline plot suggest the conspicuous late-shifts of diversification rates in Lithocarpus (Fig. 6b).

Multiple originations of the indigenous stone oaks on mainland China’s offshore islands

According to the species tree, the island species were paraphylies or polyphylies, suggesting that these species might have colonized the island multiple times and could have evolved independently. The twelve Lithocarpus species on the tropical island of Hainan are sparsely distributed in the phylogeny (Fig. 2a). Two of the three endemic species in Hainan (L. handelianus and L. fenzelianus) are sister-grouped with short TMRCA at c. 0.95 Mya (95% HPD: 0–17.35 Mya), but they are distinct from another endemic species L. naiadarum by a long coalescent history [about 33.91 Mya (95% HPD: 25.98–41.35 Mya)], suggesting at least two origins for the Hainan endemic species. The inference of multiple colonization events is also shown on the subtropical island of Taiwan. The Taiwanese species are phylogenetically located in one of the major clades but still sparsely distributed around the tree (Fig. 2a). The coalescent history of Taiwanese indigenous species could be traced back to 30.46 Mya (95% HPD: 9.74–27.74 Mya) and the TMRCA of any two species is longer than 5 Mya (Fig. 2a), which is older than the formation time of Taiwan Island [< 5 Mya, (Chi et al. 1981; Teng 1996; Wang et al. 2002)], indicating multiple colonization times instead of in situ radiation. The temperate island of Japan has only two species, L. glaber and L. edulis. The former species is also widely distributed in China and Taiwan, while the latter is endemic to Japan. These two Japanese species could have coalesced back to 3.82 Mya (95% HPD: 0.27–6.31 Mya), but the endemic one, L. edulis, is sister-grouped with another species, L. brevicaudatus (distributed in China and Taiwan, but not in Japan), with very short TMRCA at 0.18 Mya (95% HPD: 0–5.01 Mya) (Fig. 2a). The geological isolation could have differentiated ancestral populations of the common ancestor of L. brevicaudatus and L. edulis and resulted in the recent speciation of the island species L. edulis.


Intricate patterns of phylogenetic relationships as inferred from chloroplast and nuclear markers

The different evolutionary trajectories for nuclear and plastid markers may lead to different phylogenetic inferences. The cpDNA tree (Fig. 3, Additional file 1: Figure S1A) and the nrITS tree (Fig. 4, Additional file 1: Figure S1B) share a similar pattern for the early-derived major groupings but are incongruent in the recently derived lineages, suggesting a major influence of biogeographic effects on Lithocarpus evolution and less possibly for independent evolutionary trajectories based on chloroplast and nuclear genomes. Conflicts between these two genomes were often attributed to different evolutionary rates and reflect different biogeographic events such as pollen flow and seed dispersal (Ennos 1994; Mccauley 1995; Petit et al. 2005).

The broad and overlapping confidence intervals in the recently derived clades (Figs. 3 and 4, Additional file 1: Figure S1) indicate uncertainty in phylogenetic inference among closely related taxa. Phylogenetic discrimination between closely related species or between populations may be difficult because of the slow rate of lineage sorting (Hollingsworth et al. 2011), which may result in incorrect phylogenetic inferences in the terminal branches of tree topology. Therefore, we will focus the discussion in terms of global diversification and biogeographic patterns instead of fine-scaled inferences.

Using DNA sequence-based phylogeny assessed from only two DNA fragments to infer the biogeographic pattern of Lithocarpus is a trade-off between sample size and phylogenetic resolution. We used a large number of samples resourced mostly from published data, but the availability of relatively few markers might result in a bias of phylogeny. The major concern for the use of limited markers is that most biogeographic analyses are tree-dependent, and the tree quality determines the accuracy of the biogeographic inferences. A biased phylogenetic hypothesis can lead to an erroneous biogeographic inference. Therefore, in this study, integrated biogeographic inferences were obtained by comparing the analyses from combined marker sets and two single loci of different genomes and the contrasting results from different trees are further discussed.

Biogeographic inferences

The ancestral area of Lithocarpus inferred from the combined-marker tree is located in mainland China (Fig. 5, Additional file 1: Figures S2 and S4), implying a continental-Asian origin of the genus. Except for the genera Lithocarpus and Trigonobalanus (cf. Manos and Stanford 2001), most extant species of Fagaceae are distributed in temperate areas, suggesting a temperate origin of Fagaceae, which was also evidenced by the fossil distribution (Crepet and Nixon 1989). Given the apparent ecological niche conservatism throughout the evolutionary history of Fagaceae, it seems more likely that the subtropical and tropical genus Lithocarpus originated in a temperate region and expanded southward with adaptive divergence (Manos and Stanford 2001). The southward expansion was extended to the Greater Sunda Islands (Fig. 5, Additional file 1: Figures S2–S4). The estimated time of the southward migration places it in the Early Miocene, during which the sea level had not begun to rise and Sundaland was not yet submerged (Hall 2002), showing no or less relationship between the southward range expansion and recent dramatic climate changes, such as the Quaternary glacial oscillations. In fact, the early long-distance dispersal events did not occur only in Southeast Asia. Oligocene leaf fossils of the extant Lithocarpus analogs, L. saxonicus, discovered in Europe (East Germany) suggest a westward expansion of ancestors of extant Lithocarpus (Kvaček and Walther 1989). However, another example of out-of-Asia dispersal of L. densiflora into North America in the mid-Eocene (Manos and Stanford 2001) is paradoxical because this species is now recognized as a novel genus Notholithocarpus which is sister-grouped with Quercus instead of Lithocarpus (Manos et al. 2008). The Late-Miocene and Early Pliocene sea-level fluctuations that accompanied the disjunction and connection of Sunda Islands (Susilohadi et al. 2009) might have caused continual divergences and secondary contact with Lithocarpus species and resulted in rapid diversification. The following Pliocene fragmentation of island blocks (Susilohadi et al. 2009) further accelerated species divergence (e.g., Cyrtudru, Atkins et al. 2001; murine rodents, Gorog et al. 2004; crabs, Klaus et al. 2013).

The MCO provided suitable environmental conditions for broad spreading, and the following Middle Miocene climatic transition that caused the ice sheet expansion and formation of land bridges (Holbourn et al. 2005) might have facilitated southward colonization of these continental species into the Sundaland region. In addition to this southward colonization, we found at least two independent and synchronized northward returns from the Greater Sunda Islands into continental Asia at roughly 12 Mya, the Middle Miocene, by cpDNA (Fig. 3) and at least two serial northward returns at 15.21 Mya (95% HPD: 1.8–14.94 Mya) and 4.63 Mya (95% HPD: 0.72–10.58 Mya) by nrITS (Fig. 4) analysis.

The colonization date inference (21.78 ~ 14.48 Mya, Figs. 2a and 5a) of Southeast Asian stone oaks supports Cannon and Manos’s (2003) diversification hypothesis of Middle-Miocene vicariance between Indochina and Borneo. Manos and Stanford (2001) suggested that the most ancient haplotypes were distributed in northern Borneo and Indochina. The S-DIVA analysis with consideration of the scenario of vicariance rather than the DEC model implied serial dispersal events from the ancestral area of mainland China south towards Indochina and Borneo, indicating that the Borneo species were descended from the continental-Asian immigrants (Fig. 5). Our biogeographic inferences support Cannon and Manos’s (2003) hypothesis of Middle-Miocene vicariance between Indochina and Borneo, but the ancestral area of Lithocarpus is probably in mainland China, further north than Cannon and Manos’s (2003) inference of Borneo and Indochina. Furthermore, the Middle-Miocene long-distance dispersals also support the later in situ diversification inferred by Cannon and Manos (2003).

Diversification rate shift of Asian stone oaks

The rejection of constant diversification rate models (Tables 1 and 2) and the gradual increase of certain diversification rate shifts (Fig. 6a and d) supported the rejection of the stochastic model of ecological drift at long-term time scales (Benedetti-Cecchi et al. 2008)—i.e., that the Asian stone oaks are a group of non-neutral species responsive to heterogeneous environments. The maternally inherited cpDNA that reflects seed-mediated biogeographic events revealed a more obvious diversification rate shift during the Miocene (c. 15 Mya, Fig. 6b and e) than the biparentally inherited nrITS marker (Fig. 6c and f). The Miocene southward colonization by long-distance seed dispersal plays an important role in the extant species diversity of Asian stone oaks (Fig. 2a and b; the blue arrows). The lineages of clade 1 experienced southward colonization and an increased diversification rate at the Middle-Miocene (ca. 15 Mya, Fig. 2b), while lineages of the continental Asian clade 2 revealed a later increase of diversification rate since the early Pliocene (c. 5 Mya, Fig. 2c). Ancient Sundaland did not separate during the Miocene but narrowed from the Middle Miocene (Hall 2002). Restricted routes for long-distance dispersal in addition to climatic deterioration might have obstructed the range expansion and accelerated population differentiation (or species divergence) in Borneo. In contrast, the topography of mainland China did not vary as did that of Sundaland (Hall 2002; Scotese 2014), so the diversification rate of clade 2 in Fig. 2 did not reveal a rate-transition in the Middle Miocene (Fig. 2c).

However, the single-marker analyses revealed a constant growth of diversification rate in subclades cp-1, cp-2 (Fig. 3), and ITS-I (Fig. 4), but showed a rate-decrease pattern during the Miocene in subclade ITS-II (c. 23 ~ 5 Mya, Fig. 4). The constant rate increase in subclades of cpDNA (Fig. 3), and the shift in the whole tree topology (Fig. 6b), were caused by different diversification rates of subclades cp-1 (higher rate increase) and cp-2 (lower rate increase) (Fig. 3). Before the Middle Miocene (ca. 15 Mya), the numbers of continental Asian species were higher than those in southern Sundalands, but the southward colonization of stone oaks and the more severe geotopological changes to Sundaland caused a faster rate of species accumulation in Sundaland (the Greater Sunda Islands) than in continental Asia. Clade ITS-II might reflect a counteraction of frequent interspecific pollen flow and restricted seed dispersal in continental Asia since the Middle Miocene. The early Middle Miocene had an optimal climate (i.e., the MCO) with subsequent Middle Miocene disruption, during which the mid-latitude arid belt replaced the humid climate in East Asia (Liu et al. 2009), which caused an expansion of grasslands and restriction of forested areas (Kurschner et al. 2008). This explains the seed-mediated differentiation. In addition, the abundant insects with rapid evolutionary rates during the Miocene (Nyman et al. 2012) could have created opportunities for successful interspecific pollen flow of entomophilic stone oaks.

In addition to the principal diversification rate shift in the Middle Miocene (c. 15 Mya, Fig. 2b), we assessed two minor rate shifts at the Miocene-Pliocene boundary (c. 5 Mya) and Pliocene–Pleistocene boundary (c. 2.5 Mya). The former minor diversification rate shift was caused by continental Asian lineages of subclade 2 (Fig. 2c), while the latter was caused by lineages of subclade 1 (Figs. 2b and 4b). The climate since the end of the MCO gradually became colder until drastic climatic changes occurred at the end of the Miocene (Hodell and Kennett 1986) that restricted forest expansion on the Asian landmass. Restricted habitats (refugia) obstructed the gene flow with other populations and increased population differentiation, which accelerated speciation rates of the continental stone oaks in Asia, although the risk of extinction was also increased. Climatic oscillations provided suitable corridors for species survival and dispersal (Nakamura et al. 2012) that may have facilitated species diversification by recurrent extinctions and abrupt speciation from open niches (Dynesius and Jansson 2000).

In contrast, the species distributed in relatively warm Sundaland were less affected until the Pliocene–Pleistocene boundary, during which Sundaland started to break up. The second minor diversification rate shift since the Pliocene–Pleistocene boundary (c. 2.5 Mya) reflects the drastic Quaternary climatic change and periodic glacial periods. Quaternary fluctuations in biota transitions were commonly adopted to explain the current biodiversity (Alexeeva and Erbajeva 2005; Graham et al. 2003). Climatic changes at the Quaternary that predominantly attended dispersal, isolation, and local extinction to foster speciation could explain the increased diversification rates (Gavrilets and Losos 2009; Graham et al. 2003).

Multiple originations of insular stone oaks

After the southward colonization, the expansion and migration of Lithocarpus led to colonization of islands around continental Asia and Sundaland. Because of the distinct phylogenetic positions of island species in Japan, Taiwan, and Hainan, the hypothesis of multiple colonization events for each island is supported rather than in situ diversification. The deep branches of the cpDNA tree suggest long histories of seed colonization (Fig. 3), implying that the high species diversity of stone oaks in Taiwan and Hainan could be due to multiple origins instead of rapid speciation from single lineages (i.e., radiation). Furthermore, the formation time of Taiwan and Hainan was younger (since the Pliocene) than the formation of the landmass of Sundaland, i.e., Borneo (since at least the end of the Jurassic, Cracraft 1988), and the area of those two subtropical islands was also much more smaller than the landmass of Sundaland. These factors led to fewer species (or taxa) in Taiwan (16 spp.) and Hainan (24 spp.) than in Borneo (73 spp.) (Huang et al. 1999; Liao 1996; Soepadmo 1972). However, the endemism in Taiwan (8/16) was larger than in Borneo (23/73), other tropical islands (Hainan: 6/24, Philippines: 13/32, Sumatra: 4/33, Java: 4/17, Sulawesi: 0/4), and the Malay Peninsula (8/48) (Soepadmo 1972). Diversity of stone oaks in the Greater Sunda Islands was thought to be a consequence of prolonged in situ diversification (Cannon and Manos 2003) and is supported by our biogeographic analysis (Fig. 5, Additional file 1: Figures S2–S4), while the rapidity of speciation seems lower than the multiple-source colonization over a short span in Taiwan. The short distance between Taiwan and China (180 km on average) and the shallow continental shelf of the Taiwan Strait (100 m depth on average) joined to continental Asia repeatedly during glacial epochs, and led to multiple colonization between China and Taiwan, which resulted in periodic dispersal and isolation between species congeners (compared to Hainan Island: 18 km from China, 44 m depth in the Qiongzhou Strait, which reduced the isolation effect). The synergy of genetic isolation and adaptation to the rugged topography could have accelerated the speciation process (Bittkau and Comes 2005), which could be the cause of high endemism of Taiwanese stone oaks. In Taiwan, Lithocarpus species are highly diverged, with 14 species recognized and 7 species as endemic (L. formosana, L. dodonaeifolius, L. shinsiensis, L. nantoensis, L. konishii, L. kawakamii, and L. lepidocarpus) (Yang et al. 2014) usually in central and southern parts of the island, mixing with other species of Fagaceae, Lauraceae and coniferous forests at altitudes of 150–2700 m. Ecologically, seven species usually grow on wind-facing slopes in tropical or subtropical forests (Yang et al. 2014).

Temporal change in diversification rate of Asian stone oaks

Both topological (Table 1) and temporal analyses (Fig. 4) of diversification rates suggest that Lithocarpus species were slowly accumulated and formed persistent lineages through time, supporting Thorne’s (1999) theory that East Asia serves as a living museum (refugium) to preserve archaic flora (cf. Favre et al. 2016). Such temporal increases in the synchronous diversification rate in subtropical and tropical lineages indicates that (1) the southward founder event did not accelerate the diversification rate and (2) the diversification rate shift of Asian stone oaks was spatially independent. Since the species composition and climate differ between the subtropics and tropics, the congruent patterns of diversification rates of stone oaks in these two areas suggest that the evolution of Lithocarpus may fit the stochastic model of ecological drift (Benedetti-Cecchi et al. 2008) rather than the ecological opportunity model (Yoder et al. 2010). The ecological opportunity theory posits an increased rate of morphological or species diversification due to a reduction in interspecific competitive pressures (i.e., ecological release) when novel habitats were colonized. In contrast, under the stochastic model, species assemblages in an environment are the consequence of random variation in the fundamental biological processes of birth, death, and migration (Bell 2000), in which environmental heterogeneity is not responsible for species diversity (Maurer and McGill 2004). One of the characteristics of the ecological opportunity theory is adaptive radiation (Losos and Mahler 2010; Yoder et al. 2010). Species that meet the ecological opportunity model have shorter life histories and are more sensitive to environmental changes—e.g., birds (Norman and Christidis 2016; Schweizer et al. 2014), fishes (Arbour and Lopez-Fernandez 2016; Silva et al. 2016), ferns (Sundue et al. 2015), and Gentianaceae (von Hagen and Kadereit 2003). Stone oaks with longer life histories could not instantaneously respond to environmental variations spatially, but in the long process of time, diversity could accumulate from different archaic sources (refugia). Such a “living museum” model of the diversification patterns of genus Lithocarpus could be explained by the hypothesis of multiple origins with in situ diversification of insular species.


The diversification of Asian stone oaks is related to dispersal events in association with past climatic changes. The diversification rate heterogeneity across phylogenetic trees instead of punctuated rate shifts across clades signifies that the diversification events were related to global geohistory rather than episodic local events. Based on the coalescent species tree inferred by nuclear and chloroplast genome markers, we propose to revise the former hypothesis of a tropical origin to a subtropical origin and modify the vicariance hypothesis to one of dispersal with variance for explaining the in situ diversification of tropical stone oaks. The boundaries of geological times (i.e., the Oligocene–Miocene, Miocene-Pliocene, and Pliocene–Pleistocene) and the occurrence of drastic climate changes during the Middle-Miocene matched perfectly with the diversification rate shifts in Lithocarpus. Such drastic climatic changes at chronological times which led to restricted gene flow within continents might have accelerated species divergence and promoted diversification. The genus Lithocarpus serves as a good model for tropical-subtropical forest trees in reflecting environmental changes. Furthermore, our results suggest multiple origins of the newly originated indigenous species on subtropical continental islands, leading to high levels of insular biodiversity. An excess of high frequency endemics on Taiwan Island suggests the synergistic consequences of adaptive divergence and experienced secondary contacts between (isolated) specific congeners. However, we still need genomic data from a larger population to test the hypothesis of adaptive-divergence-driven in situ diversification.






Miocene climatic optimum


cetyl trimethylammonium bromide


polymerase chain reaction


nuclear ribosomal internal transcribed spacer




reversible jump Markov chain Monte Carlo


general-time-reversible substitution model


uncorrelated lognormal


Authors’ contributions

CYC and PCL conceived the idea and designed the project. CKY, BHH, LPJ, and PCL collect plant materials. CYC, BHH and PCL conducted data cleaning and data analysis. CKY, CYC, BHH, and PCL wrote the manuscript. All authors read and approved the final manuscript.


The authors deeply appreciate Dr. Shih-Ying Hwang’s suggestions and Xue-Jun Ge, Wei-Bang Sun, Xun Gong, and Shuguang Jian’s sampling assistance. The authors also thank Yu-Chi Chen for her experimental assistance. Our gratitude also goes to the Academic Paper Editing Clinic, NTNU and Dr. Jennifer Jones for English editing. This research was financially supported by the Ministry of Science and Technology, Taiwan (MOST 105-2628-B-003 -002 -MY3) (to P-CL).

Competing interests

The authors declare they have no competing interests.

Availability of data and materials

All sequences were deposited in the NCBI nucleotide sequence database under the following accession numbers: KF992718–KF992796 (atpB-rbcL) and KJ685163–KJ685212 (nrITS).

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not applicable.


Supported by the Ministry of Science and Technology, Taiwan (MOST 105-2628-B-003 -002 -MY3) (to P-CL).

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (, which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

Department of Life Science, National Taiwan Normal University, 88, Ting-Chow Rd, Sec 4, Taipei, 116, Taiwan
The Experimental Forest, College of Bio-Resources and Agriculture, National Taiwan University, 12, Sec. 1, Chien-Shan Rd., Nantou, 55750, Taiwan
Department of Biological Sciences, National Sun Yat-sen University, 70, Lien-Hai Rd., Kaohsiung, 80424, Taiwan
Botanical Garden Division, Taiwan Forestry Research Institute, 53, Nan-Hai Rd., Taipei, 10066, Taiwan


  1. Aizawa M, Yoshimaruth H, Saito H, Katsuki T, Kawahara T, Kitamura K, Shi F, Kaji M (2007) Phylogeography of a northeast Asian spruce, Picea jezoensis, inferred from genetic variation observed in organelle DNA markers. Mol Ecol 16:3393–3405PubMedView ArticleGoogle Scholar
  2. Alexeeva NV, Erbajeva MA (2005) Changes in the fossil mammal faunas of Western Transbaikalia during the Pliocene-Pleistocene boundary and the Early-Middle Pleistocene transition. Quatern Int 131:109–115View ArticleGoogle Scholar
  3. Arbour JH, Lopez-Fernandez H (2016) Continental cichlid radiations: functional diversity reveals the role of changing ecological opportunity in the Neotropics. Proc R Soc B Biol, Sci, p 283Google Scholar
  4. Atkins H, Preston J, Cronk QCB (2001) A molecular test of Huxley’s line: Cyrtandra (Gesneriaceae) in Borneo and the Philippines. Biol J Linn Soc 72:143–159Google Scholar
  5. Bell G (2000) The distribution of abundance in neutral communities. Am Nat 155:606–617PubMedView ArticleGoogle Scholar
  6. Benedetti-Cecchi L, Bertocci I, Vaselli S, Maggi E, Bulleri F (2008) Neutrality and the response of rare species to environmental variance. PLoS ONE 3:e2777PubMedPubMed CentralView ArticleGoogle Scholar
  7. Bittkau C, Comes HP (2005) Evolutionary processes in a continental island system: molecular phylogeography of the Aegean Nigella arvensis alliance (Ranunculaceae) inferred from chloroplast DNA. Mol Ecol 14:4065–4083PubMedView ArticleGoogle Scholar
  8. Cannon CH, Manos PS (2003) Phylogeography of the Southeast Asian stone oaks (Lithocarpus). J Biogeogr 30:211–226View ArticleGoogle Scholar
  9. Chan KMA, Moore BR (2002) Whole-tree methods for detecting differential diversification rates. Syst Biol 51:855–865PubMedView ArticleGoogle Scholar
  10. Cheng YP, Hwang SY, Lin TP (2005) Potential refugia in Taiwan revealed by the phylogeographical study of Castanopsis carlesii Hayata (Fagaceae). Mol Ecol 14:2075–2085PubMedView ArticlePubMed CentralGoogle Scholar
  11. Chi W-R, Namson J, Suppe J (1981) Stratigraphic record of plate interactions in the Coastal Range of eastern Taiwan. Mem Geol Soc China 4:155–194Google Scholar
  12. Chiang TY, Schaal BA (2006) Phylogeography of plants in Taiwan and the Ryukyu archipelago. Taxon 55:31–41View ArticleGoogle Scholar
  13. Chiang YC, Hung KH, Schaal BA, Gest XJ, Hsu TW, Chiang TY (2006) Contrasting phylogeographical patterns between mainland and island taxa of the Pinus luchuensis complex. Mol Ecol 15:765–779PubMedView ArticleGoogle Scholar
  14. Chiang YC, Huang BH, Liao PC (2012) Diversification, biogeographic pattern, and demographic history of Taiwanese Scutellaria species inferred from nuclear and chloroplast DNA. PLoS ONE 7:e50844PubMedPubMed CentralView ArticleGoogle Scholar
  15. Chung JD, Lin TP, Tan YC, Lin MY, Hwang SY (2004) Genetic diversity and biogeography of Cunninghamia konishii (Cupressaceae), an island species in Taiwan: a comparison with Cunninghamia lanceolata, a mainland species in China. Mol Phylogen Evol 33:791–801View ArticleGoogle Scholar
  16. Chung JD, Lin TP, Chen YL, Cheng YP, Hwang SY (2007) Phylogeographic study reveals the origin and evolutionary history of a Rhododendron species complex in Taiwan. Mol Phylogen Evol 42:14–24View ArticleGoogle Scholar
  17. Cracraft J (1988) From Malaysia to New Guinea: evolutionary biogeography within a complex continent-island arc contact zone. In: Ouellet H (ed) 19 Congressus Internationalis Ornithologici, 2581-2593. National Museum of Natural Sciences by University of Ottawa Press, Ottawa, pp 2581–2593Google Scholar
  18. Crepet WL, Nixon KC (1989) Earliest megafossil evidence of Fagaceae: phylogenetic and biogeographic implications. Am J Bot 76:842–855View ArticleGoogle Scholar
  19. Donoghue MJ, Bell CD, Li JH (2001) Phylogenetic patterns in Northern Hemisphere plant geography. Int J Plant Sci 162:S41–S52View ArticleGoogle Scholar
  20. Doyle J, Doyle J (1987) Genomic plant DNA preparation from fresh tissue-CTAB method. Phytochem Bull 19:11–15Google Scholar
  21. Drummond AJ, Rambaut A (2007) BEAST: bayesian evolutionary analysis by sampling trees. BMC Evol Biol 7:214PubMedPubMed CentralView ArticleGoogle Scholar
  22. Dynesius M, Jansson R (2000) Evolutionary consequences of changes in species’ geographical distributions driven by Milankovitch climate oscillations. Proc Natl Acad Sci USA 97:9115–9120PubMedView ArticlePubMed CentralGoogle Scholar
  23. Ennos RA (1994) Estimating the relative rates of pollen and seed migration among plant populations. Heredity 72:250–259View ArticleGoogle Scholar
  24. Favre A, Michalak I, Chen CH, Wang JC, Pringle JS, Matuszak S, Sun H, Yuan YM, Struwe L, Muellner-Riehl AN (2016) Out-of-Tibet: the spatio-temporal evolution of Gentiana (Gentianaceae). J Biogeogr 43:1967–1978View ArticleGoogle Scholar
  25. Fu CX, Qiu YX, Guan BC, Comes HP (2009) Did glacials and/or interglacials promote allopatric incipient speciation in East Asian temperate plants? Phylogeographic and coalescent analyses on refugial isolation and divergence in Dysosma versipellis. Mol Phylogen Evol 51:281–293View ArticleGoogle Scholar
  26. Gavrilets S, Losos JB (2009) Adaptive radiation: contrasting theory with data. Science 323:732–737PubMedView ArticlePubMed CentralGoogle Scholar
  27. Ge XJ, Hsu TW, Hung KH, Lin CJ, Huang CC, Huang CC, Chiang YC, Chiang TY (2012) Inferring multiple refugia and phylogeographical patterns in Pinus massoniana based on nucleotide sequence variation and DNA fingerprinting. PLoS ONE 7:e43717PubMedPubMed CentralView ArticleGoogle Scholar
  28. Gorog AJ, Sinaga MH, Engstrom MD (2004) Vicariance or dispersal? Historical biogeography of three Sunda shelf murine rodents (Maxomys surifer, Leopoldamys sabanus and Maxomys whiteheadi). Biol J Linn Soc 81:91–109View ArticleGoogle Scholar
  29. Graham MH, Dayton PK, Erlandson JM (2003) Ice ages and ecological transitions on temperate coasts. Trends Ecol Evol 18:33–40View ArticleGoogle Scholar
  30. Hall TA (1999) BioEdit: a user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Symp Ser 41:95–98Google Scholar
  31. Hall R (2002) Cenozoic geological and plate tectonic evolution of SE Asia and the SW Pacific: computer-based reconstructions, model and animations. J Asian Earth Sci 20:353–431View ArticleGoogle Scholar
  32. Heled J, Drummond AJ (2010) Bayesian inference of species trees from multilocus data. Mol Biol Evol 27:570–580View ArticleGoogle Scholar
  33. Hewitt GM (2004) Genetic consequences of climatic oscillations in the Quaternary. Philos T Roy Soc B 359:183–195View ArticleGoogle Scholar
  34. Hodell DA, Kennett JP (1986) Late Miocene-Early Pliocene stratigraphy and paleoceanography of the South Atlantic and southwest Pacific Oceans: a synthesis. Paleoceanography 1:285–311View ArticleGoogle Scholar
  35. Hoelzer GA (1997) Inferring phylogenies from mtDNA variation: mitochondrial-gene trees versus nuclear-gene trees revisited. Evolution 51:622–626PubMedView ArticlePubMed CentralGoogle Scholar
  36. Holbourn A, Kuhnt W, Schulz M, Erlenkeuser H (2005) Impacts of orbital forcing and atmospheric carbon dioxide on Miocene ice-sheet expansion. Nature 438:483–487PubMedView ArticlePubMed CentralGoogle Scholar
  37. Hollingsworth PM, Graham SW, Little DP (2011) Choosing and using a plant DNA barcode. PLoS ONE 6:e19254PubMedPubMed CentralView ArticleGoogle Scholar
  38. Huang C, Zhang Y, Bruce B (1999) Fagaceae Flora of China, vol 4, pp 314–400. Accessed 28 Oct 2018
  39. Klaus S, Selvandran S, Goh JW, Wowor D, Brandis D, Koller P, Schubart CD, Streit B, Meier R, Ng PKL, Yeo DCJ (2013) Out of Borneo: neogene diversification of Sundaic freshwater crabs (Crustacea: Brachyura: Gecarcinucidae: Parathelphusa). J Biogeogr 40:63–74View ArticleGoogle Scholar
  40. Kurschner WM, Kvacek Z, Dilcher DL (2008) The impact of Miocene atmospheric carbon dioxide fluctuations on climate and the evolution of terrestrial ecosystems. Proc Natl Acad Sci USA 105:449–453PubMedView ArticleGoogle Scholar
  41. Kvaček Z, Walther H (1989) Paleobotanical studies in Fagaceae of the European Tertiary. Plant Syst Evol 162:213–229View ArticleGoogle Scholar
  42. Liao JC (1996) Fagaceae. In: Boufford DE, Hsieh CF, Huang TC, Ohashi H, Yang YP, Lu SY (eds) Flora of Taiwan, vol 2, 2nd edn. Editorial Committee of the Flora of Taiwan, Department of Botany, National Taiwan University, Taipei, pp 51–123Google Scholar
  43. Liao PC, Hwang SY, Huang S, Chiang YC, Wang JC (2011) Contrasting demographic patterns of Ceriops tagal (Rhizophoraceae) populations in the South China Sea. Aust J Bot 59:523–532View ArticleGoogle Scholar
  44. Liu L, Eronen JT, Fortelius M (2009) Significant mid-latitude aridity in the middle Miocene of East Asia. Palaeogeogr., Palaeoclimatol. Palaeoecol 279:201–206View ArticleGoogle Scholar
  45. Lohman DJ, de Bruyn M, Page T, von Rintelen K, Hal R, Ng PKL, Shih HT, Carvalho GR, von Rintelen T (2011) Biogeography of the Indo-Australian Archipelago. Annu Rev Ecol Evol S 42:205–226View ArticleGoogle Scholar
  46. Losos JB, Mahler DL (2010) Adaptive radiation: The interaction of ecological opportunity, adaptation, and speciation. In: Bell MA, Futuyma DJ, Eanes WF, Levinton JS (eds) Evolution Since Darwin: The First 150 Years. Sinauer Associates Inc, Sunderland, pp 381–420Google Scholar
  47. Manos PS, Stanford AM (2001) The historical biogeography of Fagaceae: tracking the tertiary history of temperate and subtropical forests of the Northern Hemisphere. Int J Plant Sci 162:S77–S93View ArticleGoogle Scholar
  48. Manos PS, Zhou ZK, Cannon CH (2001) Systematics of Fagaceae: phylogenetic tests of reproductive trait evolution. Int J Plant Sci 162:1361–1379View ArticleGoogle Scholar
  49. Manos PS, Cannon CH, Oh S-H (2008) Phylogenetic relationships and taxonomic status of the paleoendemic Fagaceae of western North America: recognition af a new genus, Notholithocarpus. Madrono 55:181–190View ArticleGoogle Scholar
  50. Matzke NJ (2014) Model selection in historical biogeography reveals that founder-event speciation is a crucial process in island clades. Syst Biol 63:951–970PubMedView ArticleGoogle Scholar
  51. Maurer BA, McGill BJ (2004) Neutral and non-neutral macroecology. Basic Appl Ecol 5:413–422View ArticleGoogle Scholar
  52. Mccauley DE (1995) The use of chloroplast DNA polymorphism in studies of gene flow in plants. Trends Ecol Evol 10:198–202PubMedView ArticlePubMed CentralGoogle Scholar
  53. Millien-Parra V, Jaeger JJ (1999) Island biogeography of the Japanese terrestrial mammal assemblages: an example of a relict fauna. J Biogeogr 26:959–972View ArticleGoogle Scholar
  54. Mitsui Y, Setoguchi H (2012) Recent origin and adaptive diversification of Ainsliaea (Asteraceae) in the Ryukyu Islands: molecular phylogenetic inference using nuclear microsatellite markers. Plant Syst Evol 298:985–996View ArticleGoogle Scholar
  55. Moore BR, Chan KMA (2005) SymmeTREE: whole-tree analysis of differential diversification rates. Bioinformatics 21:1709–1710PubMedView ArticlePubMed CentralGoogle Scholar
  56. Moore BR, Chan KMA, Donoghue MJ (2004) Detecting diversification rate variation in supertrees. In: Bininda-Emonds ORP (ed) Phylogenetic supertrees: combining information to reveal the tree of life. The Netherlands Kluwer Academic, Dordrecht, pp 487–533View ArticleGoogle Scholar
  57. Nakamura K, Denda T, Kokubugata G, Forster PI, Wilson G, Peng CI, Yokota M (2012) Molecular phylogeography reveals an antitropical distribution and local diversification of Solenogyne (Asteraceae) in the Ryukyu Archipelago of Japan and Australia. Biol J Linn Soc 105:197–217View ArticleGoogle Scholar
  58. Nixon KC (1989) Origins of Fagaceae. In: Crane PR, Blackmore S (eds) Evolution systematics and fossil history of the Hamamelidae: higher Hamamelidae, vol 2. Clarendon, Oxford, pp 436–506Google Scholar
  59. Norman JA, Christidis L (2016) Ecological opportunity and the evolution of habitat preferences in an arid-zone bird: implications for speciation in a climate-modified landscape. Sci Rep 6:19613PubMedPubMed CentralView ArticleGoogle Scholar
  60. Nyman T, Linder HP, Pena C, Malm T, Wahlberg N (2012) Climate-driven diversity dynamics in plants and plant-feeding insects. Ecol Lett 15:889–898PubMedView ArticleGoogle Scholar
  61. Oh S-H, Manos PS (2008) Molecular phylogenetics and cupule evolution in Fagaceae as inferred from nuclear CRABS CLAW sequences. Taxon 57:434–451Google Scholar
  62. Opgen-Rhein R, Fahrmeir L, Strimmer K (2005) Inference of demographic history from genealogical trees using reversible jump Markov chain Monte Carlo. BMC Evol Biol 5:6PubMedPubMed CentralView ArticleGoogle Scholar
  63. Page RDM, Charleston MA (1998) Trees within trees: phylogeny and historical associations. Trends Ecol Evol 13:356–359PubMedView ArticlePubMed CentralGoogle Scholar
  64. Paradis E, Claude J, Strimmer K (2004) APE: analyses of phylogenetics and evolution in R language. Bioinformatics 20:289–290View ArticleGoogle Scholar
  65. Petit RJ, Brewer S, Bordacs S, Burg K, Cheddadi R, Coart E, Cottrell J, Csaikl UM, van Dam B, Deans JD, Espinel S, Fineschi S, Finkeldey R, Glaz I, Goicoechea PG, Jensen JS, Konig AO, Lowe AJ, Madsen SF, Matyas G, Munro RC, Popescu F, Slade D, Tabbener H, de Vries SGM, Ziegenhagen B, de Beaulieu JL, Kremer A (2002a) Identification of refugia and post-glacial colonisation routes of European white oaks based on chloroplast DNA and fossil pollen evidence. For Ecol Manage 156:49–74View ArticleGoogle Scholar
  66. Petit RJ, Csaikl UM, Bordacs S, Burg K, Coart E, Cottrell J, van Dam B, Deans JD, Dumolin-Lapegue S, Fineschi S, Finkeldey R, Gillies A, Glaz I, Goicoechea PG, Jensen JS, Konig AO, Lowe AJ, Madsen SF, Matyas G, Munro RC, Olalde M, Pemonge MH, Popescu F, Slade D, Tabbener H, Taurchini D, de Vries SGM, Ziegenhagen B, Kremer A (2002b) Chloroplast DNA variation in European white oaks—phylogeography and patterns of diversity based on data from over 2600 populations. For Ecol Manage 156:5–26View ArticleGoogle Scholar
  67. Petit RJ, Duminil J, Fineschi S, Hampe A, Salvini D, Vendramin GG (2005) Comparative organization of chloroplast, mitochondrial and nuclear diversity in plant populations. Mol Ecol 14:689–701View ArticleGoogle Scholar
  68. Qiu YX, Fu CX, Comes HP (2011) Plant molecular phylogeography in China and adjacent regions: tracing the genetic imprints of Quaternary climate and environmental change in the world’s most diverse temperate flora. Mol Phylogen Evol 59:225–244View ArticleGoogle Scholar
  69. Rabosky DL (2006) Likelihood methods for detecting temporal shifts in diversification rates. Evolution 60:1152–1164PubMedView ArticlePubMed CentralGoogle Scholar
  70. Rabosky DL, Grundler M, Anderson C, Title P, Shi JJ, Brown JW, Huang H, Larson JG (2014) BAMMtools: an R package for the analysis of evolutionary dynamics on phylogenetic trees. Methods Ecol Evol 5:701–707View ArticleGoogle Scholar
  71. Rambaut A (2008). FigTree ver. 1.3.1. Institute of Evolutionary Biology, University of Edinburgh, Edinburgh. Accessed 28 Oct 2018
  72. Rambaut A, Drummond AJ (2003) Tracer ver. 1.4.1. Institute of Evolutionary Biology, University of Edinburgh, Edinburgh. Accessed 28 Oct 2018
  73. Ricklefs RE (2007) Estimating diversification rates from phylogenetic information. Trends Ecol Evol 22:601–610PubMedView ArticleGoogle Scholar
  74. Schweizer M, Hertwig ST, Seehausen O (2014) Diversity versus disparity and the role of ecological opportunity in a continental bird radiation. J Biogeogr 41:1301–1312View ArticleGoogle Scholar
  75. Scotese CR (2014) Atlas of neogene paleogeographic maps (Mollweide projection), Maps 1–7, vol 1, The Cenoaoic, PALEOMAP Atlas for ArcGIS, PALEOMAP Project, Evanston, IllinoisGoogle Scholar
  76. Silva GSC, Roxo FF, Lujan NK, Tagliacollo VA, Zawadzki CH, Oliveira C (2016) Transcontinental dispersal, ecological opportunity and origins of an adaptive radiation in the Neotropical catfish genus Hypostomus (Siluriformes: Loricariidae). Mol Ecol 25:1511–1529PubMedView ArticleGoogle Scholar
  77. Soepadmo E (1972) Fagaceae. In: van Steenis CGGJ (ed) Flora Malesiana, vol 7. Noordhoff International Publishing, Leyden, pp 265–403Google Scholar
  78. Sundue MA, Testo WL, Ranker TA (2015) Morphological innovation, ecological opportunity, and the radiation of a major vascular epiphyte lineage. Evolution 69:2482–2495PubMedView ArticleGoogle Scholar
  79. Susilohadi S, Gaedicke C, Djajadihardja Y (2009) Structures and sedimentary deposition in the Sunda Strait, Indonesia. Tectonophysics 467:55–71View ArticleGoogle Scholar
  80. Teng LS (1996) Extensional collapse of the northern Taiwan mountain belt. Geology 24:949–952View ArticleGoogle Scholar
  81. Thompson JD, Gibson TJ, Plewniak F, Jeanmougin F, Higgins DG (1997) The CLUSTAL_X windows interface: flexible strategies for multiple sequence alignment aided by quality analysis tools. Nucleic Acids Res 25:4876–4882PubMedPubMed CentralView ArticleGoogle Scholar
  82. Thorne RF (1999) Eastern Asia as a living museum for archaic angiosperms and other seed plants. Taiwania 44:413–422Google Scholar
  83. von Hagen KB, Kadereit JW (2003) The diversification of Halenia (Gentianaceae): ecological opportunity versus key innovation. Evolution 57:2507–2518View ArticleGoogle Scholar
  84. Wang CS, Huang CP, Ke LY, Chien WJ, Hsu SK, Shyu CT, Cheng WB, Lee CS, Teng LS (2002) Formation of the Taiwan island as a solitary wave along the Eurasian continental plate margin: magnetic and seismological evidence. Terr Atmos Ocean Sci 13:339–354View ArticleGoogle Scholar
  85. Wang JF, Gong X, Chiang YC, Kuroda C (2013) Phylogenetic patterns and disjunct distribution in Ligularia hodgsonii Hook. (Asteraceae). J Biogeogr 40:1741–1754View ArticleGoogle Scholar
  86. Wu SH, Hwang CY, Lin TP, Chung JD, Cheng YP, Hwang SY (2006) Contrasting phylogeographical patterns of two closely related species, Machilus thunbergii and Machilus kusanoi (Lauraceae), in Taiwan. J Biogeogr 33:936–947View ArticleGoogle Scholar
  87. Xing Y, Onstein RE, Carter RJ, Stadler T, Peter Linder H (2014) Fossils and a large molecular phylogeny show that the evolution of species richness, generic diversity, and turnover rates are disconnected. Evolution 68:2821–2832PubMedView ArticleGoogle Scholar
  88. Yang CK, Chiou LR, Chang LF, Wang CC (2014) Fagaceae in Taiwan Forest Bureau. Council of Agriculture, Executive Yuan, TaipeiGoogle Scholar
  89. Yoder JB, Clancey E, Des Roches S, Eastman JM, Gentry L, Godsoe W, Hagey TJ, Jochimsen D, Oswald BP, Robertson J, Sarver BAJ, Schenk JJ, Spear SF, Harmon LJ (2010) Ecological opportunity and the origin of adaptive radiations. J Evol Biol 23:1581–1596PubMedView ArticleGoogle Scholar
  90. Yu Y, Harris AJ, Blair C, He X (2015) RASP (Reconstruct Ancestral State in Phylogenies): a tool for historical biogeography. Mol Phylogen Evol 87:46–49View ArticleGoogle Scholar


© The Author(s) 2018
